Service Manual
AT235
9
2.3.3 Display
To fully release the display from the cabinet,
remove the screw from the rear panel cover
and
the 2 screws on the instrument,
with a cross-point
screwdriver
.
By unlocking the snaps for the display cover,
access is enabled when opening the panel.
Remove the strip of kapton tape and then the
display power cable. The display is now loose from
the device.
NOTICE
The display is attached to the bottom
cabinet, hence removal of the screws on
the bottom cabinet is required before
disassembly of the display is possible.
Please refer to Disassembling the Cabinet
2.3.4 Nice to know
Access to the SD card is possible when removing
the panel and the screw holding it in place.
We highly recommend use of SD card types
authorized by Interacoustics, as we otherwise
cannot guarantee safe storage of the data.
NOTICE
Replacement of the SD card protocol
overwrites present data and user settings.
This, however, does not affect the
calibration of the device.

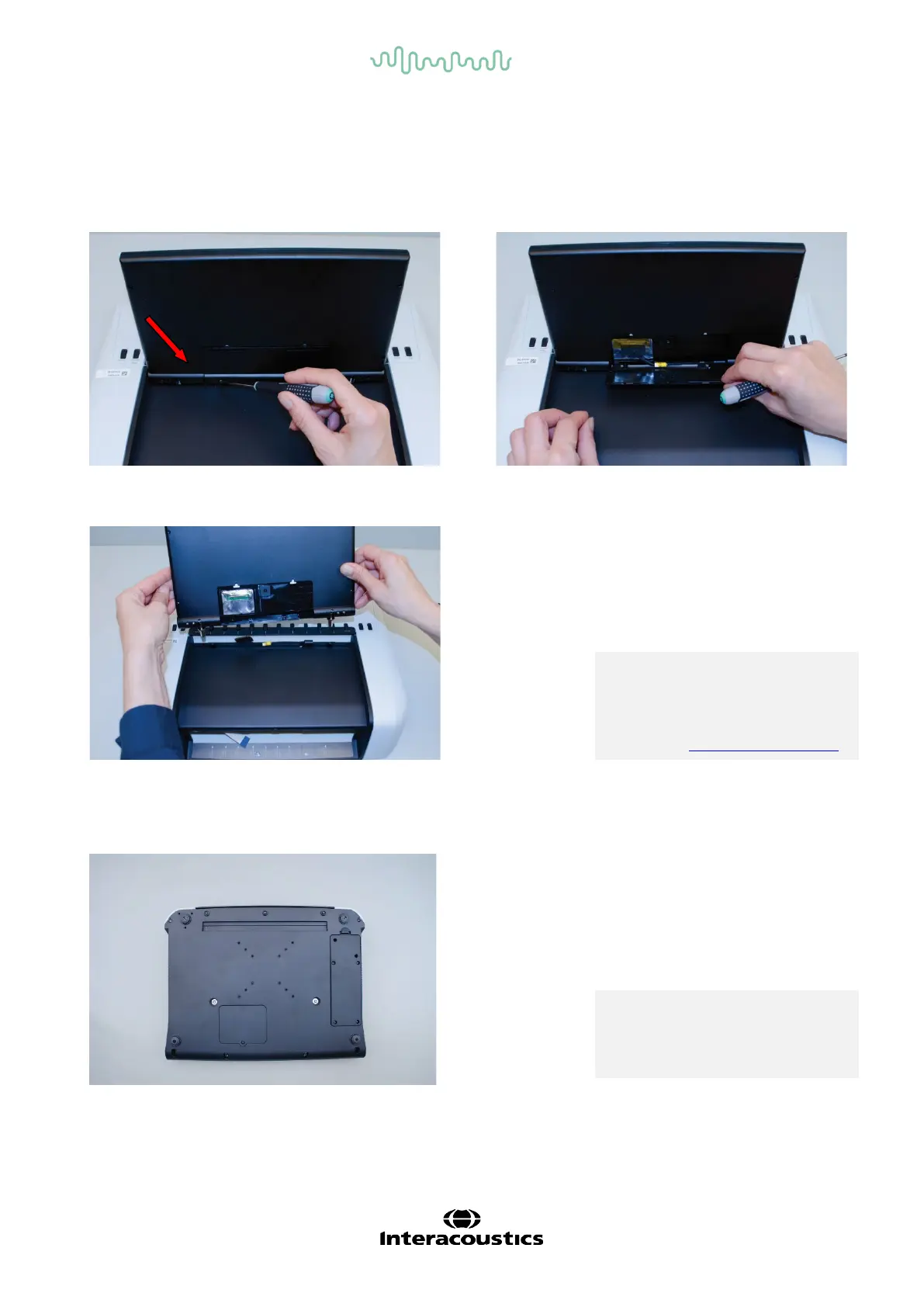

Fig. 24
