Interacoustics AT235 Service Manual

Service Manual
AT235
6

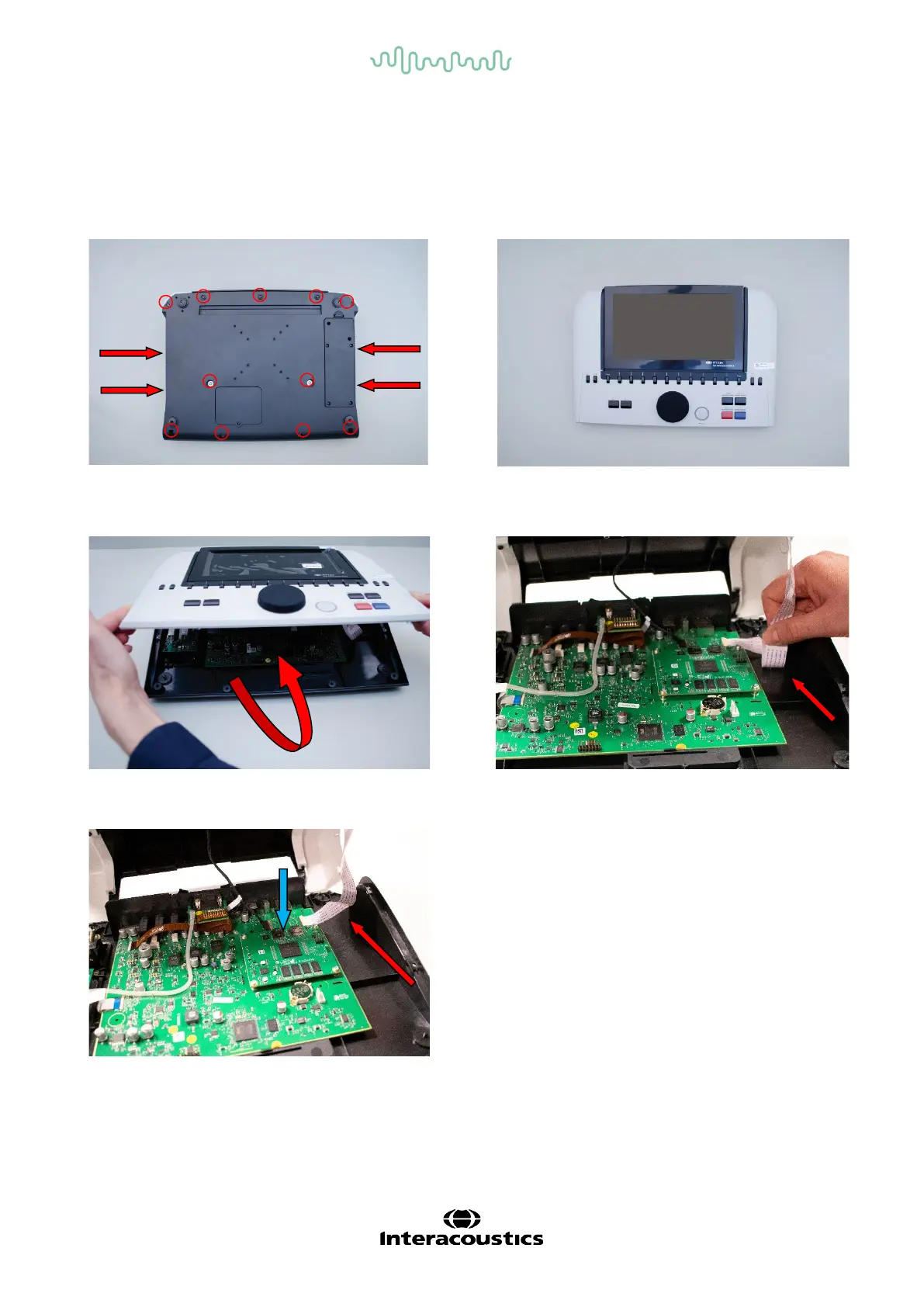

2.3 Disassembling the Cabinet
T
o disassemble the instrument, the top must be
separated from the bottom cabinet
. The
cabinet
s are separated by removing the
indicated screws with a Torx T10
.
The panels are now loose for dismantling the parts.
Be careful whilst separating as the parts are s
till
attached with cables on the inside. Please note that
the screen is not fully attached anymore
.
By tilting the top, the cabinet is open for service.
Carefully
, free the ribbon cable from the cabinet.
After releasing the ribbon cable and the display
cable, the bottom and top
cabinets are separated.
Fig. 16
Fig. 12
Fig. 13
Fig. 14
Fig. 15
