4.1.3 Transducer calibration
Select Transducer calibration to calibrate the transducers.
Select the relevant transducer and follow the on-screen instructions.
Upload defaults can be used when calibrating a new transducer in order to have a slide starting point closer to
target.
Output damping is equal to attenuator settings.

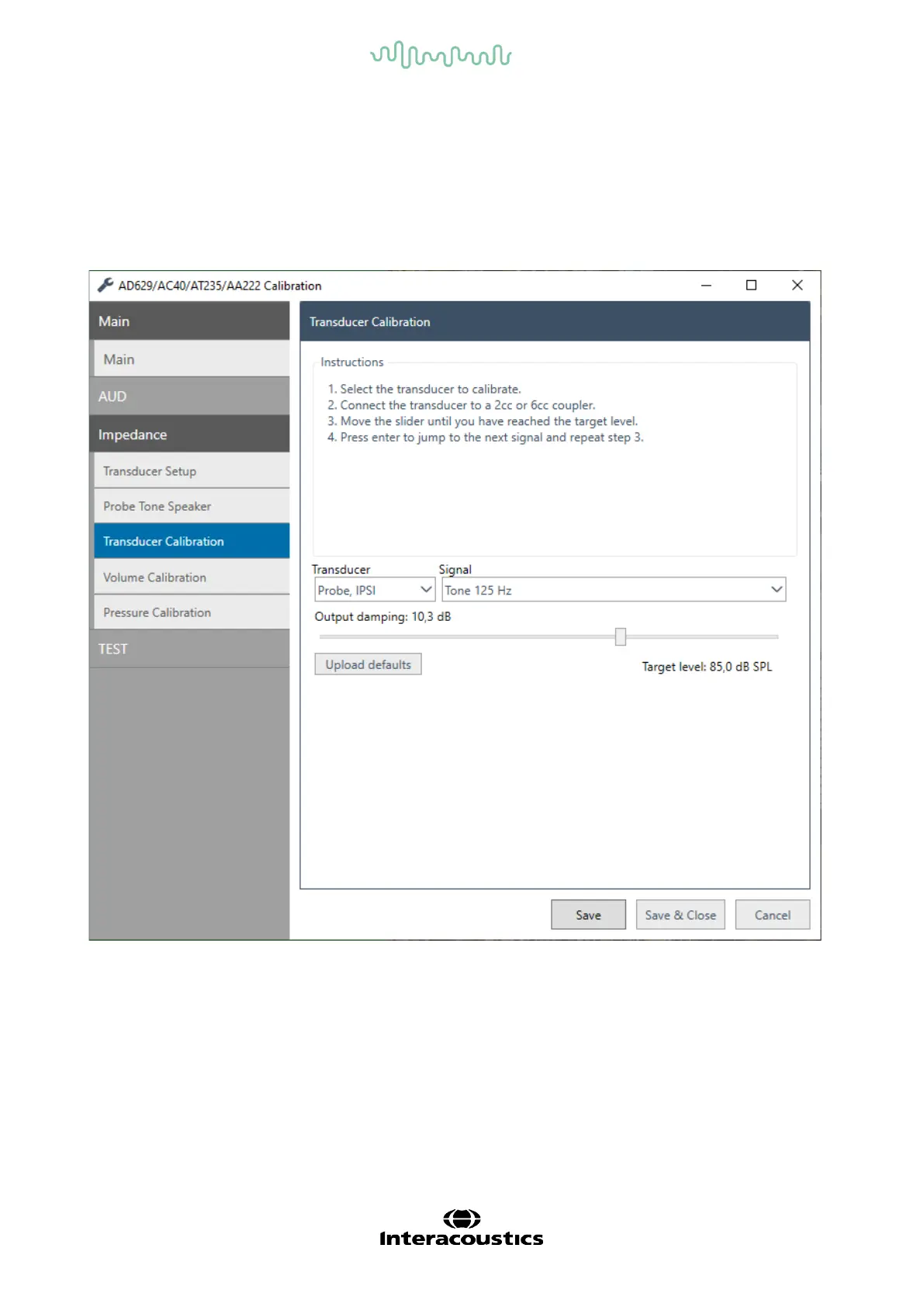

Fig. 32
