AT235
35

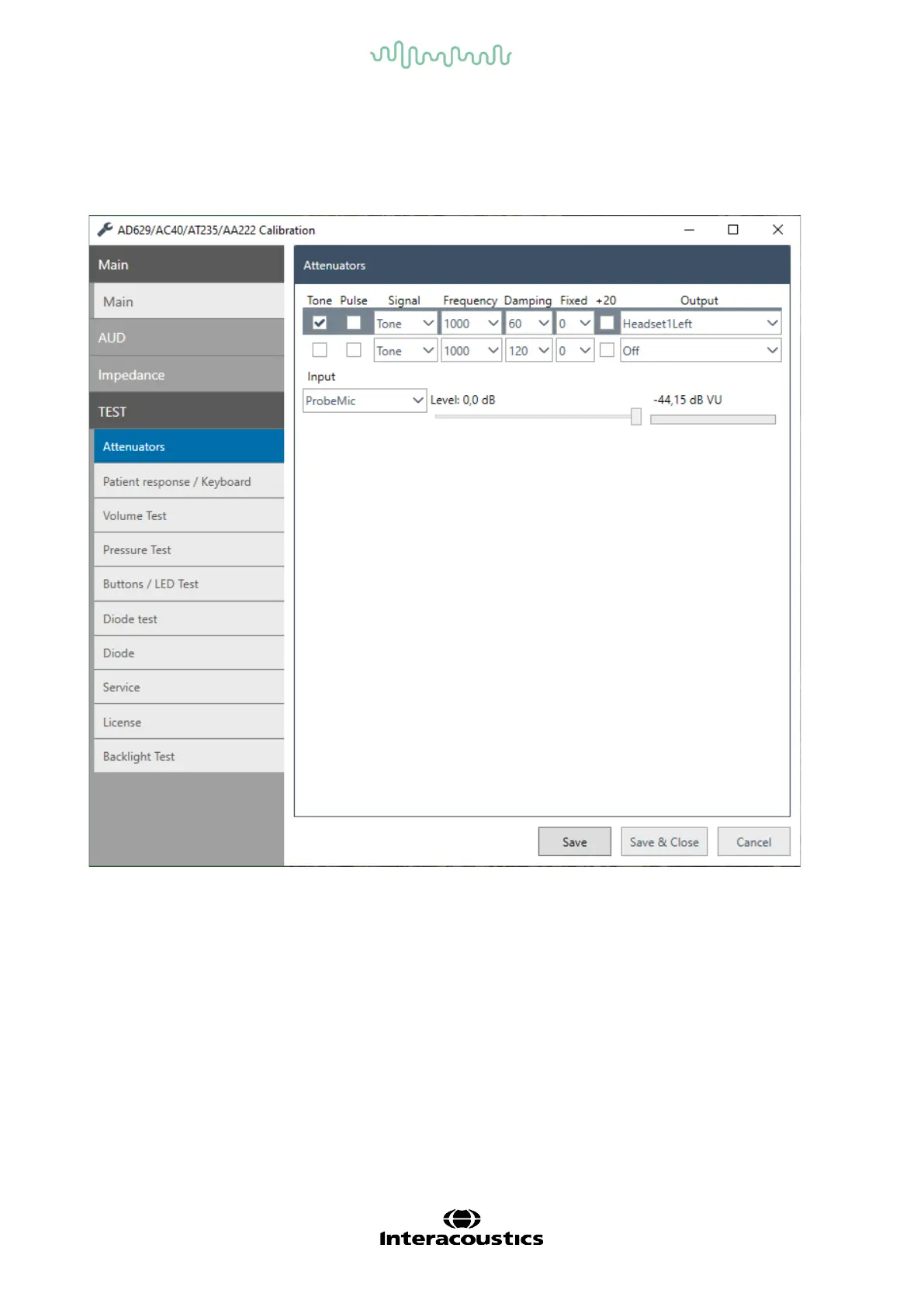

Now check at -60 dB = 3mV ± 0,3 mV
This particular example is measured on the left output.
Fig. 54
Repeat for the second attenuator using the Headset1Right output, making sure that the output corresponds with
the selected.
