Service Manual
AT235
4

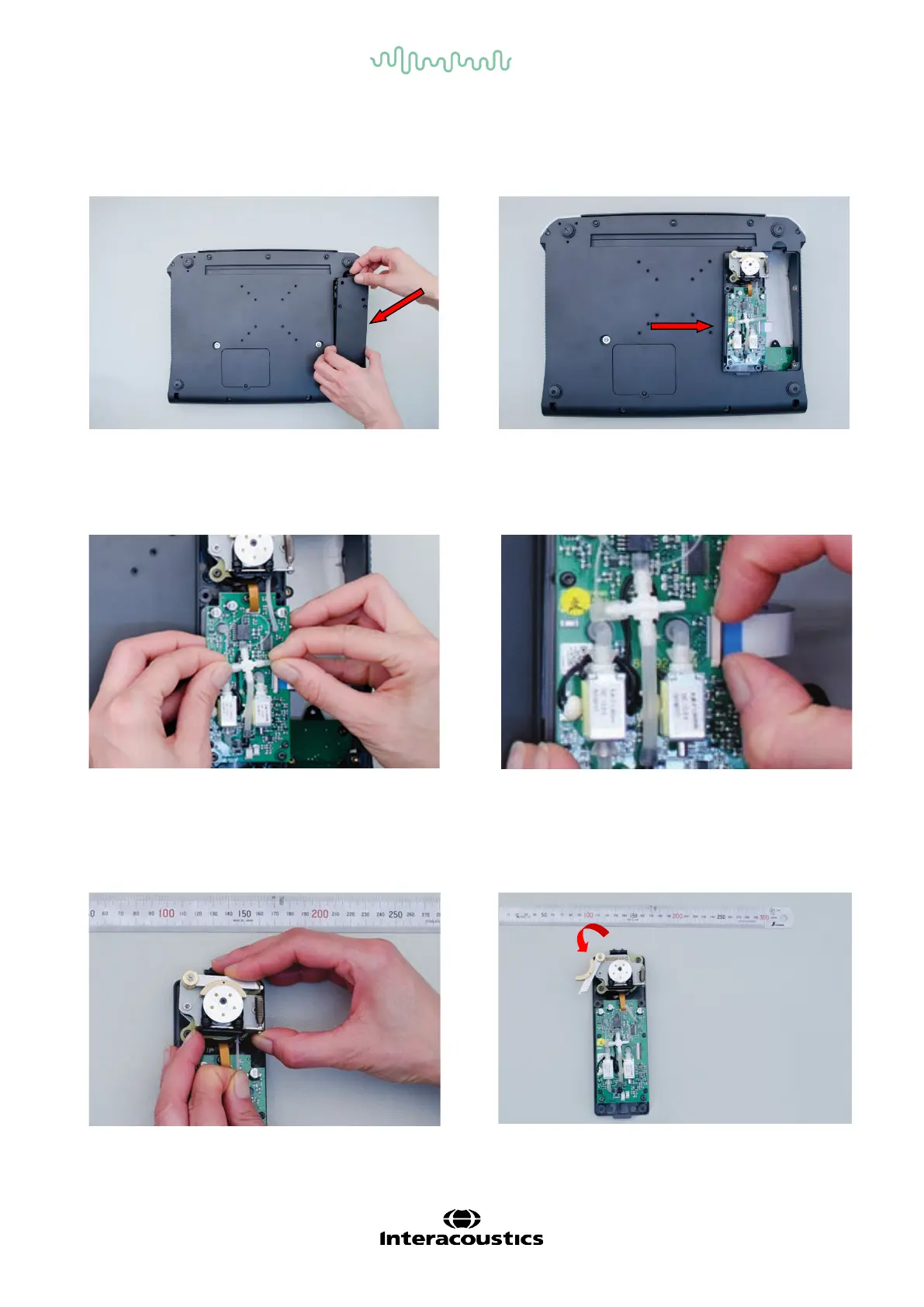

The panel can now be carefully removed by lifting
it up in the top end and releasing the bottom from
its holder.
The pump module which is attached to the access
panel can now be flipped over. Please note that it is
still attached with a cable and a tube.
Releasing the module from the instrument allows
easier access. This is done by carefully releasing
the tube on the right hand side
.
By sliding the black lock to the right allowing release
of the cable, the module is no longer attached to the
instrument
.
The silicone tube is easily removed from the
pump outlet by pulling it apart
gently. Pushing the
p
ump arm slightly, the spring is ready to be
unhooked.
It is now possible to
open the pump arm to the left,
and the module is ready to be de
-attached.
Fig. 7
Fig
. 8
Fig. 3
Fig. 4
Fig. 5
Fig. 6
