Intergas HRE 36/40 - Installation; Overall Dimensions

Intergas Heating Ltd 17
7 INSTALLATION

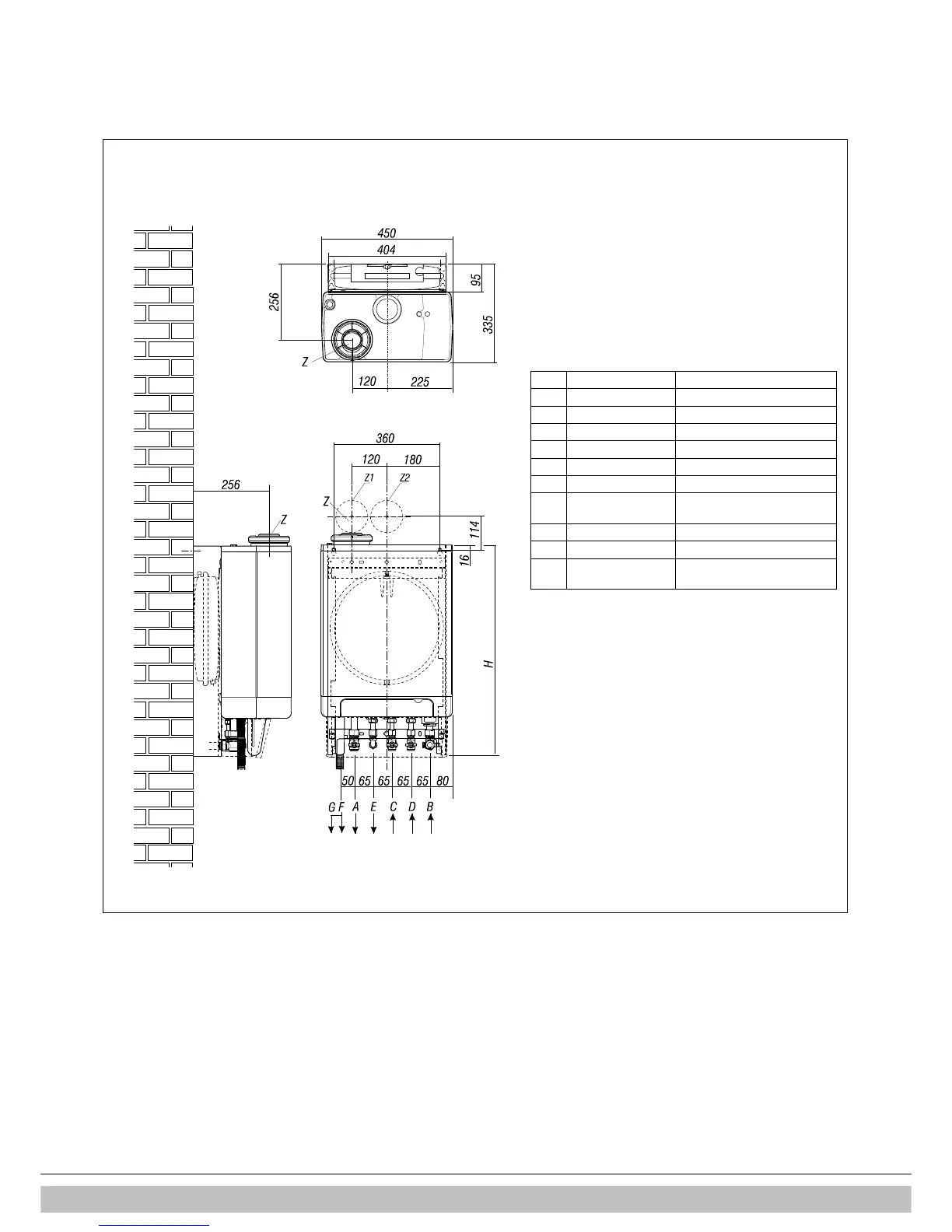

7.1 Overall dimensions
Appliance with CH, DHW and gas connections backwards:
Appliance + wall mounting jig + bracket
A =
Supply CH
Ø22
B =
Return CH
Ø22
C =
Gas
½”
D =
Cold tap water
Ø15
E =
DHW
Ø15
F =
Condensate drain
Ø25 (flexible)
G =
Drain PRV
Ø15
H =
840
Combi Compact HRE 36/30 &
HRE 36/40
H =
780
Combi Compact HRE 28
/24
H =
720
Combi Compact HRE 24/18
Z =
Flue pipe / air
supply
Ø60/100 (concentric)
