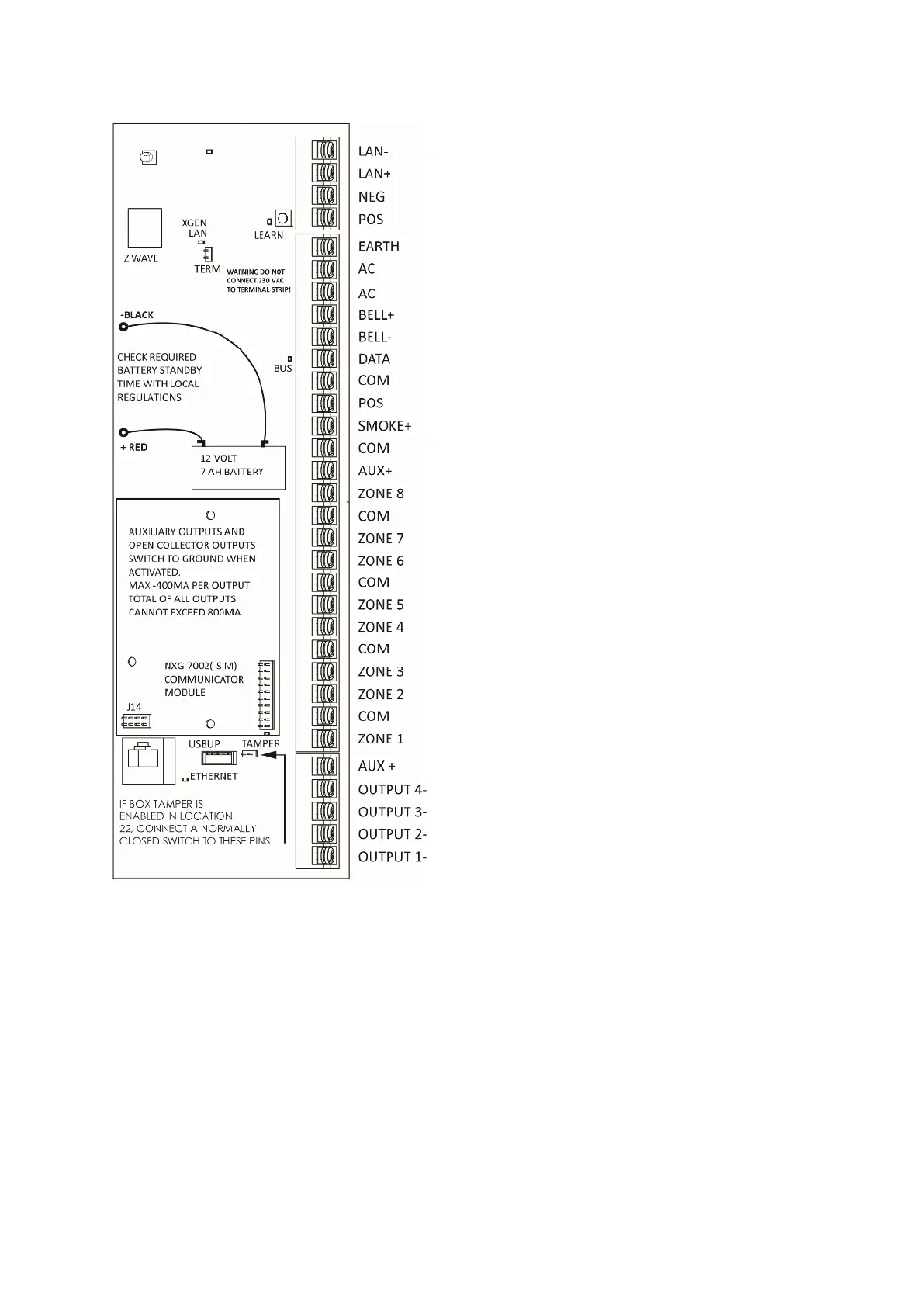

Top to bottom:
D7 LAN: Green LED is lit when connected to
UltraSync, remains off when not
connected to UltraSync.
D4 LEARN: Red LED blinks slowly during auto
enrollment, blinks quickly during manual
enrollment.
D3 BUS: Red LED blinks to indicate xGenLite
bus is available.
D1 ETHERNET: Red LED is lit when Ethernet
cable is connected to WAN port, blinks
when data is sent or received, and is off
when cable is disconnected or J14
connector is removed.
If 4G / WiFi router module is installed,
LED is lit when panel has established
connection to the module, and blinks
when panel is communicating with the
module.
Check “Connection Status” web page to
verify connection to UltraSync.
