Interlogix NXG-8-CB - NXG-9 Wiring Diagram; NXG-9 Terminals; NXG-9 Leds; Detector EOL Wiring

xGen Lite Installation and Programming Guide 17

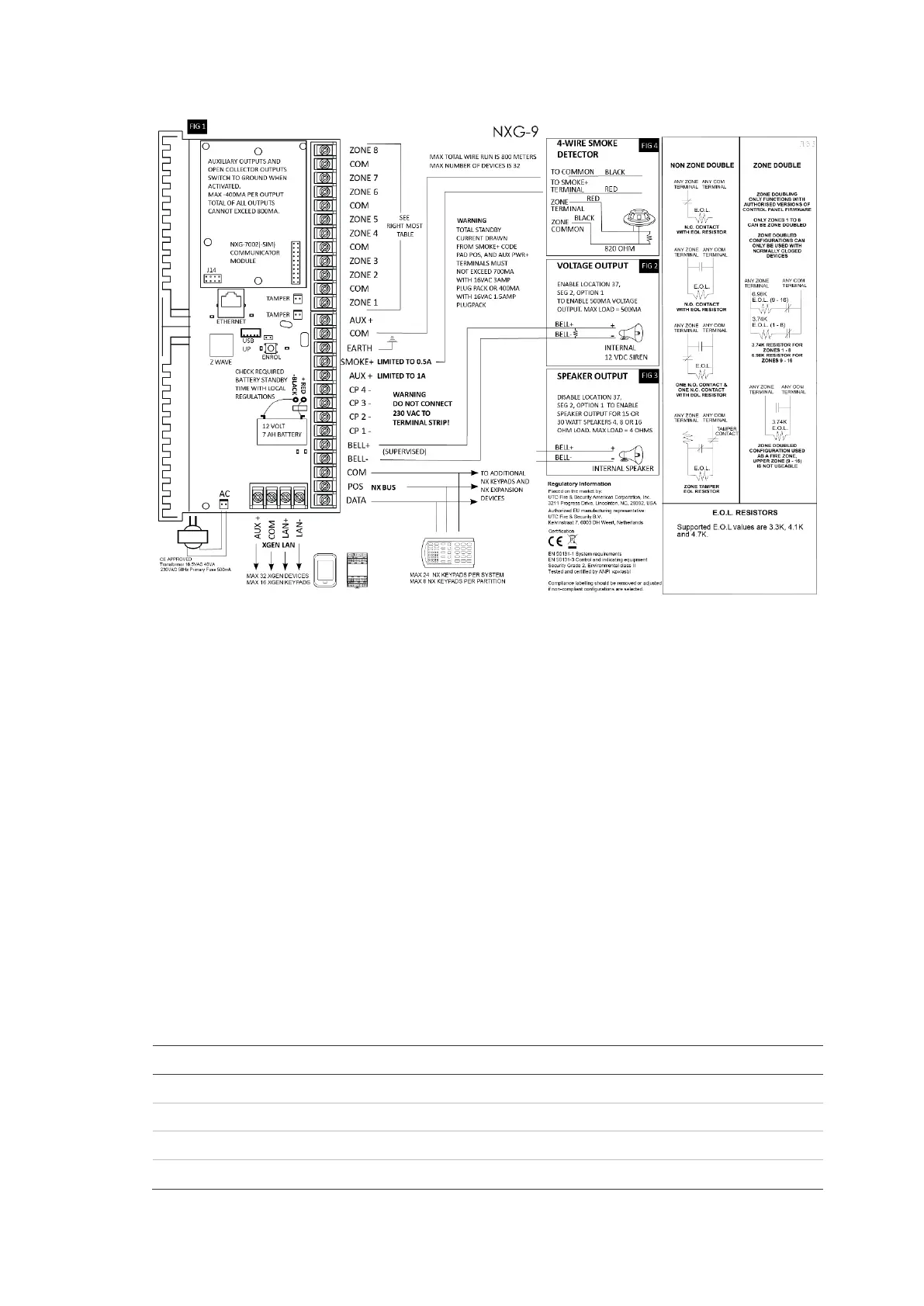

NXG-9 Wiring Diagram
Refer to “NXG-8 Wiring Diagram” on page 14. The NXG-9 unit functionality is the
same the NXG-8 except that the connections are spatially orientated differently.
NXG-9 Terminals
Refer to “NXG-8 Terminals” on page 15. The NXG-9 unit functionality is the same
the NXG-8 except that the connections are spatially orientated differently.
NXG-9 LEDs
Refer to “NXG-8 LEDs” on page 16. The NXG-9 unit functionality is the same the
NXG-8 except that the LEDs are spatially orientated differently.
Detector EOL Wiring
Other than the 3K3 end-of-line resistor support, the xGenLite Grade 2 panels
support the following end-of-line resistor value combinations in ohm (*):
Combination
A
B
C
Tamper (short)
0
0
0
Normal
3.3 kΩ
4.7 kΩ
4.1 kΩ
Alarm
6.6 kΩ
9.4 kΩ
8.2 kΩ
Tamper (open)
∞
∞
∞
