22 TruVision 11/31 Series IP Camera Configuration Manual
To set up the Email parameters:

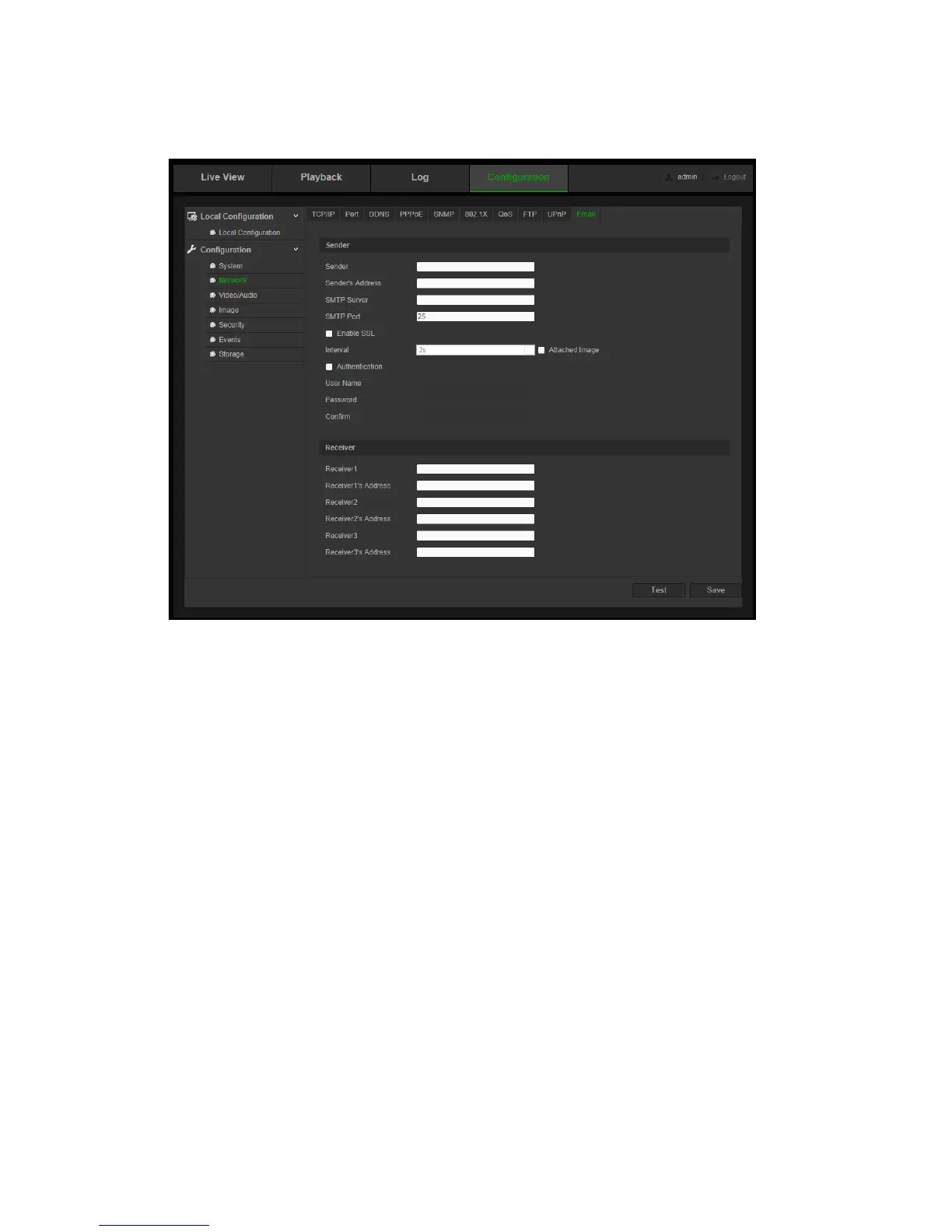

1. Click Configuration > Network > Email.
2. Configure the following settings:
Sender: The name of the email sender.
Sender’s Address: The email address of the sender.
SMTP Server: The SMTP Server IP address or host name.
SMTP Port: The SMTP port. The default is 25.
Enable SSL: Check the checkbox to enable SSL if it is required by the SMTP
server.
Attached Image: Check the checkbox of Attached Image if you want to
send emails with attached alarm images.
Interval: This is the time between two actions of sending attached images.
Authentication: If your email server requires authentication, check this
checkbox to use authentication to log in to this server. Enter the login user
name and password.
User Name: The user name to log in to the server where the images are
uploaded.
Password: Enter the password.
Confirm: Confirm the password.
Receiver1: The name of the first user to be notified.
