TruVision 11/31 Series IP Camera Configuration Manual 21

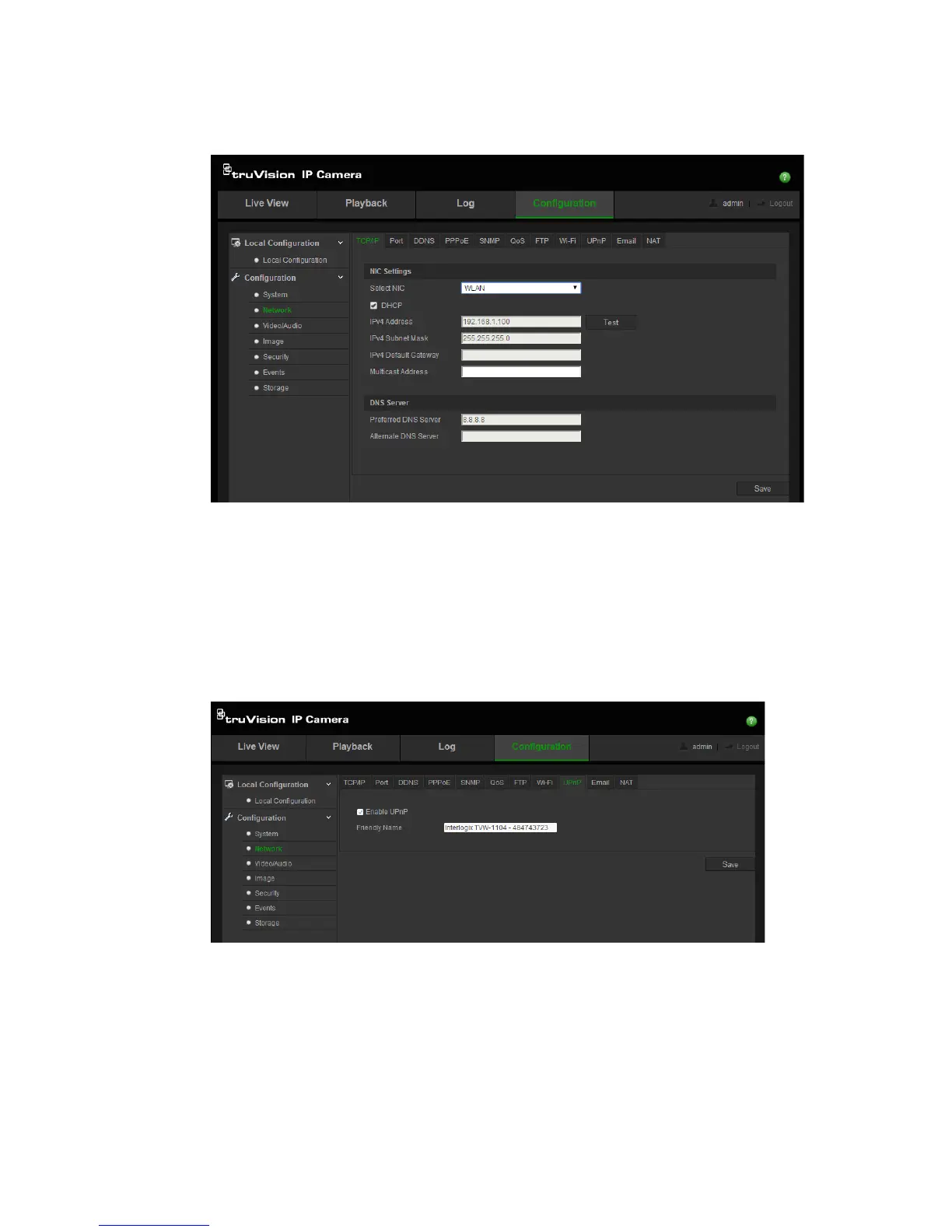

To define the IP address settings:
1. Click Configuration > Network > TCP/IP.
2. For Select NIC, select WLAN.
3. Set the IPv4 address, the IPv4 Subnet Mask and the Default Gateway. If you
want to be assigned the IP address you can check the checkbox to enable
the DHCP.
To define the UPnP parameters:
1. Click Configuration > Network > UPnP.
2. Check the checkbox to enable the UPnP function. You can edit the name of
the device when detected online.
3. Check the Port Mapping, and select Auto or Manual mode to modify the port
number.
4. Click Save to save changes.
