20 TruVision 11/31 Series IP Camera Configuration Manual

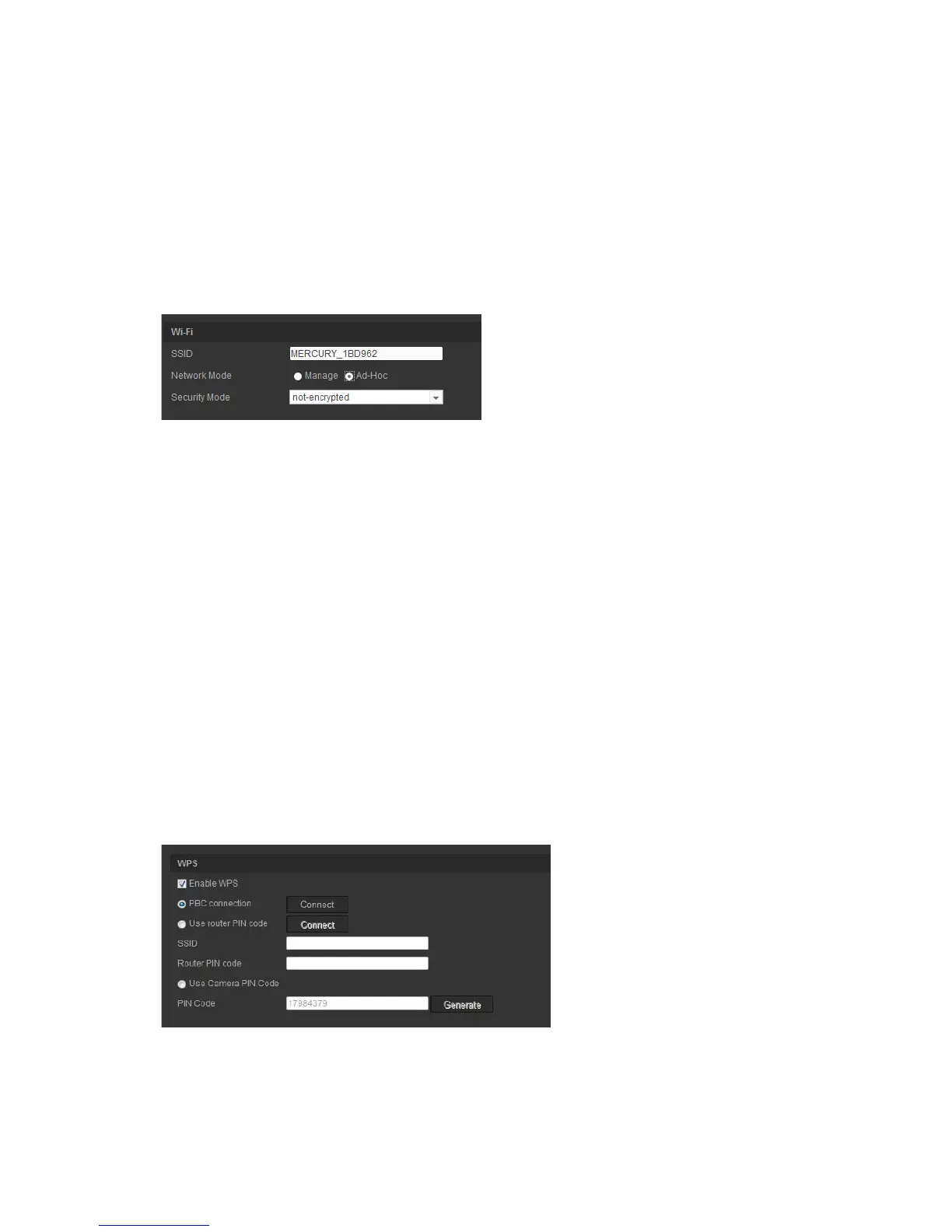

2. Click Search to search the online wireless connections.
3. Click to choose a wireless connection on the list.
4. Select the Network Mode as Manage or Ad-hoc
In Manage mode, the Security Mode of is automatically shown when you
select a wireless connection from the list.
Ad-Hoc Mode is used when accessing the camera via a PC without going
through a wireless router. You can identify the camera SSID and specify the
Security Mode as needed.
5. Select the required Security Mode: Not-encrypted, WEP, WPA-personal,
WPA-enterprise, WPA2-personal, or WPA2-enterprise.
6. For quick Wi-Fi setup, please check the Enable WPS checkbox to enable
WPS function.
PBC Mode: Push the WPS button on the wireless router, and the WPS
indicator will flash. (The WPS settings may be different per device. Please
refer to the wireless router User Manual for details). Then check the PBC
checkbox and click the Connect button. The camera and the wireless
network router are connected automatically.
PIN Mode: Check the wireless router device and find the PIN code, which is
printed on a sticker or printed on the device. Enter the PIN code in the
Router PIN Code bar and check the Use router PIN code. Then click
Connect to connect the camera to the wireless router.
You can generate the PIN code on the camera side and configure the
wireless router to finish the connection setting. (Please check the wireless
router User Manual for details). Please note that the PIN code expiration time
is 120 seconds.
