TruVision 11/31 Series IP Camera Configuration Manual 19
2. Configure the FTP settings, including server address, port, user name,
password, directory, and upload type.
Anonymous: Check the checkbox to enable the anonymous access to the
FTP server.
Directory: In the Directory Structure field, you can select the root directory,
parent directory and child directory. When the parent directory is selected,
you have the option to use the Device Name, Device Number or Device IP for
the name of the directory; and when the child directory is selected, you can
use the Camera Name or Camera No. as the name of the directory.
Upload type: To enable uploading the snapshots to the FTP server.
3. Click Save to save changes.
To define the Wi-Fi parameters:

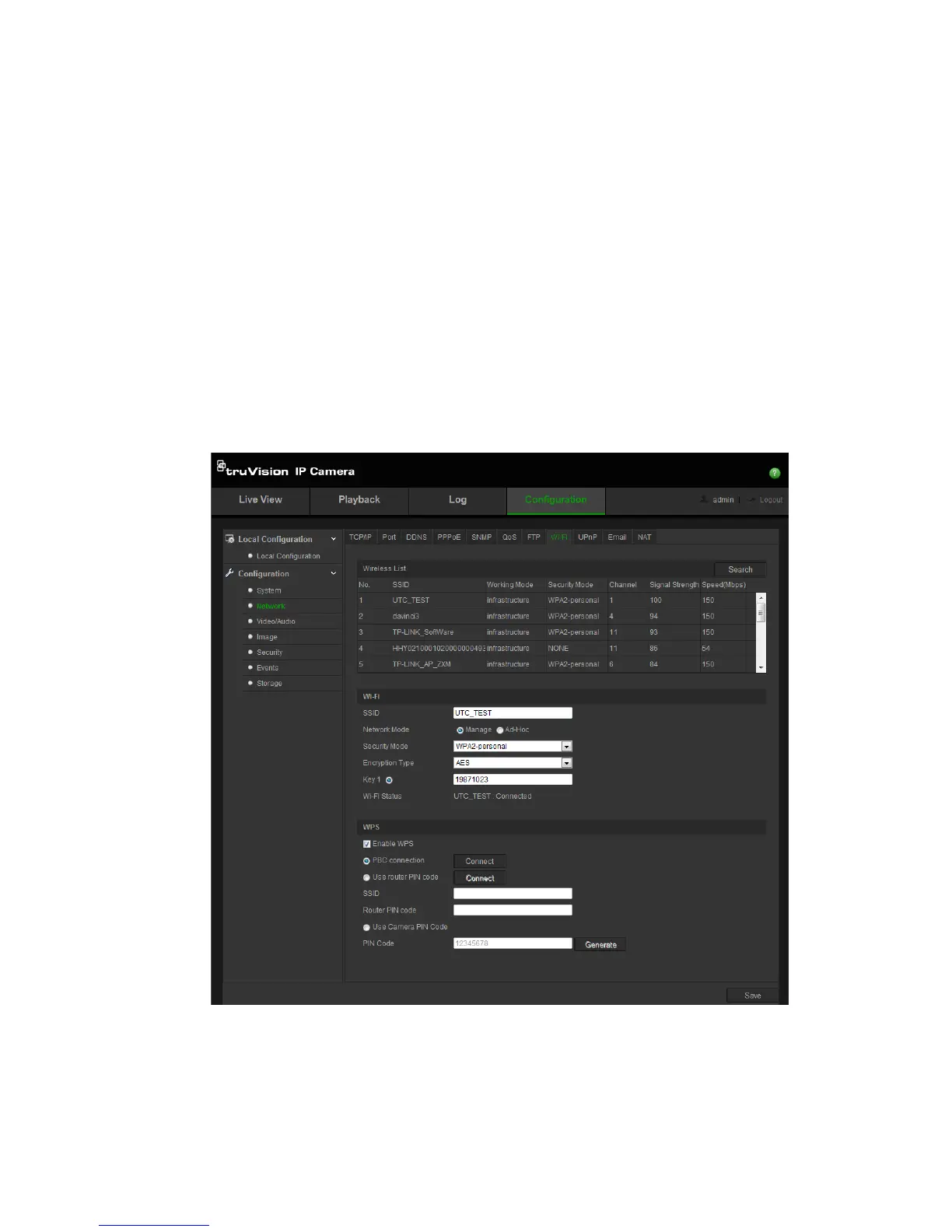

1. Click Configuration > Network > Wi-Fi.
Note: When configuring the Wi-Fi settings for the first time, connect the
camera to the router via a network cable and then open the web browser to
complete the Wi-Fi setup by clicking Save. When the Wi-Fi Status changes
from “Disconnected” to “Connected”, the wireless connection is successfully
set up.
