Two: Plumbing and Wiring Examples 11

Providing a brighter solution.™

Section 2:

Plumbing Examples

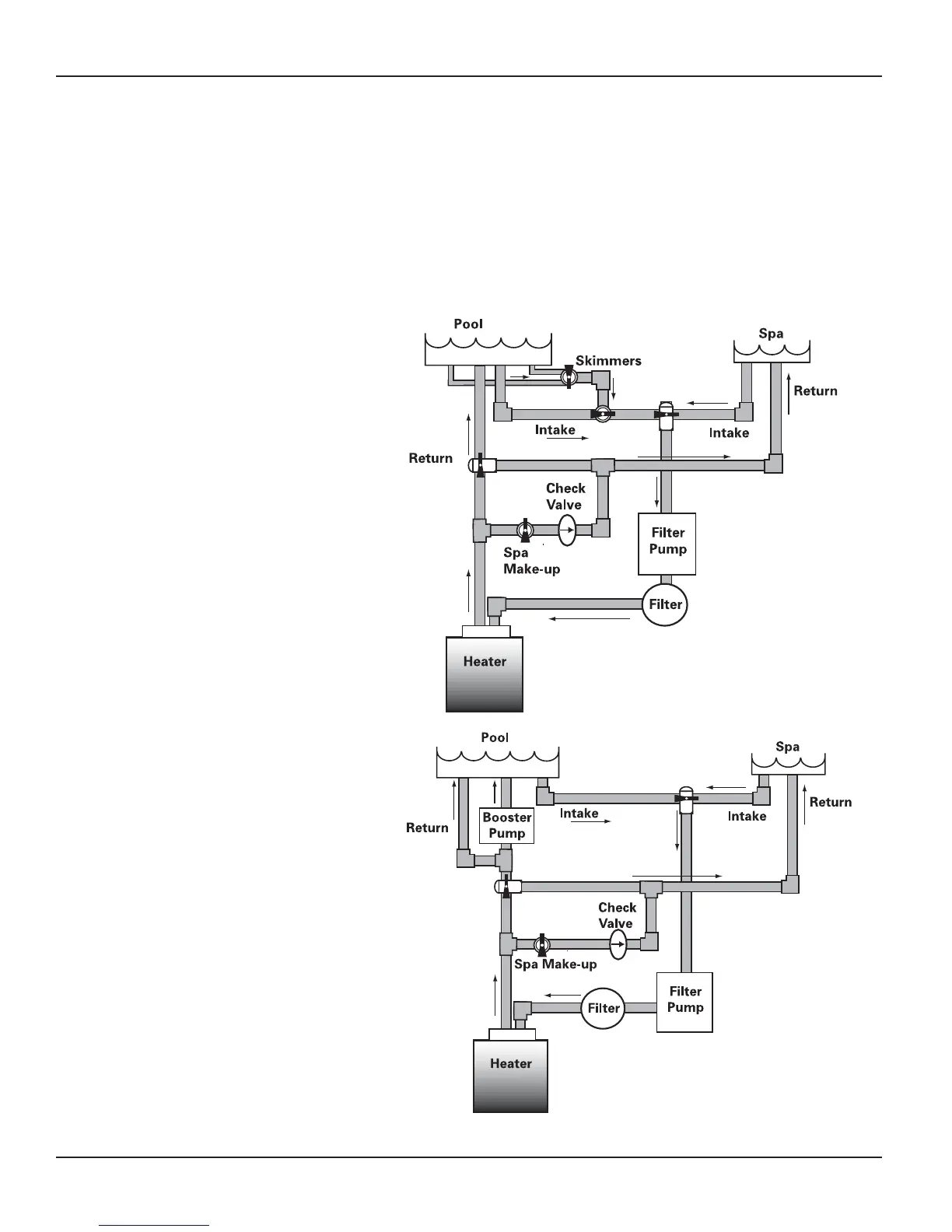

The following diagrams show several plumbing and wiring examples of installations for pool and

spa that share a single ﬁlter pump, ﬁlter, and heater. If you are installing a pool only or spa only,

these diagrams will not apply.

For Pool and Spa

Combo Installations

For Booster Pump Pool

Cleaner Installations
