Chapter 1 — Introduction
4 Vehicle Power Supply Installation Guide
Since the power supply will produce heat, it is advisable to mount
it on a minimum of 130-160 square inches (840 to 1030 square
centimeters) of metallic surface to disperse heat. This location
should not be in the vicinity of sources of vehicle-generated heat.
About the LEDs
A single or a pair of green light-emitting diodes (LEDs), located
near the output connectors on the power supply, will be lit
whenever voltage is supplied to the output power cable.
Mount the power supply in a location that allows easy visibility
to the LEDs for troubleshooting.
One LED indicates main power is functioning (3-pin connector).
The secondary power LED indicates the heater power (2-pin
connector) is functioning.

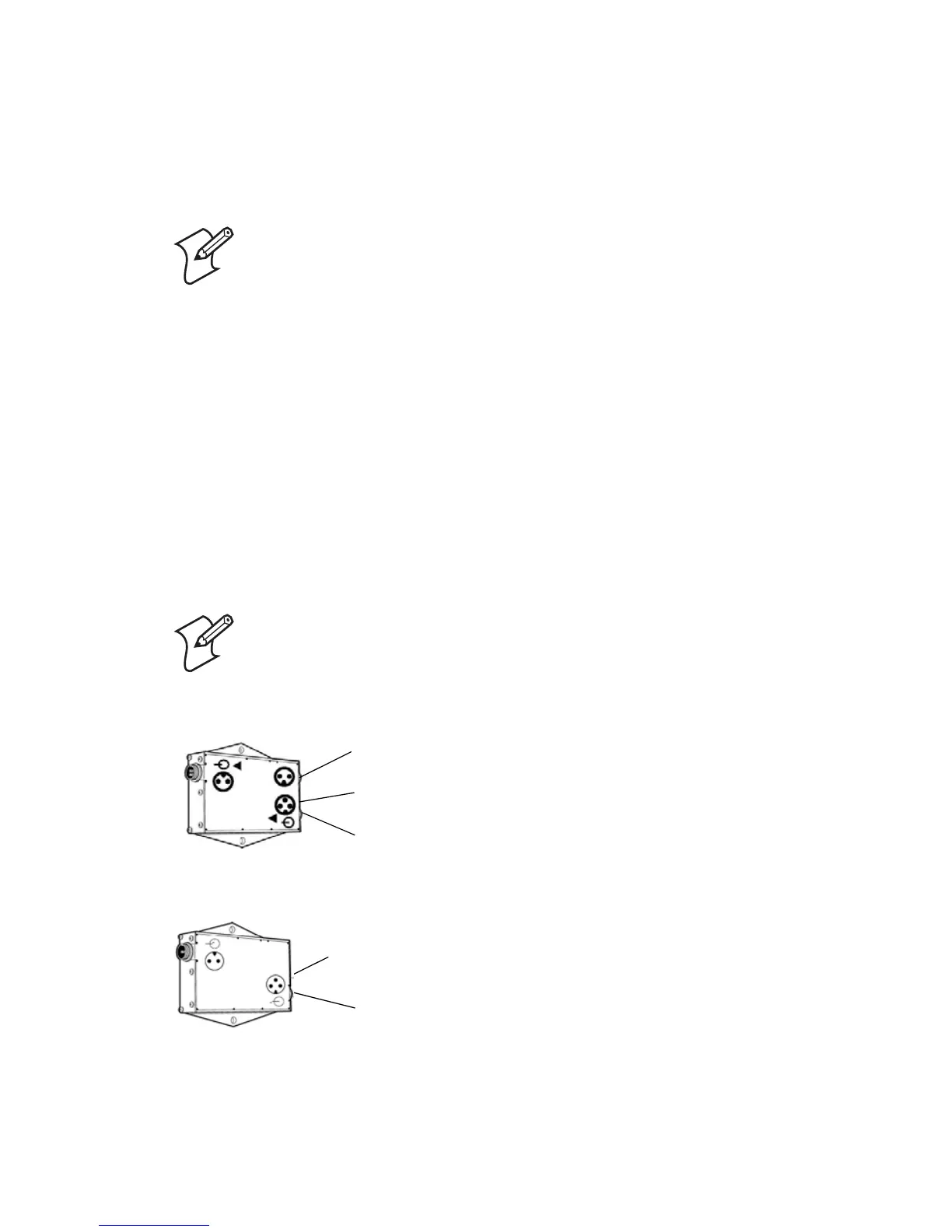

Power Supply (P/N 851-070-003) 6-60V, 14A
Power Supply (P/N 851-041-003) 15-96V, 4.5A
Note: Use the hardware supplied in the kit, or
equivalent, to mount the power supply. Do not use
sheet metal screws or other less permanent or rugged
mounting solutions.
Note: If the secondary LED is not lit, the input power
to the DC-DC converter is less than 9-10 volts. It will
continue to provide 12V output power to the main
power connector.
Output connector (secondary power)
Green LEDs (power output indicators)
Output connector (main power)
Output connector
Green LED (power output indicator)
