Chapter 2 — Installation Process
26 Vehicle Power Supply Installation Guide
Sample Installations

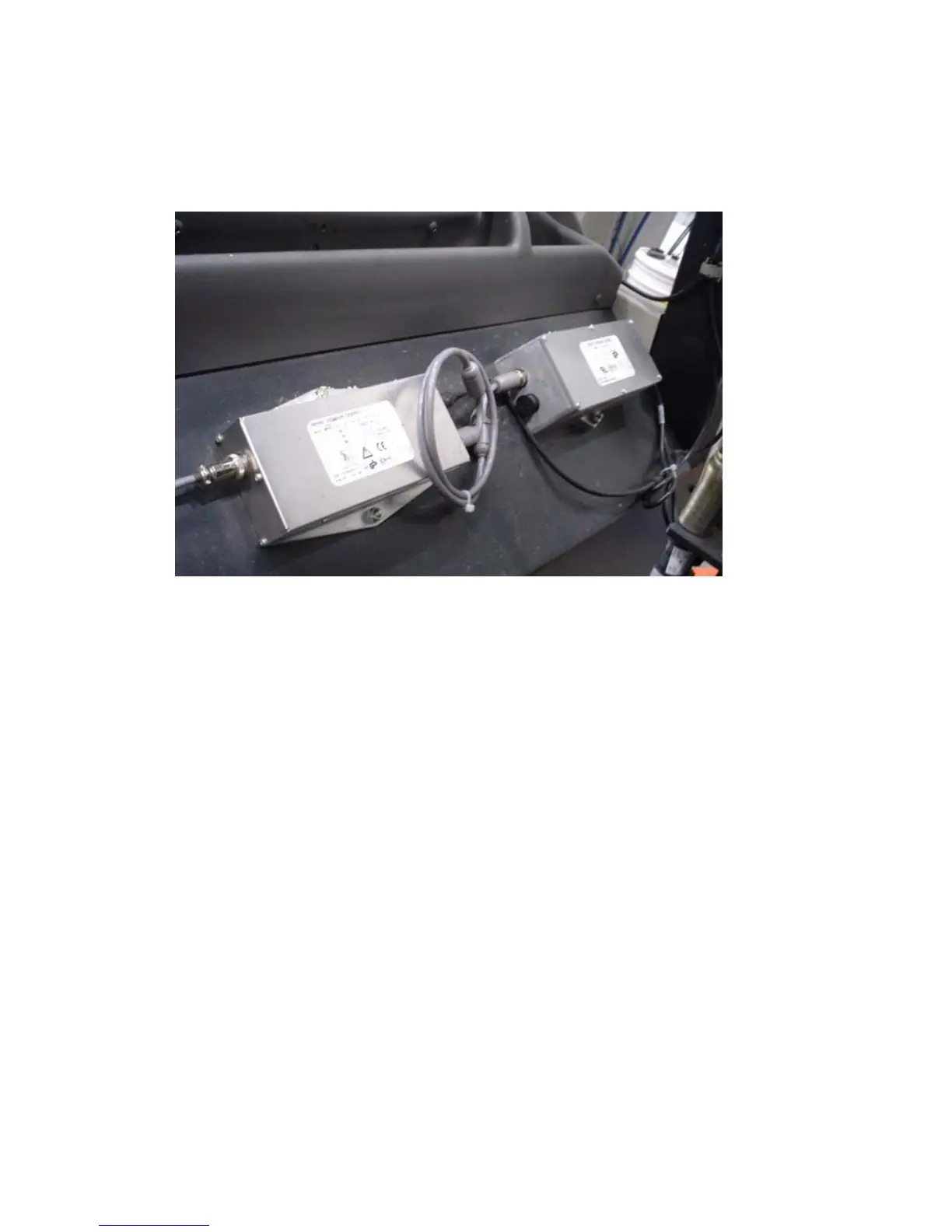

In this installation example, the power supply is securely attached
with good air flow, easy access, and neatly tied-off cabling.
Additionally, this installation allows:
• Easy access to power supply components, LED visibility is
good.
• Power cables are out of the way and tied off, with adequate
heat sink, and good air access for cooling.
• Good access for component service.
• Full access to the UPS battery.
