Chapter 2 — Installation Process
Vehicle Power Supply Installation Guide 23
Repeat steps 2 through 8 for the negative wire (white-green pair)
from the power input cable, connecting the wire to the negative
(-) battery terminal.

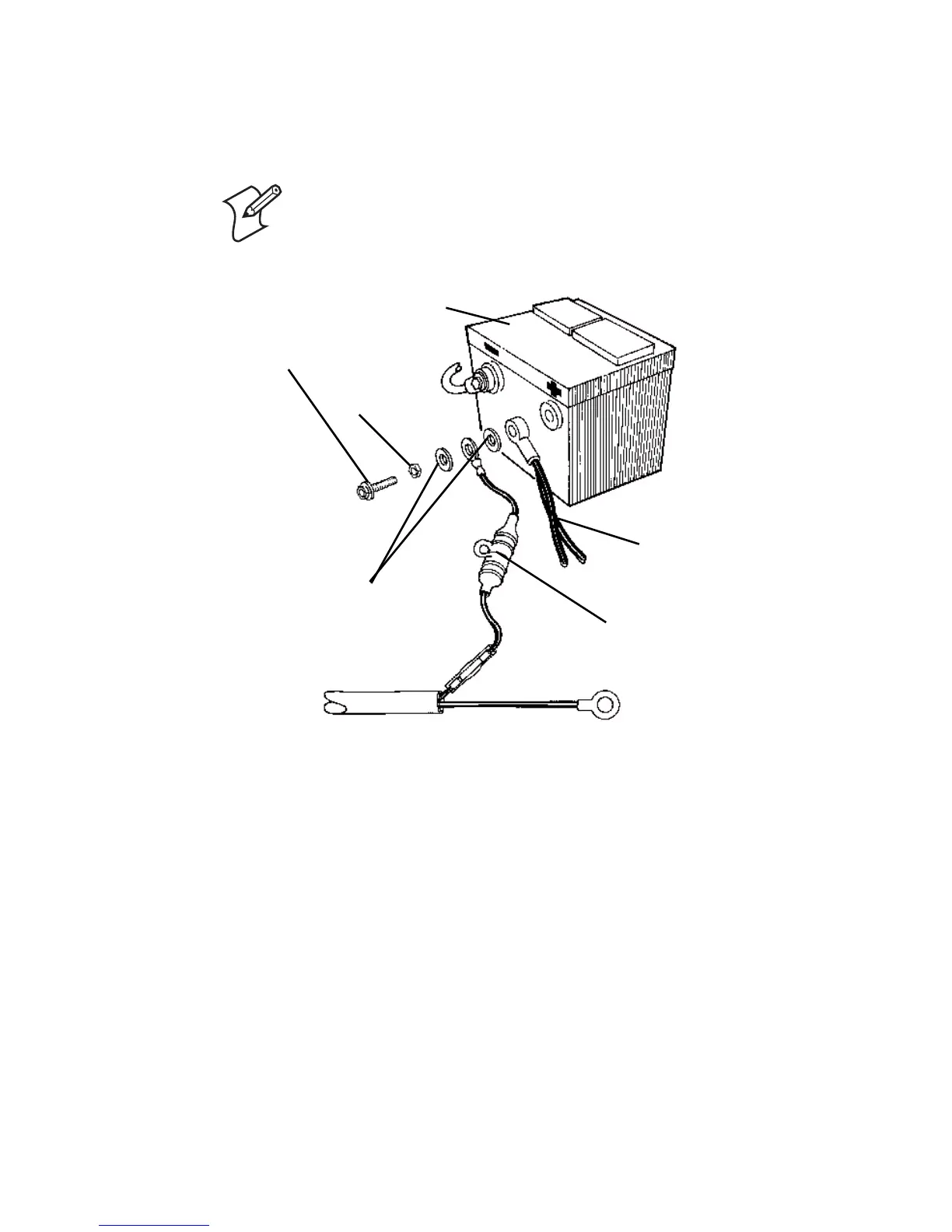

Side-Mount Battery Terminals
Top-Mount Terminals
Attach the vehicle battery cable to a top-mount battery terminal
as shown in the “Top-Mount Battery Terminals” illustration
following the last step in this set of procedures.
To attach power supply cable
1 Disconnect the negative battery cable, then disconnect the
positive battery cable.
2 Remove the bolts from the vehicle battery terminals.
3 Replace those bolts with 3/8x1-1/2-inch bolts and nuts from
the installation kit. Tighten the nuts.
Note: See the warning on page 18 if you are installing
on gas-powered vehicles.
3/8” nut
3/8 x 1-1/2” bolt
Vehicle battery
Fuse holder
3/8” washers
Vehicle battery cable
To Next Page
