Chapter 1 — Introduction
Vehicle Power Supply Installation Guide 7

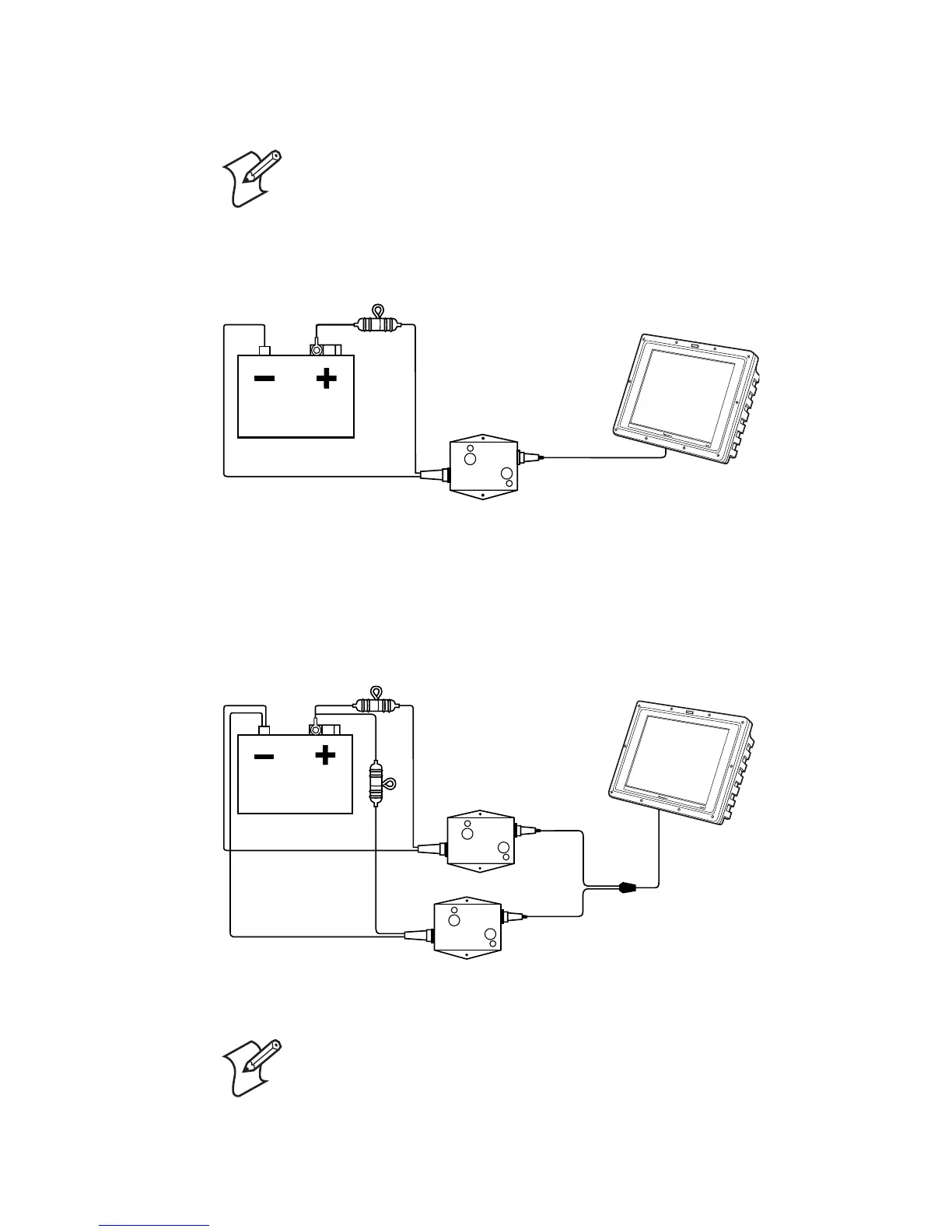

Installation Diagrams
Power Supply Installation without Heater
Power Supply Installation with Heater
Note: Output cables used with P/N 851-041-xxx
connect to the 3-pin output connector. There is only
one connector per power supply.
Note: Attach both connectors to the power supply
even for non-heated vehicle mount computers. This
prevents accidental damage, dirt accumulation, or
unwanted electrical contact to the unused connector.
60-96V
Fuse
Fixed or Vehicle
DC-DC Converter
P/N 851-041-003
Input Cable
P/N 226-340-004
Mount Computer
Output Cable
P/N VE012-8014-X
Fuses
DC-DC Converters
P/N 851-041-003
Cable
P/N VE012-8017-XX
P/N 226-340-004
Cable
Fixed or Vehicle
Mount Computer
P/N 226-340-004
Cable
60-96V
