Chapter 2 — Installation Process
24 Vehicle Power Supply Installation Guide
4 Reinstall the positive battery cable, then tighten the nut
securely.
5 Slip a 3/8-inch washer onto the extended end of each bolt.
6 Slide the positive (fuse link with red wire) terminal ring from
the input power cable onto the positive (+) battery bolt.
7 Slip a second 3/8-inch washer onto that bolt.
8 Thread and tighten a second 3/8-inch nut onto that bolt.
9 Use a self-tapping screw and a flat washer to connect the
shield wire to the metal surface on which the power supply is
mounted.
Repeat steps 6 through 8 for the negative battery cable wire
(white-green pair) from the power input cable, connecting the
wire to the negative (-) battery terminal.

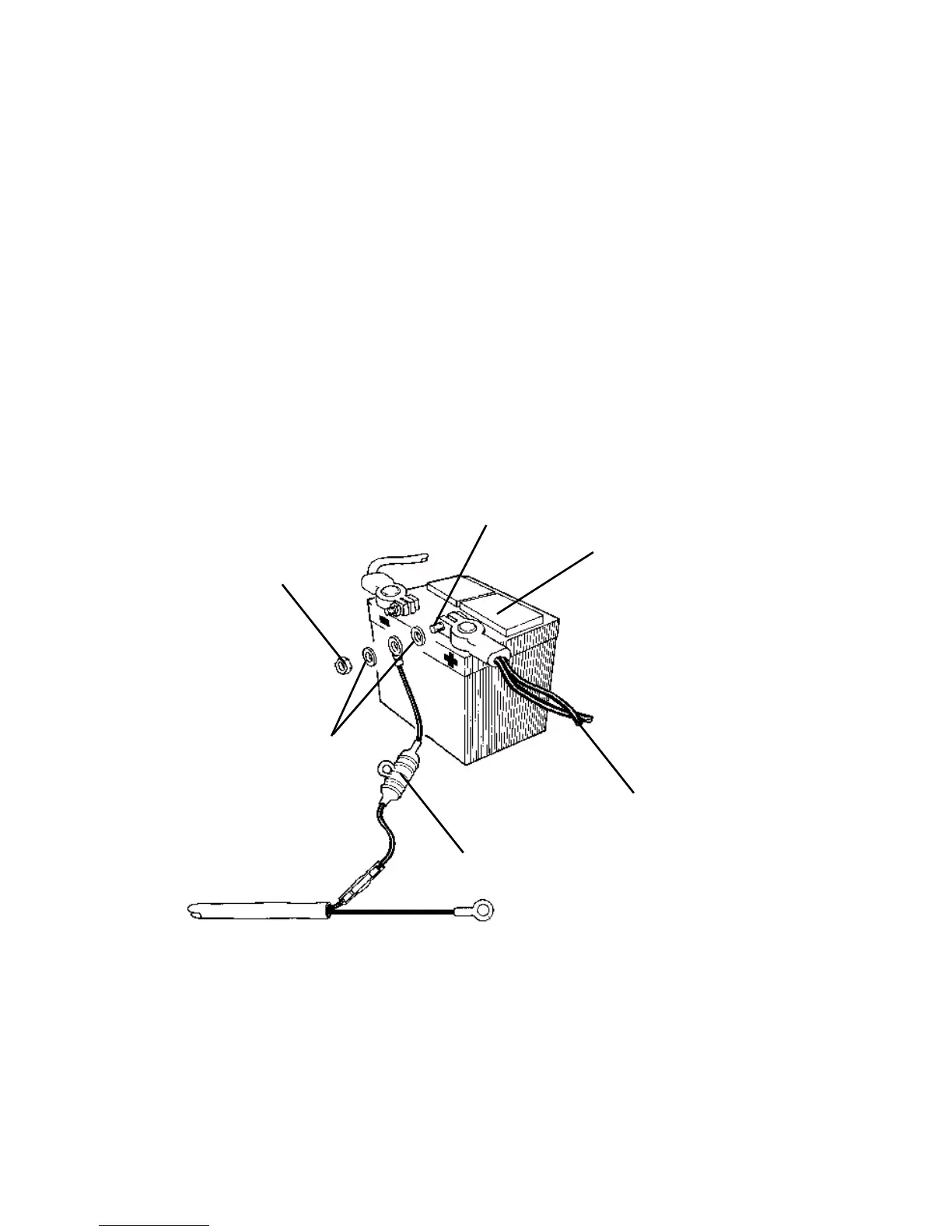

Top-Mount Battery Terminals
Bolt
Nut
Vehicle battery
Vehicle battery cable
Fuse holder
Washers
