Chapter 3 — Troubleshooting Information
Vehicle Power Supply Installation Guide 35

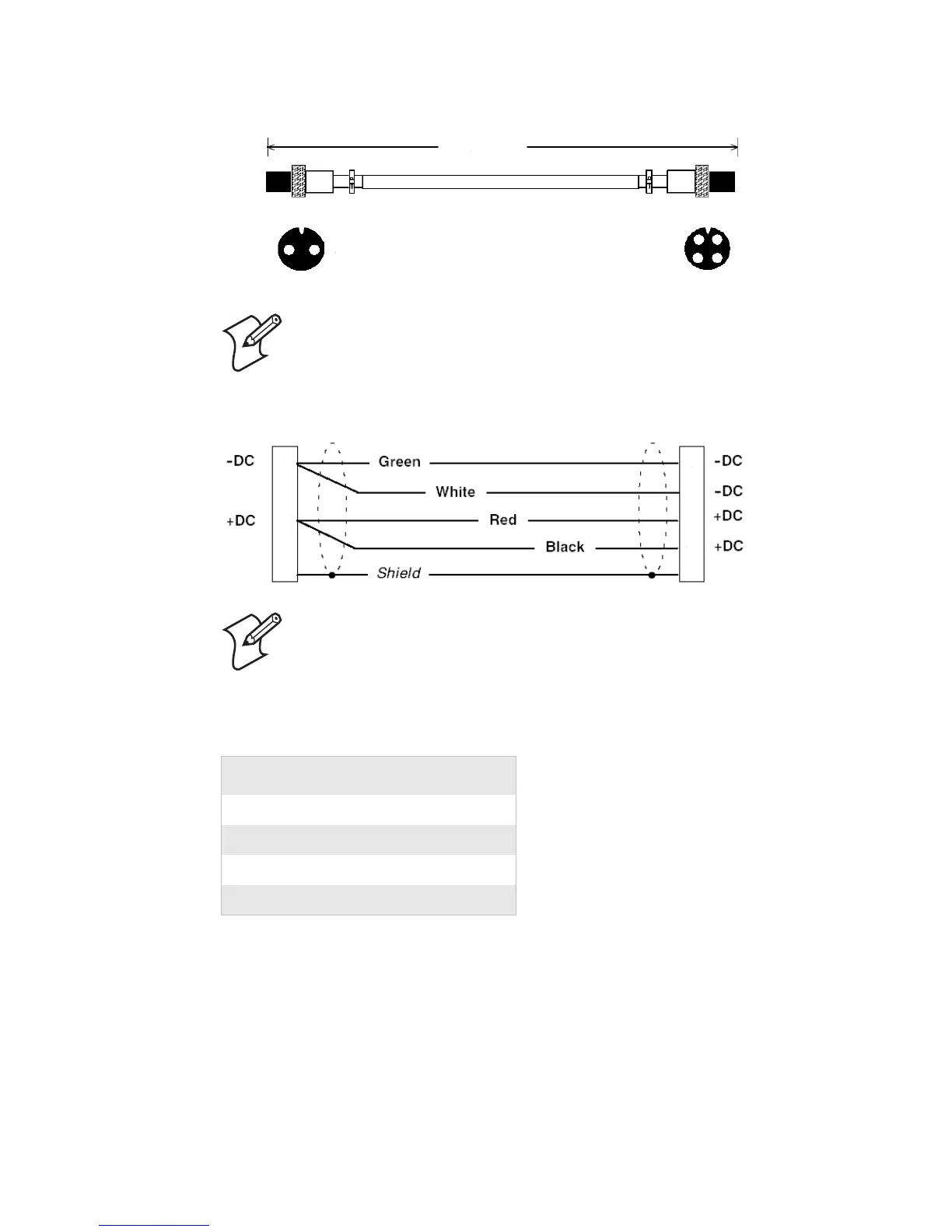

Wire coloring to pins follows this pattern.
Note: During installation, you will cut and discard
one of these cable connectors.
Note: The cables in the installation kit may contain
alternate wire colors. Refer to the following chart for
the wire color equivalent.
Wire Color Equivalents
Wire Color Alternate Color
Green Blue
White Gray
Red Brown
Black Red
P/N 226-340-003 and 226-340-004
108.0 +/- 3.0”
21
4
3
2
1
Pin View
2-Pin View
1
2
1
2
3
4
To Next Page
