Specifications
A-5
A
Media
G
3XXXU.O55
D
C
A
B
E
F
H

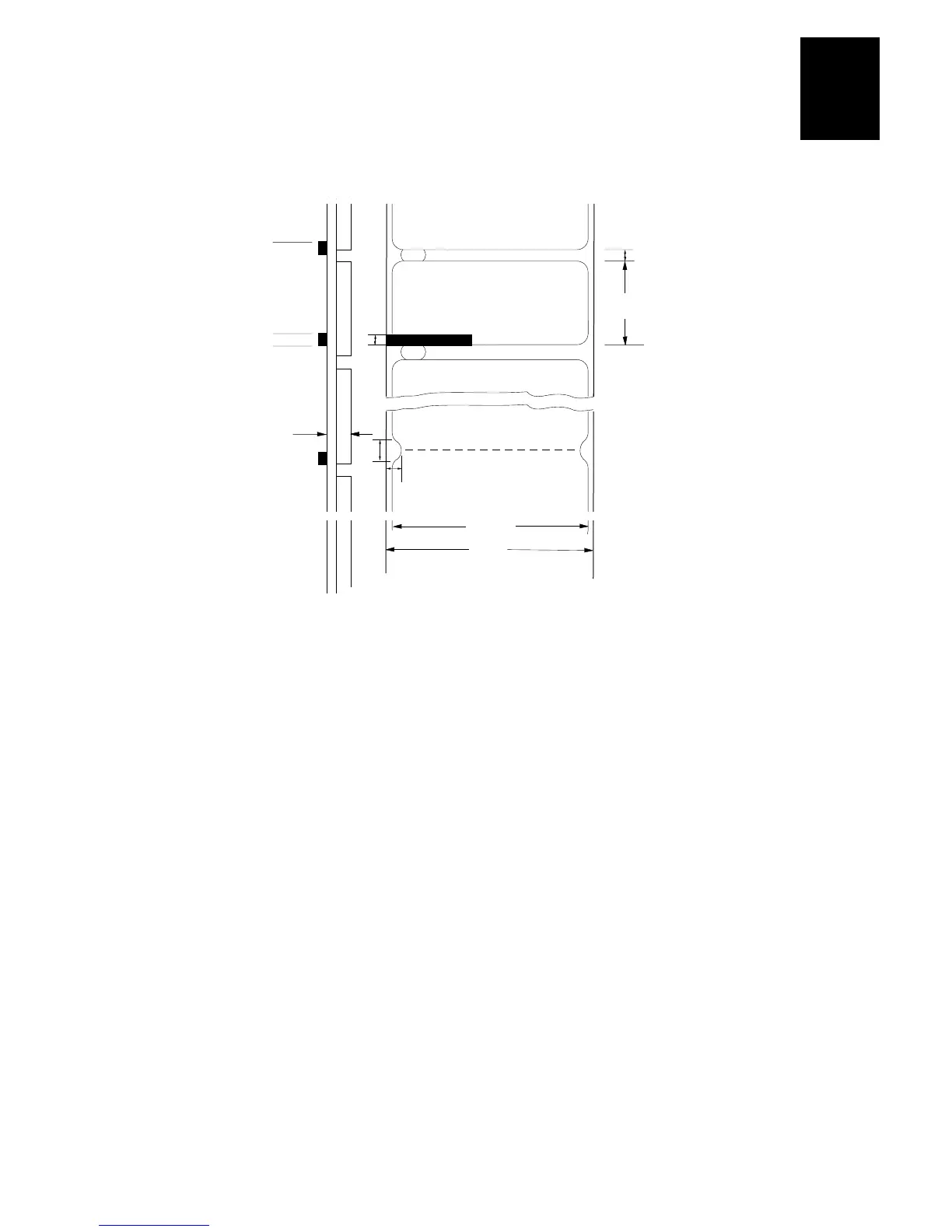

Number Description Minimum Maximum
A Label width 16.5 mm (0.65 inch) 111.8 mm (4.4 inches)
B Backing width (or tag width) 19.1 mm (0.75 inch) 114.3 mm (4.5 inches)
C Gap between labels 2.54 mm (0.10 inch) 25.4 mm (1.0 inch)
D Label length - self-strip media
Label length - butt cut media
25.4 mm (1.0 inch)
12.7 mm (0.5 inch)
609.6 mm (24 inch)
609.6 mm (24 inch)
E Media thickness (including backing) 0.15 mm (0.0059 inch) 0.30 mm (0.012 inch)
F Reflective sensor mark length 2.54 mm (0.10 inch) 12.7 mm (0.5 inch)
G Notch diameter 3.18 mm (.125 inch) N/A
H Notch height 6.4 mm (0.25 inch) N/A
Roll diameter N/A 213 mm (8.38 inches)
