Intermec EasyCoder F4 – Installation & Operation IPL Version, Ed. 1 75
Appendix 3
Interfaces
RS-232 Interface
RS-232 Port
The EasyCoder F4 has, as standard, one serial communication
interface: RS-232.
Default Communication Setup
Baud rate: 9600
Char. length 8 bits
Parity: None
Stop bits: 1
Protocol: XON/XOFF
To change the serial interface settings, see Chapter 6, “Setting
Up the Printer.”

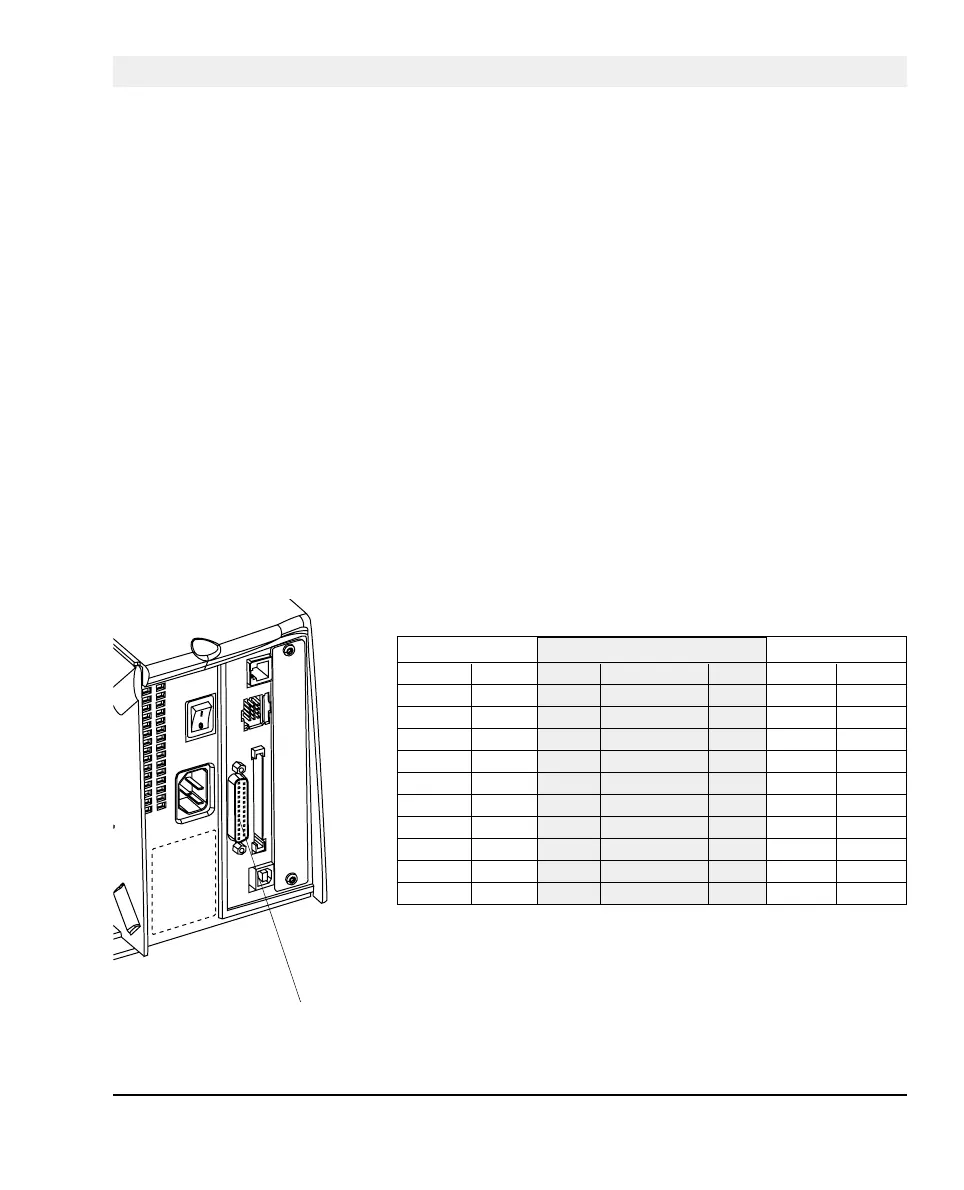

Interface Cable
Computer end: DB-9pin or DB-25pin female connector(PC)
Printer end: DB-25pin male connector
Host EasyCoder F4 Host
Signal DB-9 DB-25 Signal DB-25 DB-25 Signal
1 1 1 1 shield
RXD 2 2 TXD 2 3 RXD
TXD 3 3 RXD 3 2 TXD
CTS 8 4 RTS 4 5 CTS
RTS 7 5 CTS 5 4 RTS
6 DSR 6 20 DTR
GND 5 7 Signal GND 7 7 GND
16 + 5V
1
16
DSR 6 20 DTR 20 6 DSR
22 RI 22
1
/. The external +5V is limited to 200 mA and is automatically
switched off at overload.
