Intermec EasyCoder F4 Installation & Operation IPL Version, Ed. 1 27
Chapter 4 Media Load
2
1
4
3
4
2
1
4
3

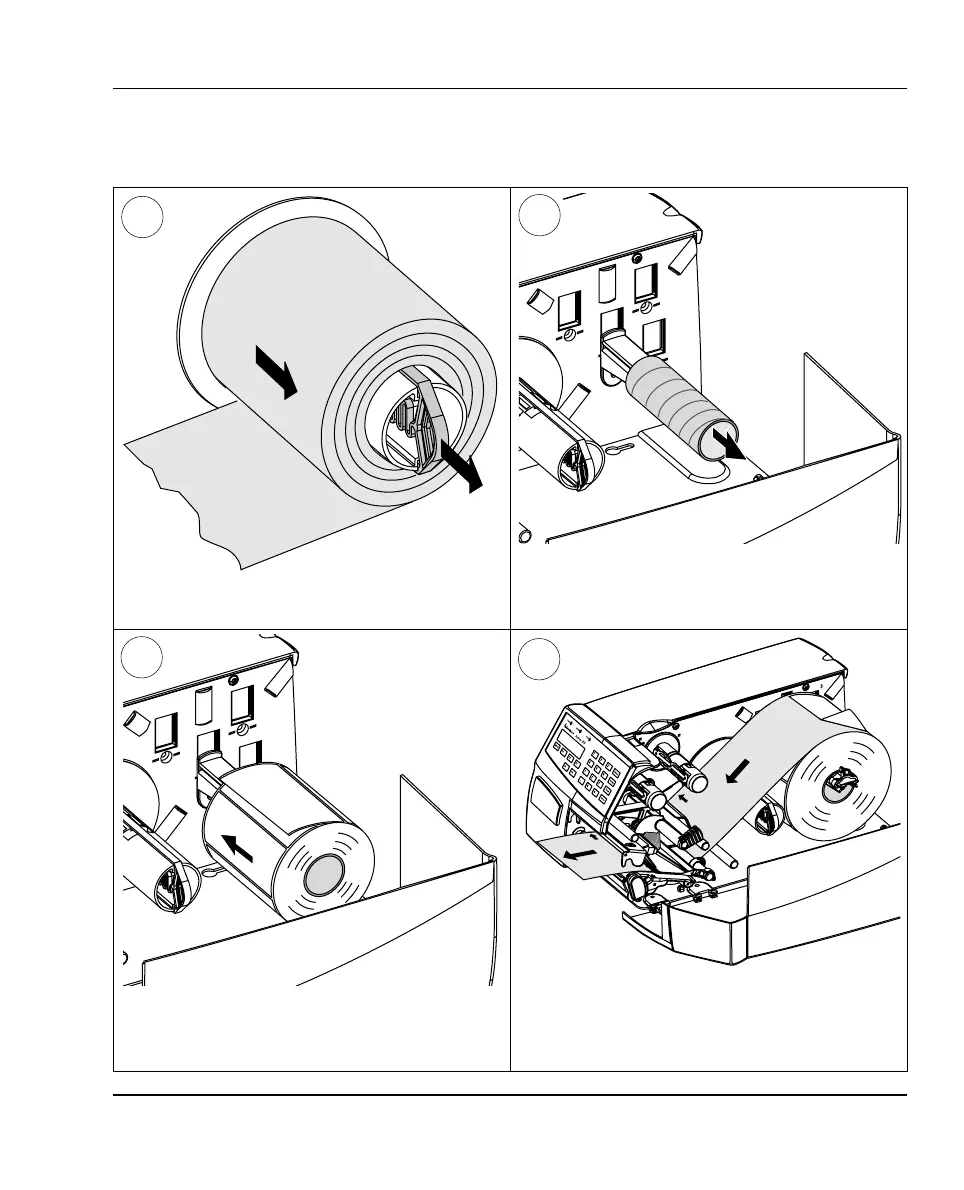

Peel-Off, cont.
Pull out the handle to collapse the takeup hub,
then remove any liner.
Remove any empty core from the media supply
roll post. Remove the edge guide if necessary.
3
Remove labels from the rst 50 cm (20 inches)
of the liner. Route the liner through the print
mechanism and push it inwards.
Fit a new roll of labels on the supply post and
adjust the edge guide so the roll becomes ush
with the center section.
6
5
