Intermec EasyCoder F4 – Installation & Operation IPL Version, Ed. 1 67
Appendix 2 Media Specifi cations

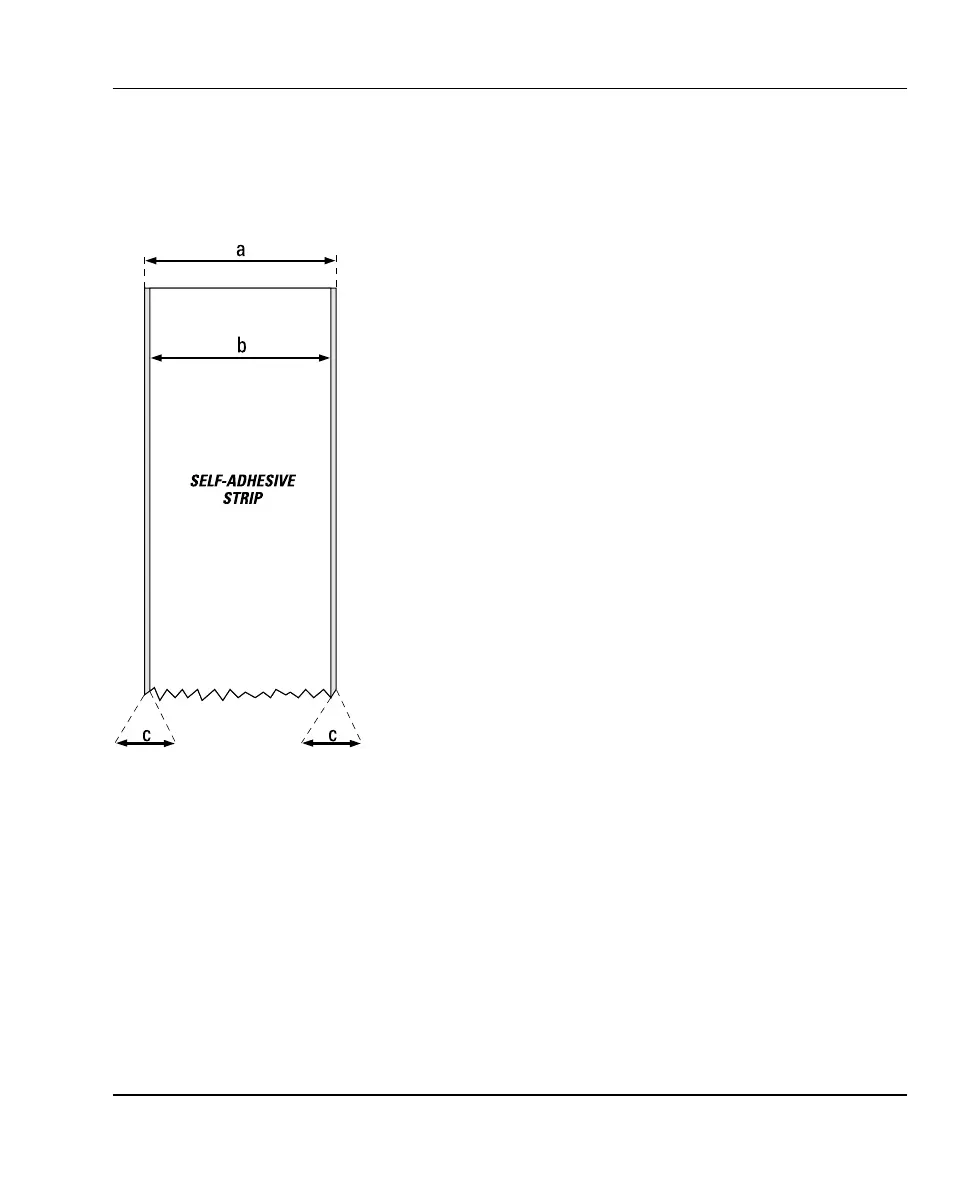

⇐ a ⇒ Media Width (including liner):
Maximum: 114.3 mm (4.50 inches)
Minimum (standard): 25.0 mm (1.00 inches)
Minimum (narrow Quick-Load): 40.0 mm (1.57 inches)
Minimum (wide Quick-Load): 80.0 mm (3.15 inches)
⇐ b ⇒ Liner
The liner must not extend more than a total of 1.6 mm (0.06
inches) outside the face material and should protrude equally
on both sides.
⇐ c ⇒ Media Width (excluding liner):
Maximum: 112.7 mm (4.43 inches)
Minimum: 23.8 mm (0.94 inches)
Media Type Setup:
• Continuous
Self-Adhesive Strip
Media, cont.
To Next Page
