Chapter 8 — Print Unit

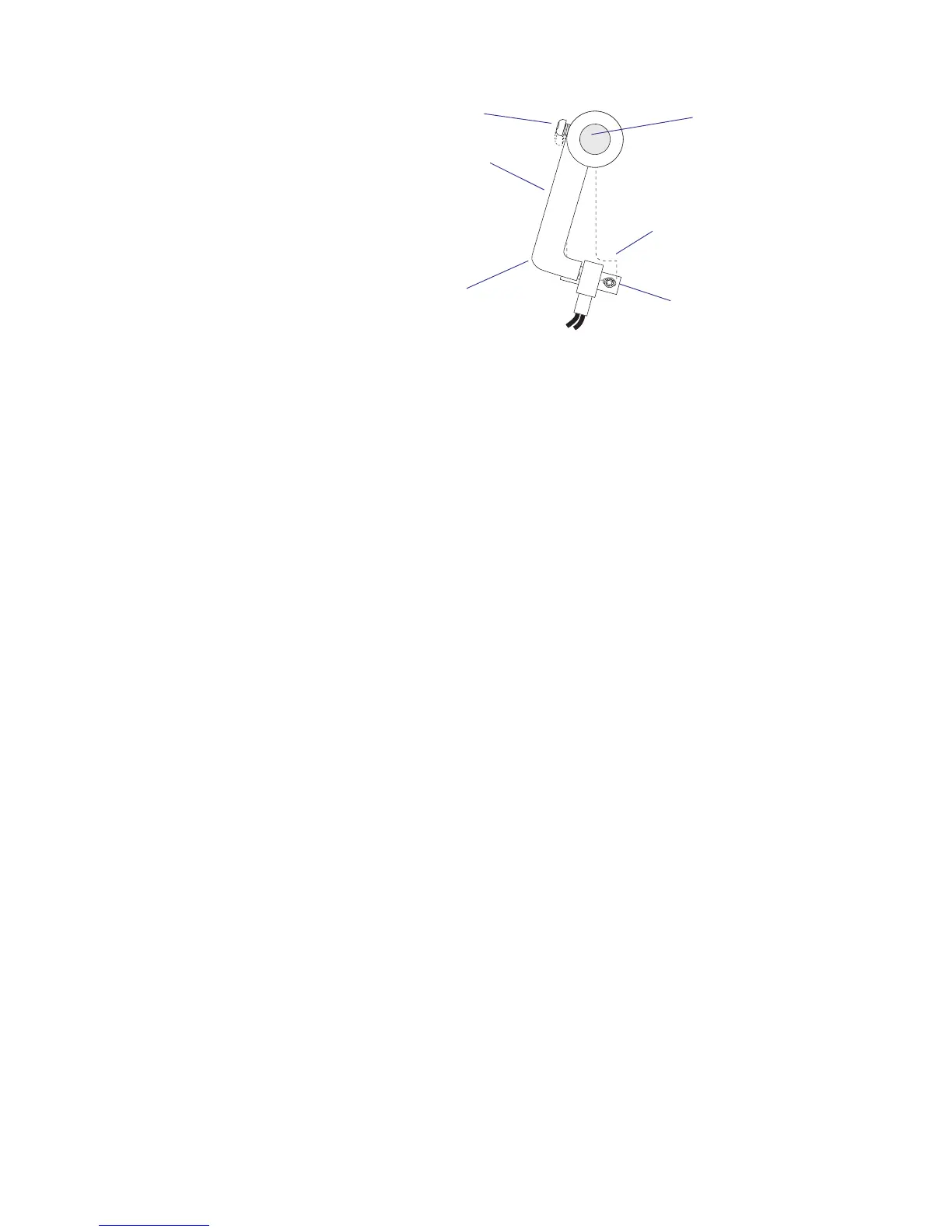

Sensor Arm
Headlift shaft
#T10 Torx Screw
Sensor
In Fingerprint, run this program which assists you in adjusting the headlift
sensor arm:
Status LED red = Printhead open.
Status LED off = Printhead closed.
The correct position is exactly when the Status LED goes off.
You can break the program execution either by pressing <Shift> + <Pause>
on the printer's keyboard or by transmitting the character X (uppercase!)
from the host.
NEW
10 BREAK 1, 88
20 BREAK 1 ON
30 ON BREAK 1 GOSUB 1000
40 LED 1 OFF
50 WHILE (PRSTAT AND 1)=0: WEND
60 LED 1 ON
70 WHILE (PRSTAT AND 1)=1: WEND
80 GOTO 40
1000 BREAK 1 OFF
1010 END
RUN
In IPL, check that the sensor is properly adjusted using the Label Path
Open Sensor Value command (<STX>L<ETX>), see IPL Programming,
Reference Manual.
“Printhead Open“
position
“Printhead Closed” position

Intermec EasyCoder PX4i Specifications

General

Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Display	LCD
Product color	Silver
Keyboard layout	Numeric
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	120 mm
Maximum label length	2.7 m
Maximum roll diameter	213 mm
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	275 mm
Weight	12850 g
