Intermec EasyCoder PX4i Service Manual

0RESS
SIDEWAYS
EasyCoder PX4i and PX6i Service Manual 119
Chapter 11 — Paper Cutter
11.2 Installation
• Switch off the power and remove the power cord.
• Open the printer’s front door.

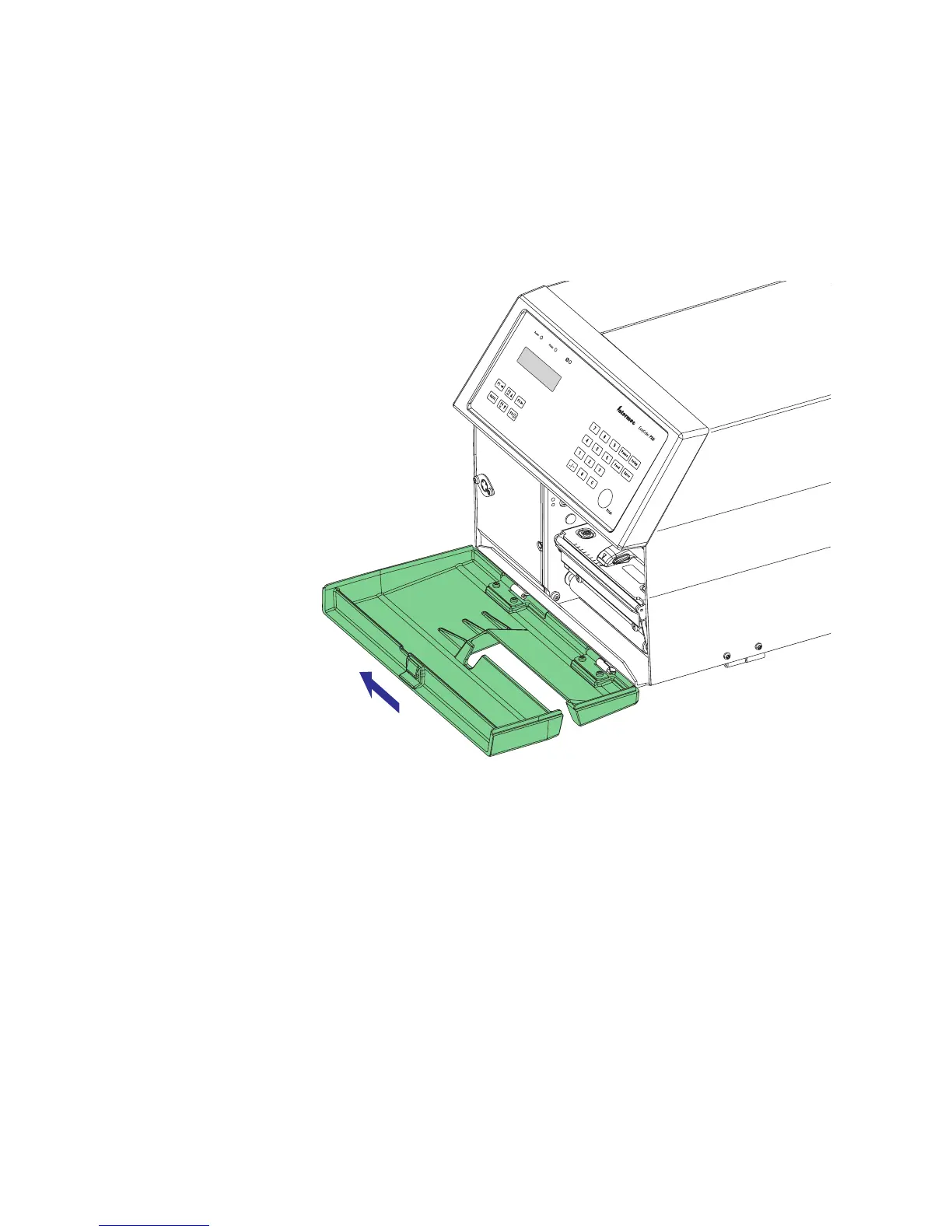

• Hold the printer fi rmly and press the front door sideways to the left so
as to disengage the hinges.
• Remove the door completely.
• If the printer is fi tted with a label taken sensor (LTS), it has to be
removed before the cutter can be fi tted, see Chapter 10.

Intermec EasyCoder PX4i Specifications

General

Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Display	LCD
Product color	Silver
Keyboard layout	Numeric
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	120 mm
Maximum label length	2.7 m
Maximum roll diameter	213 mm
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	275 mm
Weight	12850 g
