126 EasyCoder PX4i and PX6i Service Manual
Chapter 12 — Electronics Compartment
12.1 Introduction
The Electronics Compartment is off limits to the normal user, but for the
authorized service technician, it contains a number of parts of great inter-
est:
• The stepper motor and timing belts of the platen roller and ribbon
rewind unit.
• The stepper motor and belts of the optional liner/batch takeup unit.
• The headlift mechanism and sensor.
• The CPU board.
• The driver board.
• The power supply unit.
• Optionally one or two extra interface boards and/or one EasyLAN
board.
12.2 Accessing the Electronics Compartment

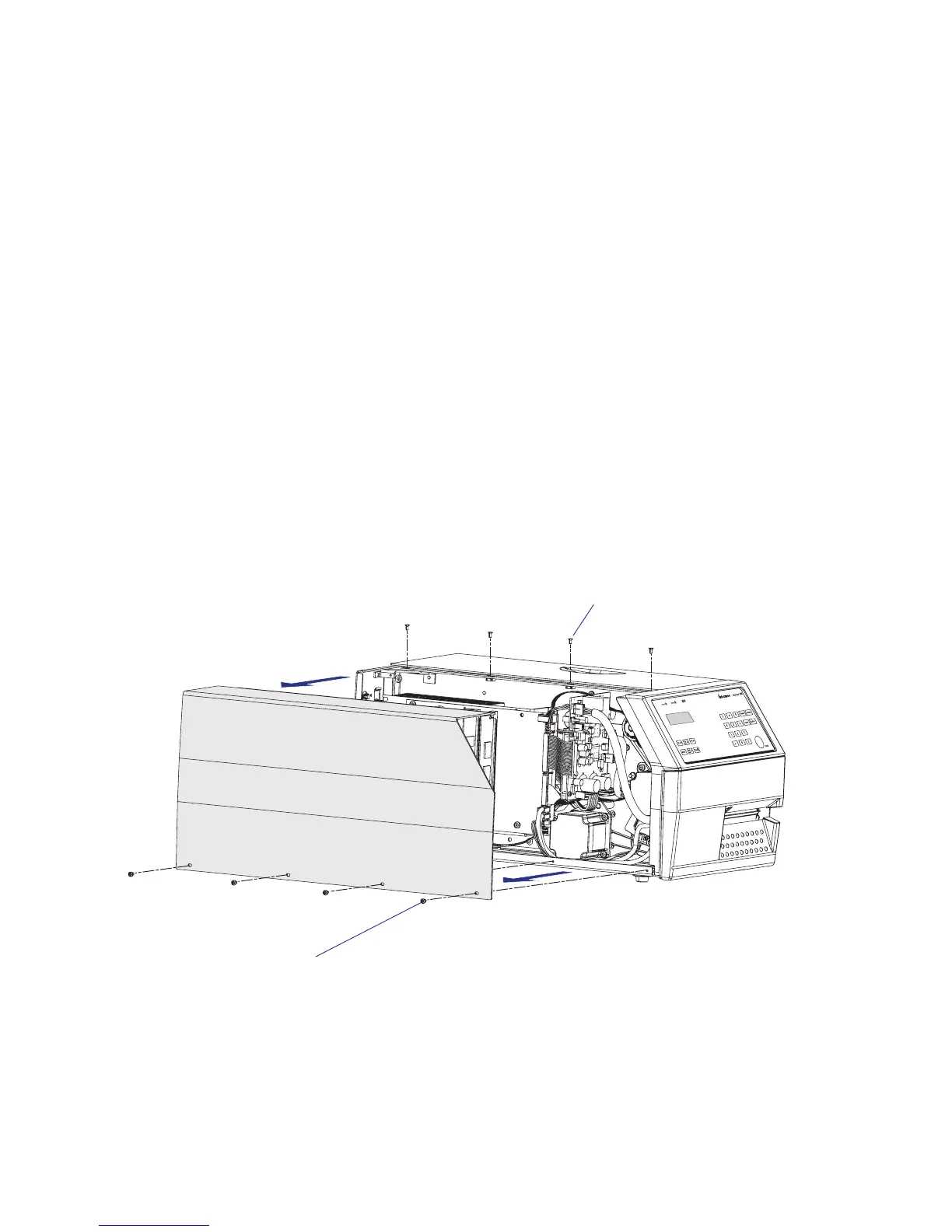

To gain access to the electronics compartment, remove the left-hand cover
as described in Chapter 3.3.
#T10 Torx screws (x4)
#T10 Torx screws (x4)

Intermec EasyCoder PX4i Specifications

General

Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Display	LCD
Product color	Silver
Keyboard layout	Numeric
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	120 mm
Maximum label length	2.7 m
Maximum roll diameter	213 mm
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	275 mm
Weight	12850 g
