Chapter 3 — Covers and Doors
3.2 Front Door
The front door gives access to:
• The front part of the print mechanism
• The paper cutter connector
• The optional label taken sensor
The front hatch is fi tted to the bottom plate using two hinges of the same
type as those of the right-hand door. The front hatch is kept shut by a
snap-lock and can be swung down almost to a vertical position. The hatch
can be removed from its hinges by pushing it to the left until the snap-lock
on the right-hand hinge disengages.
The front hatch can be replaced by an optional paper cutter unit, see
Chapter 11.
Alignment is performed in the same way as the right-hand door, see the
previous page.
The front hatch can be removed by pushing it to the left when open

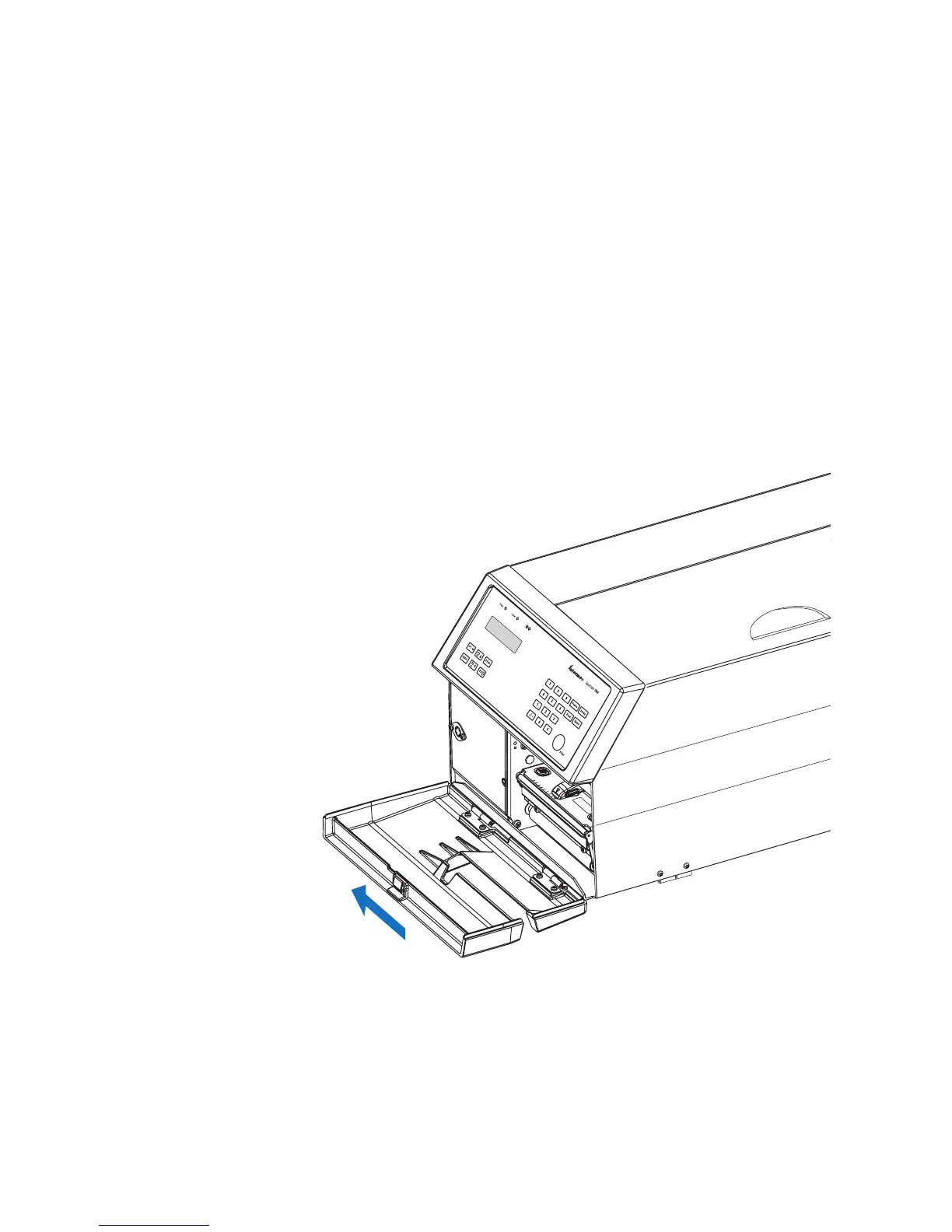

(illustration shows an EasyCoder PX4i).

Intermec EasyCoder PX4i Specifications

General

Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Display	LCD
Product color	Silver
Keyboard layout	Numeric
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	120 mm
Maximum label length	2.7 m
Maximum roll diameter	213 mm
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	275 mm
Weight	12850 g
