Intermec EasyCoder PX4i Service Manual

EasyCoder PX4i and PX6i Service Manual 151
Chapter 15 — CPU Board
15.4 Test Points

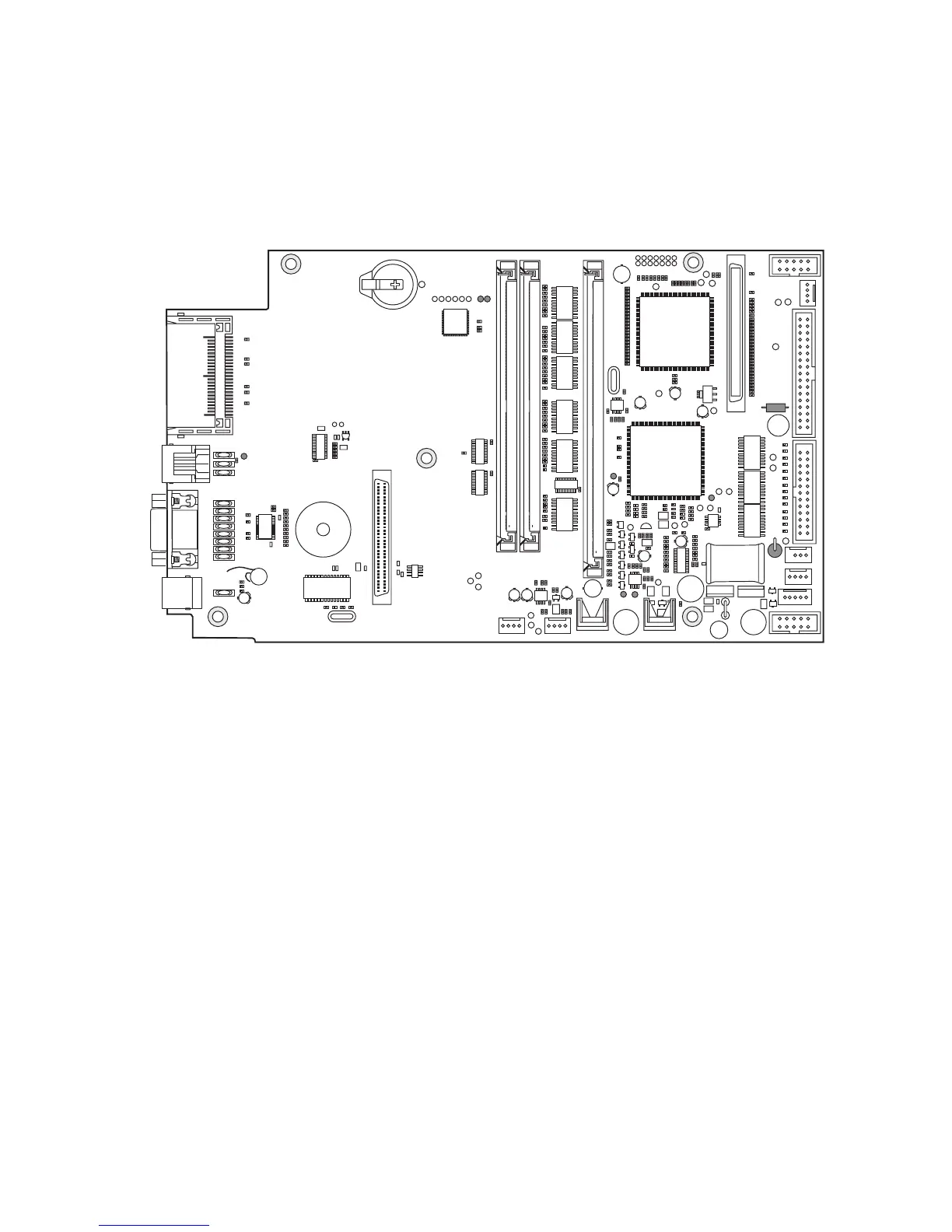

The CPU board is provided with many test points. Only those of immedi-
ate interest to the fi eld service technician are shown below. If further test-
ing or servicing is required, exchange the CPU board and return the faulty
board to a service center.
Test Points
If available, use an oscilloscope to measure the various voltages. When
using for example a multimeter, a fl uttering value may indicate an errone-
ous voltage.
GND Ground
2.5V 2.5V –> GND (max ± 0.2V)
3.3V 3.3V –> GND (max ± 0.2V)
5.0V R718 –> GND (max ± 0.2V)
24V F70 left side –> GND (allowed deviation ± 2V)
(If no voltage on the left side, check the right side. If voltage
there, fuse is blown; else cable, driver board, or PSU trouble.)
DONE High level = U30 programmed, see Chapter 15.5
DEBUG Startup check, see Chapter 15.5
WAND Use an oscilloscope. OK if there is a pulse train when the wand is
reading a bar code.
0
7!.$
&
2
6
6
'.$
*
$/.%
$%"5'
0/

Intermec EasyCoder PX4i Specifications

General

Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Display	LCD
Product color	Silver
Keyboard layout	Numeric
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	120 mm
Maximum label length	2.7 m
Maximum roll diameter	213 mm
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	275 mm
Weight	12850 g
