Chapter 6 — Label Slack Absorber

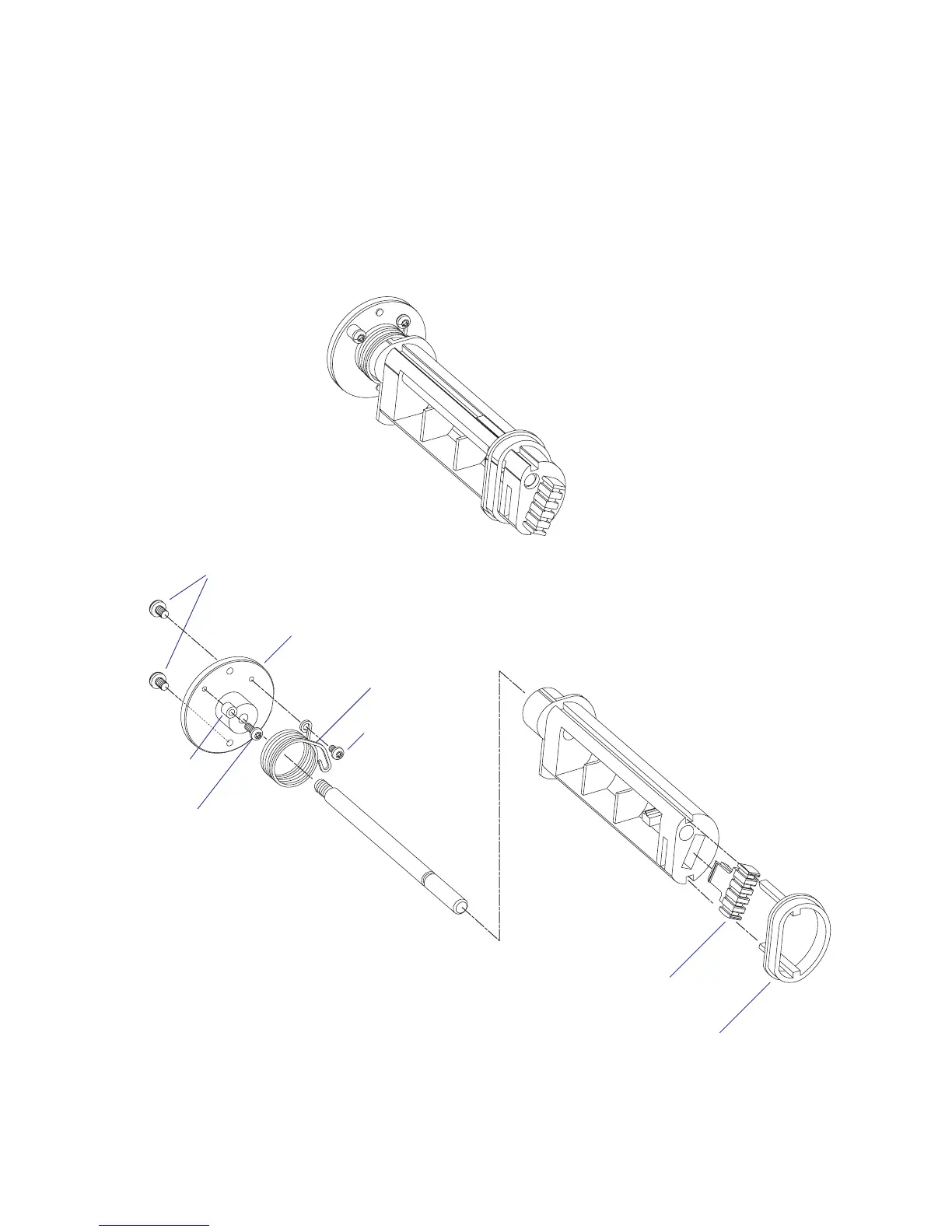

#T20 Torx screws (2x)
Flange
#T10 Torx screw
Torsion spring
Grip (green)
Edge guide
(green)
6.2 Dismantling
The label slack absorber unit is fi tted to the center section using two #T20
Torx screws inserted through the center section from the electronics com-
partment. The shaft should be screwed into the fl ange with a tightening
torque of 5 Nm.
EasyCoder PX4i
#T10 Torx screw
Spacer

Intermec EasyCoder PX4i Specifications

General

Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Display	LCD
Product color	Silver
Keyboard layout	Numeric
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	120 mm
Maximum label length	2.7 m
Maximum roll diameter	213 mm
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	275 mm
Weight	12850 g
