Intermec EasyCoder PX4i Service Manual

4 EasyCoder PX4i and PX6i Service Manual

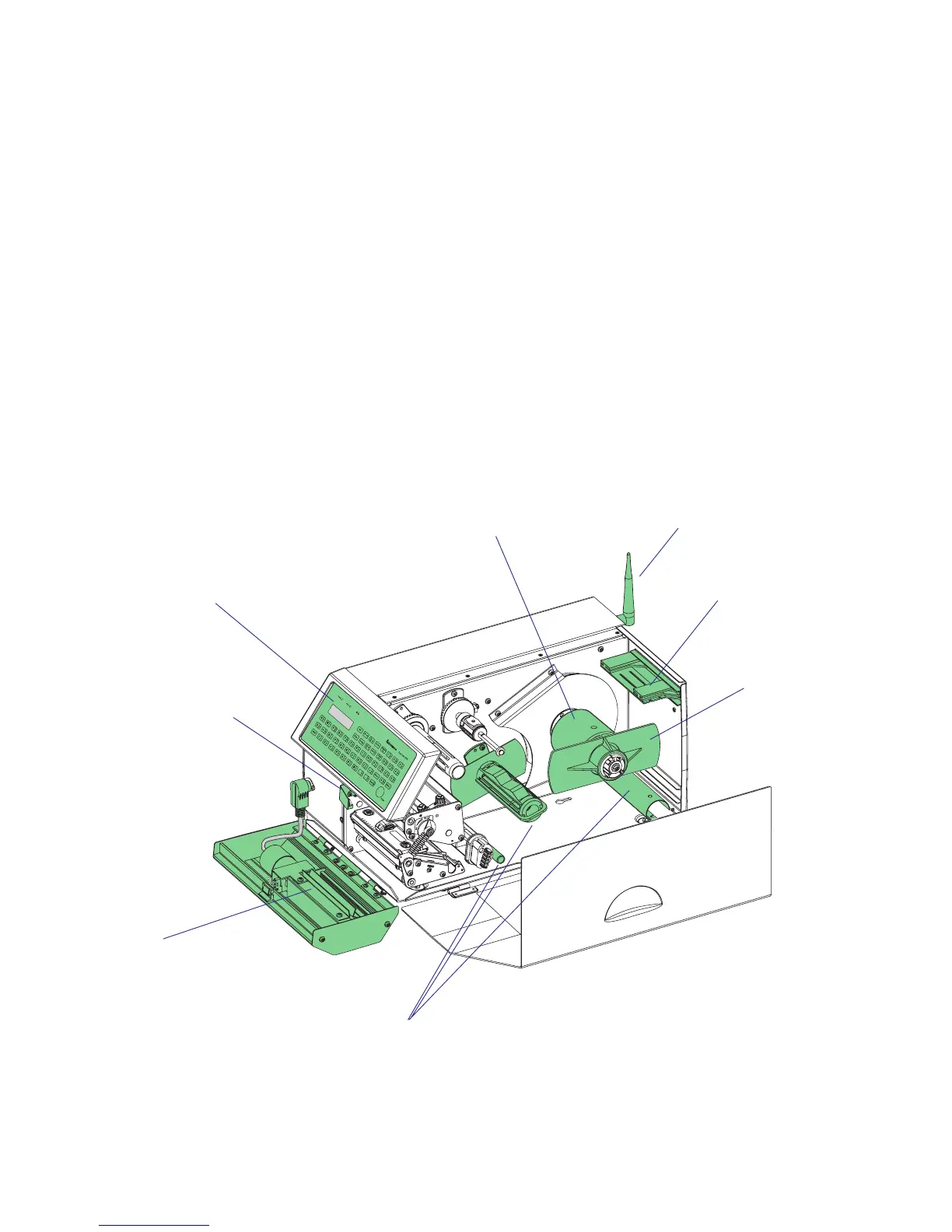

Chapter 1 — Models and Options
Cutter
Liner/batch takeup unit
Fan-fold guide
Media
roll
retainer
3-inch adapter
(included)
Label taken sensor
Alphanumeric
keyboard
(Fingerprint only)
EasyLAN antenna
Options for EasyCoder PX4i
The EasyCoder PX4i can be fi tted with a number of options:
• Label Taken Sensor (see Chapter 10)
• Integral Liner/Batch Takeup Unit (see Chapter 9)
• 3-inch Adapter (for media supply hub) (see Chapter 5)
• Media Roll Retainer (for media supply hub) (see Chapter 5)
• Fan-Fold Guides (see Chapter 5)
• Cutter (see Chapter 11)
• Real Time Clock Circuit (not IPL) (see Chapter 15)
• Alphanumeric keyboard (not IPL) (see Chapter 2)
• One or two interface boards of various types
(only one parallel board with IPL) (see Chapter 16)
• EasyLAN interface (Ethernet or Wireless) (see Chapter 16)

Intermec EasyCoder PX4i Specifications

General

Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Display	LCD
Product color	Silver
Keyboard layout	Numeric
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	120 mm
Maximum label length	2.7 m
Maximum roll diameter	213 mm
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	275 mm
Weight	12850 g
