Intermec EasyCoder PX4i Service Manual

$16#PBSE
*OOFS*OUFSGBDF#PBSE
4QBDFSFYJTUJOH
4DSFXFYJTUJOH
$BCMF
$16#PBSE
*OOFS*OUFSGBDF#PBSE
4QBDFSGSPNLJU
4QBDFSFYJTUJOH
4DSFXFYJTUJOH
0VUFS*OUFSGBDF#PBSE
$BCMF
172 EasyCoder PX4i and PX6i Service Manual
Chapter 16 — Interfaces

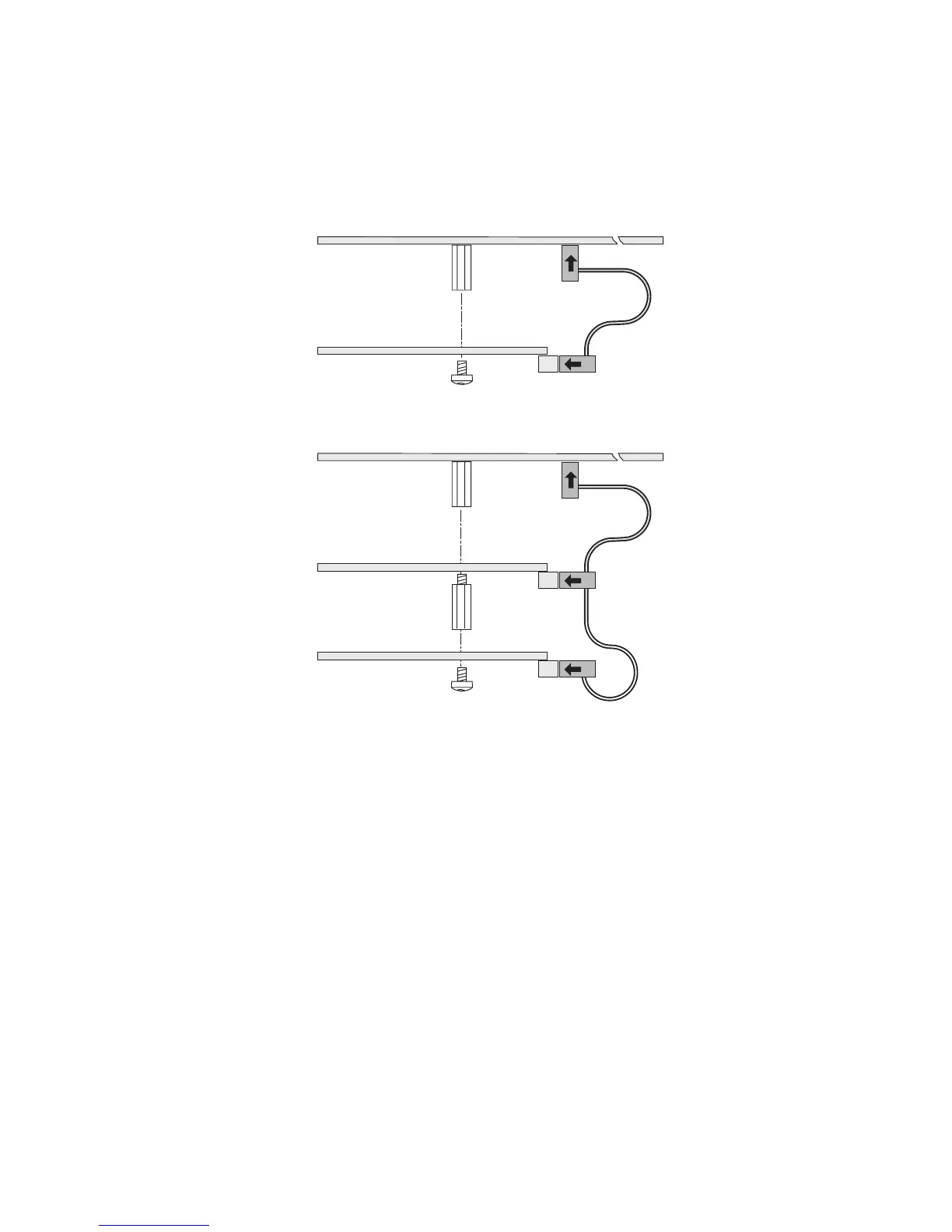

• The kit contains two fl at cables, one with two connectors for use with a
single interface board and one with three connectors for use with double
interface boards. Connect the appropriate fl at cable to connector P1 on
the interface board, as illustrated below.
• The fl at cable should run as illustrated below.
• Put back the cover over the electronics compartment.
• Connect the communication cables to the connectors on the printer’s
rear plate.
• Connect the power cord and switch on the power.
• In case the interface board provides additional serial communication
ports, enter the Setup Mode to set the proper communication param-
eters for these ports.

Intermec EasyCoder PX4i Specifications

General

Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Display	LCD
Product color	Silver
Keyboard layout	Numeric
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	120 mm
Maximum label length	2.7 m
Maximum roll diameter	213 mm
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	275 mm
Weight	12850 g
