Intermec EasyCoder PX4i Service Manual

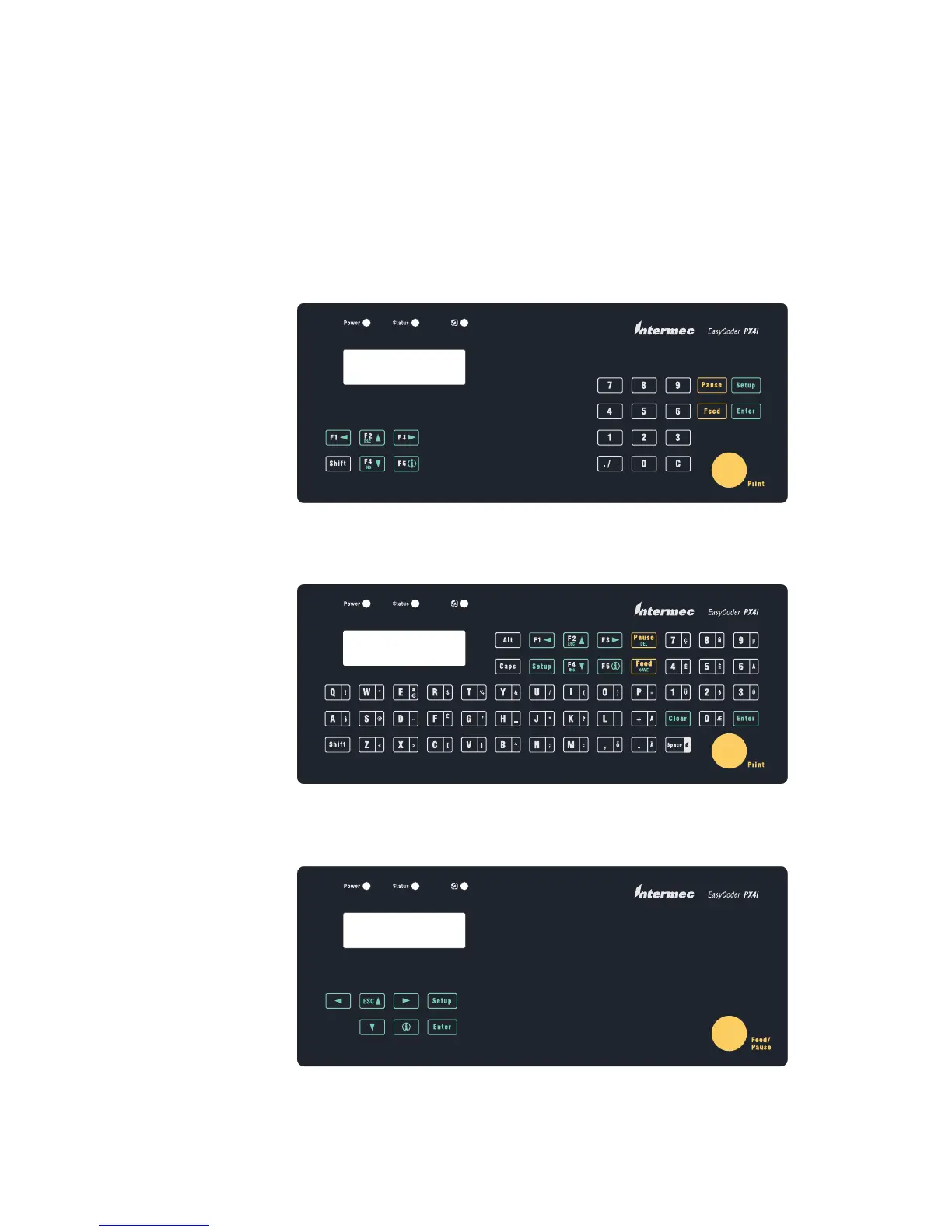

EasyCoder PX4i Fingerprint version
EasyCoder PX4i Fingerprint version, Alphanumeric keyboard (option)
EasyCoder PX4i IPL version
18 EasyCoder PX4i and PX6i Service Manual
Chapter 2 — Front and Keyboard
Keyboard Overlays
The keyboard overlays are self-adhesive with a non-permanent adhesive
to allow easy replacement. Custom-made overlays could also be printed
and used to replace the standard overlays for customized applications or in
areas, where the English text is not acceptable. Pulling away an overlay and
replacing it with another is a simple operation that the customer easily can
perform himself. Use isopropyl alcohol to remove any adhesive residue.
There are three types of overlay for each printer model:

Intermec EasyCoder PX4i Specifications

General

Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Display	LCD
Product color	Silver
Keyboard layout	Numeric
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	120 mm
Maximum label length	2.7 m
Maximum roll diameter	213 mm
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	275 mm
Weight	12850 g
