Intermec EasyCoder PX4i Service Manual

EasyCoder PX4i and PX6i Service Manual 43
Chapter 5 — Media Supply
Installation

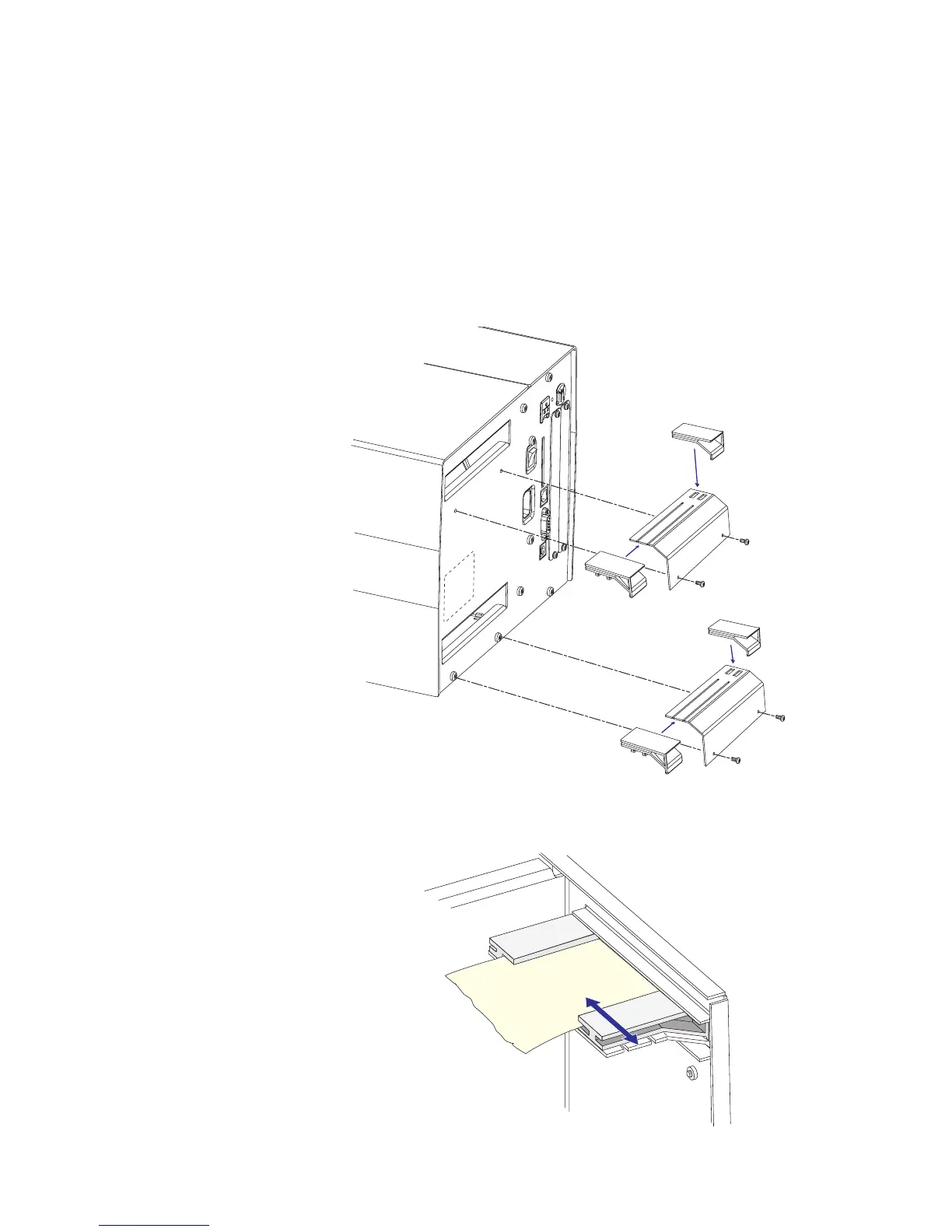

The bracket with the two guides can be fi tted either at the upper or lower
slot in the rear plate, depending on how the media supply is located in
relation to the printer. The principles are the same for EasyCoder PX4i and
EasyCoder PX6i.
Insert the complete unit through the slot from the outside and attach it to
the rear plate using two #T20 Torx screws. In case of the upper position,
use the screws included in the kit, and in case of the lower position, use the
two existing screws that hold the rear plate to the bottom plate.
Adjustment
Adjust the position of the outer guide to fi t the width of the media.

Intermec EasyCoder PX4i Specifications

General

Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Display	LCD
Product color	Silver
Keyboard layout	Numeric
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	120 mm
Maximum label length	2.7 m
Maximum roll diameter	213 mm
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	275 mm
Weight	12850 g
