56 EasyCoder PX4i and PX6i Service Manual
Chapter 7 — Transfer Ribbon Mechanism
Replacement
The ribbon rewind unit is fi tted to the center section using two #T20 Torx
screws inserted from the media compartment. One of the screws runs in a
crescent-shaped slot to allow adjustment or removal of the belt.
• Remove the left-hand cover as described in Chapter 3.3.
• Remove the two #T20 Torx screws and the single washer that hold the
ribbon rewind unit.
• Free the belt from the pulley of the rewind unit.
• Pull out the unit into the media compartment.
• Do not dismantle the ribbon rewind unit.
• Fit the new ribbon rewind unit in reverse order, making sure that the
belt is properly attached to the pulley, but do not tighten the screws.
• Adjust the tension of the belt as described in Chapter 8.5.
• Tighten the screws.

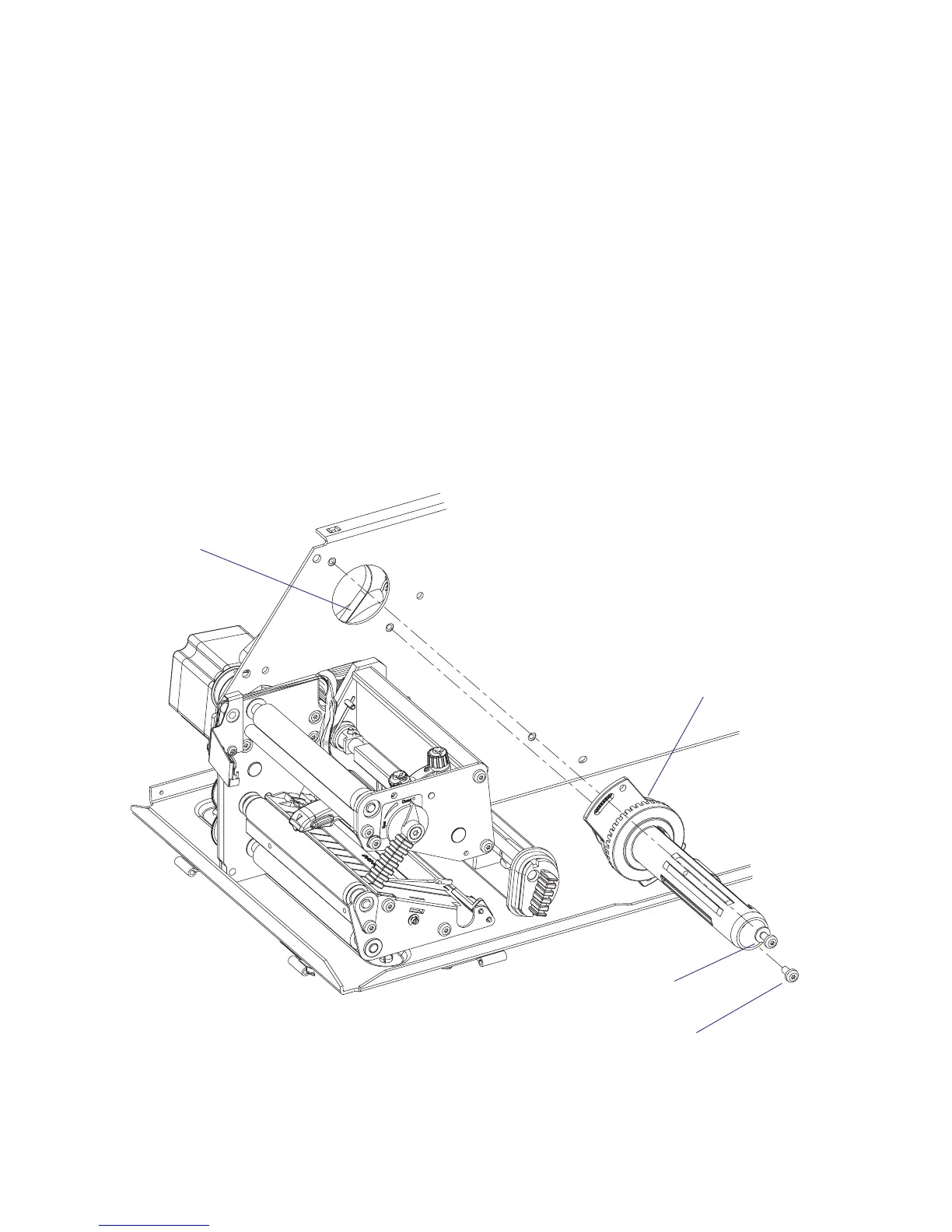

#T20 Torx screw
Washer & #T20 Torx screw
Belt
Pulley (hidden)

Intermec EasyCoder PX4i Specifications

General

Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Display	LCD
Product color	Silver
Keyboard layout	Numeric
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	120 mm
Maximum label length	2.7 m
Maximum roll diameter	213 mm
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	275 mm
Weight	12850 g
