Chapter 8 — Print Unit
EasyCoder PX6i

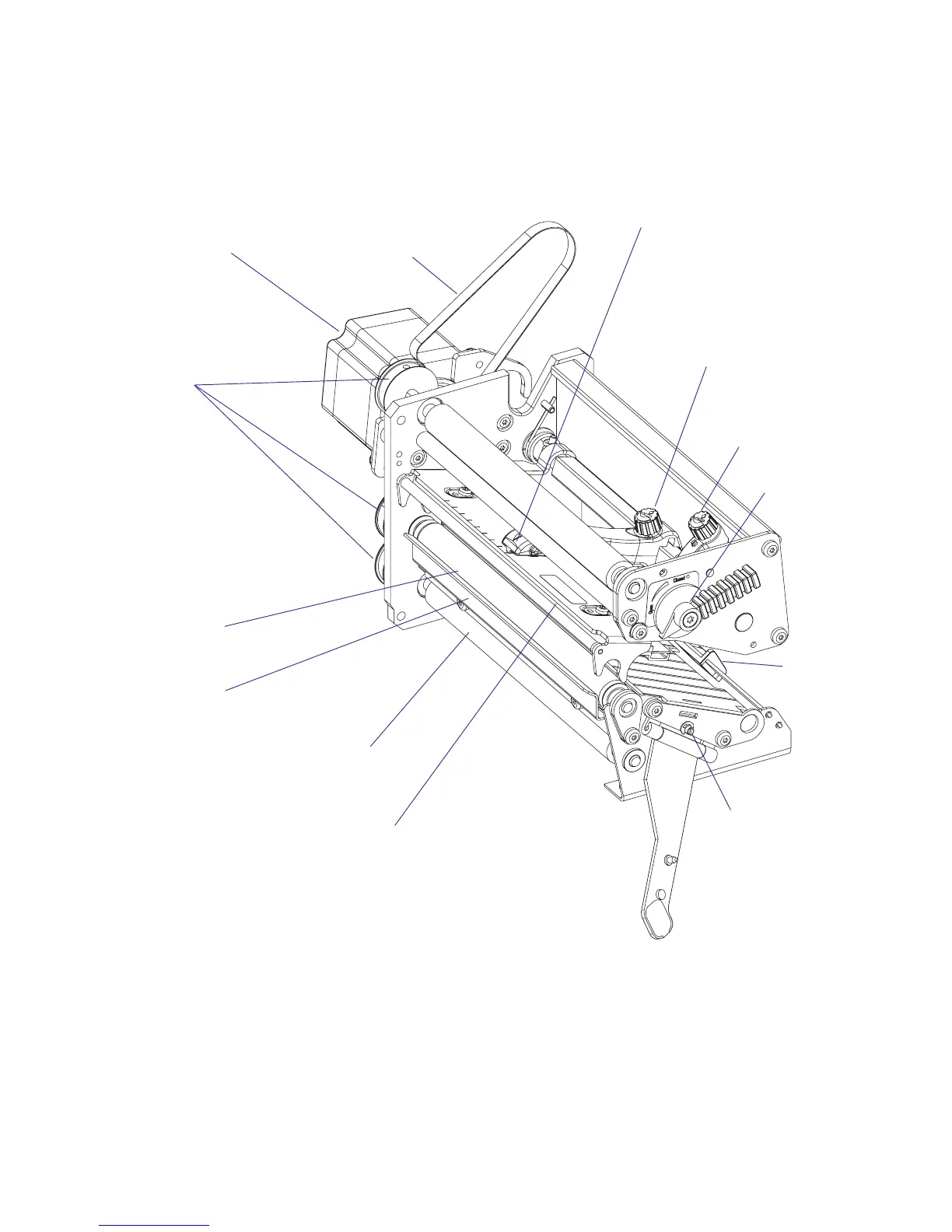

The parts of the EasyCoder PX6i print unit, as seen from the media
compartment side of the center section, are illustrated below. Cables are
excluded.
Printhead with
bracket
Printhead
pressure
adjustment
Pressure arm
Pulleys
LSS adjustment
screw
Stepper motor
Edge
guide
Tear bar
Platen roller
Liner drive roller
Printhead
lift lever
Belt to ribbon
rewind unit
Printhead
position
adjustment
