EasyCoder PX4i and PX6i Service Manual 71
Chapter 8 — Print Unit
#T20 Torx
screws (×2)
Platen roller pulley
Ribbon assist roller pulley
Platen roller belt
Ribbon rewind unit and
ribbon assist roller belt
Idle roller with shaft
(fi tted to center section)

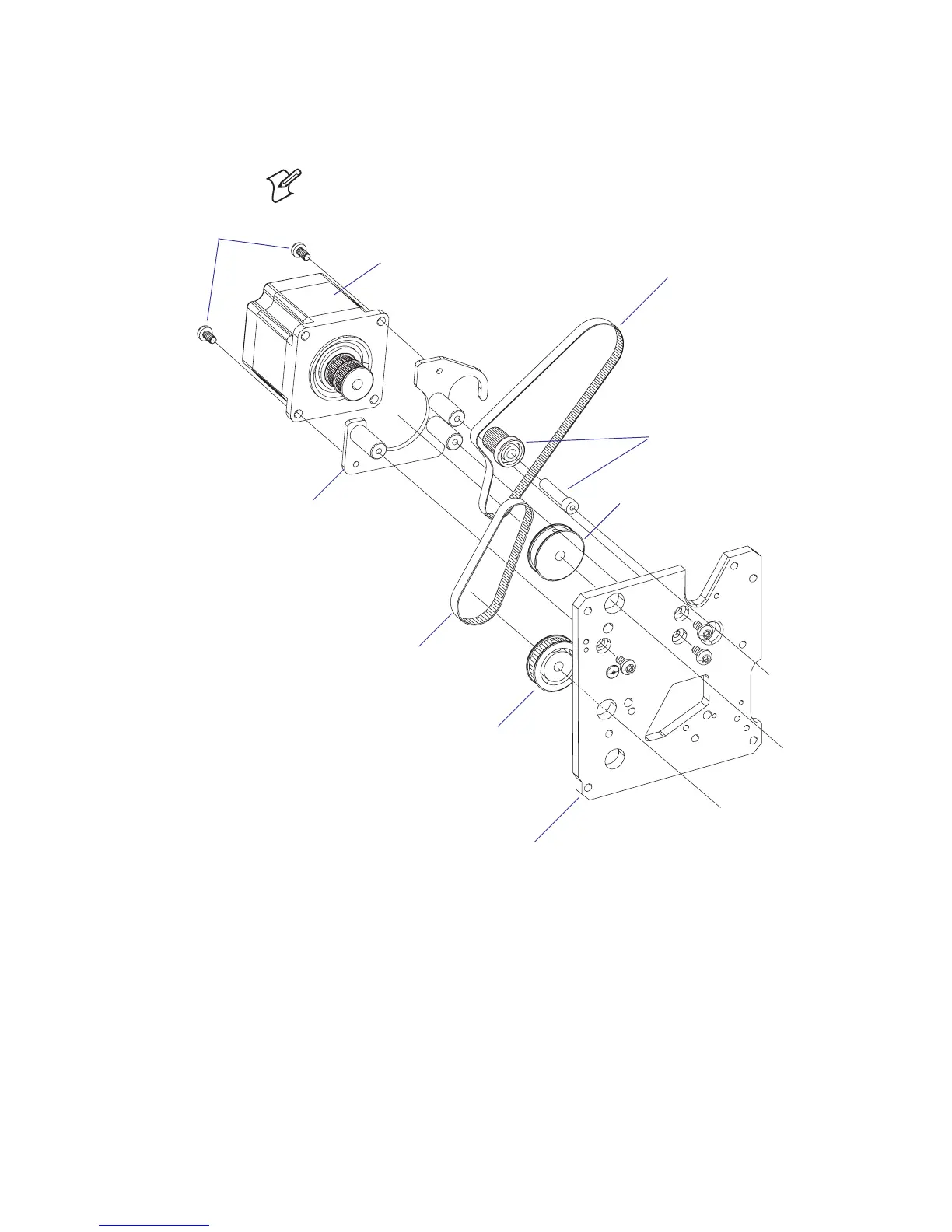

In the illustration below, most parts of the print unit have been omitted to
improve visibility.
Note: The bracket does not need to be removed from the inner print unit
gable when the stepper motor is replaced.
Stepper motor
Bracket
(do not
remove!)
Inner print unit gable

Intermec EasyCoder PX4i Specifications

General

Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Display	LCD
Product color	Silver
Keyboard layout	Numeric
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	120 mm
Maximum label length	2.7 m
Maximum roll diameter	213 mm
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	275 mm
Weight	12850 g
