EasyCoder PX4i and PX6i Service Manual 73

Chapter 8 — Print Unit

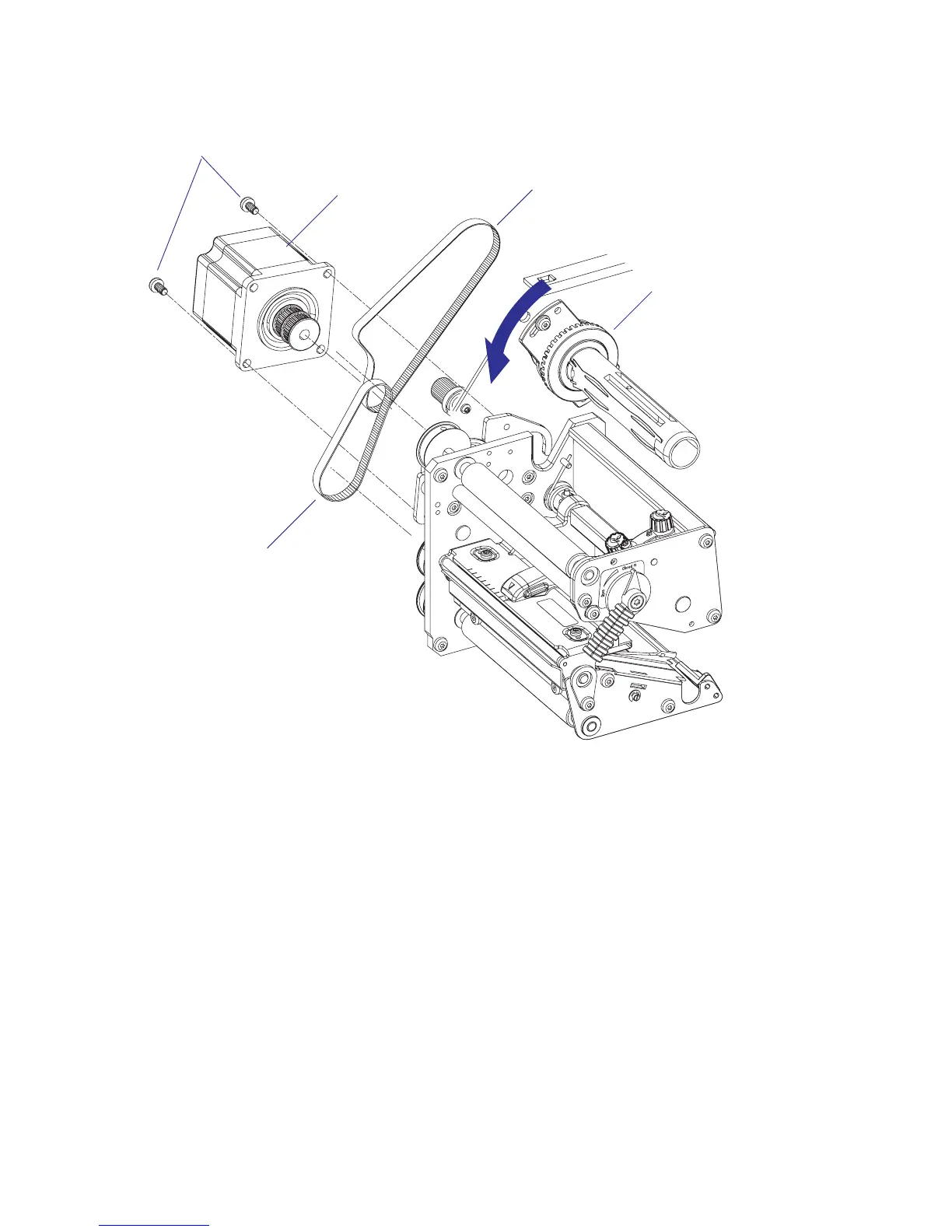

#T20 Torx

screws (×2)

Platen roller belt

Ribbon rewind unit and

ribbon assist roller belt

Stepper motor

Ribbon rewind unit
