82 EasyCoder PX4i and PX6i Service Manual
Chapter 8 — Print Unit
Replacing the Sensors
To remove the LSS bracket from the carriage, for example in connection
with cleaning or replacing a sensor, proceed as follows:
• Switch off the power, remove the power cord and remove the cover over
the electronics compartment.
• Remove the upper and lower plastic guide plates.
• Adjust the LSS to approximately center position.
• Disconnect the cables from J54 and J55 on the CPU board.
• Disengage the snap-lock, using a screwdriver from the media compart-
ment side, and push the outer end of the LSS bracket upward. Then
pull the bracket out from the carriage, taking care not to damage the
cables.
Note! The snap-lock is fragile.
• Remove the two #TX8 Torx screws that hold the defective sensor and
replace it.

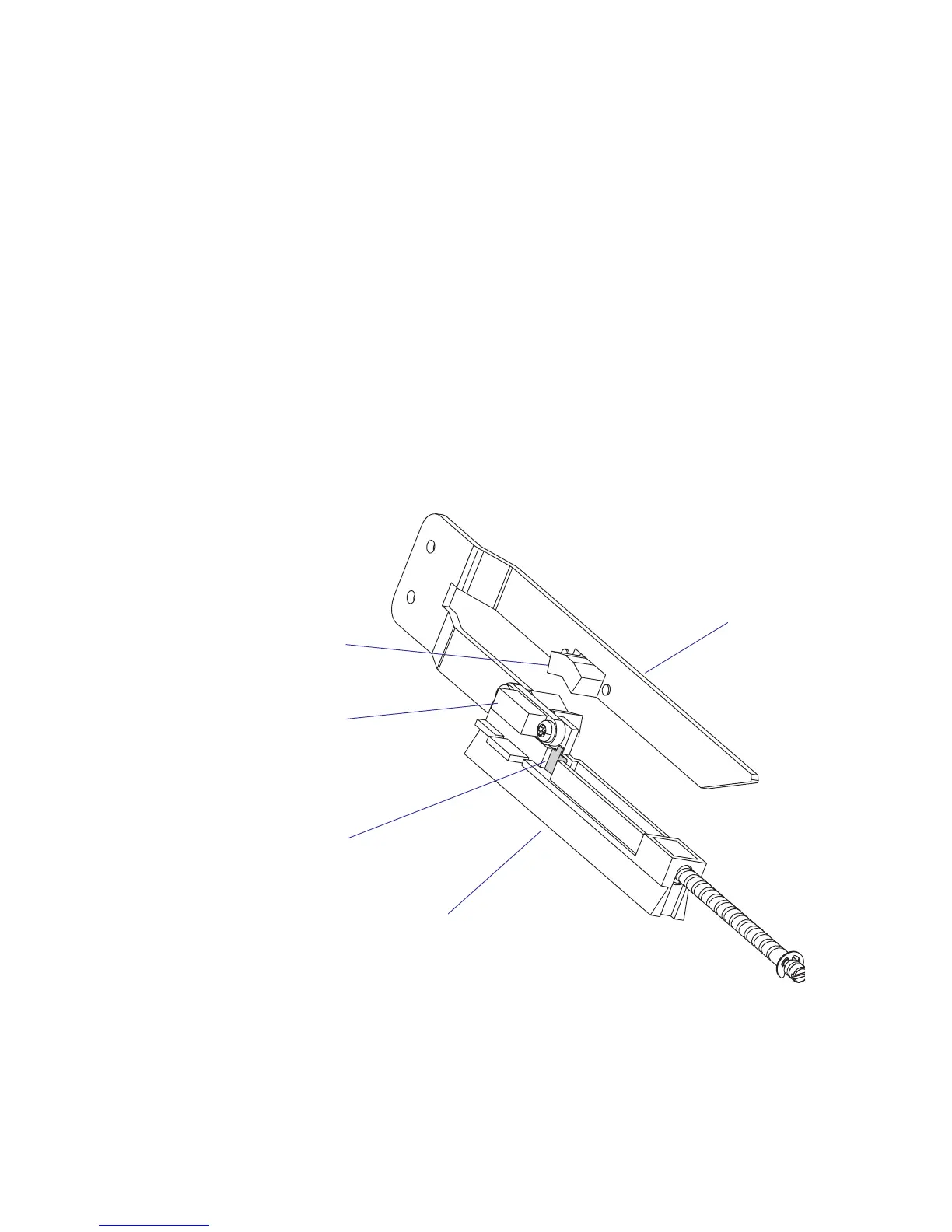

Snap-lock
Upper sensor
Lower sensor
Carriage
LSS bracket

Intermec EasyCoder PX4i Specifications

General

Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Display	LCD
Product color	Silver
Keyboard layout	Numeric
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	120 mm
Maximum label length	2.7 m
Maximum roll diameter	213 mm
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	275 mm
Weight	12850 g
