Chapter 1 — Use the IP30
10 IP30 Handheld RFID Reader User Guide
If you are using the USB version of the IP30, insert the IP30 USB
adapter into the docking connector until it snaps into place.
5 Configure the IP30. For help, see “Configure RFID Settings” on
page 23.
Attach the IP30 to the CN4 Series Mobile Computer
This section explains how to connect the IP30 to the CN4 using a
Bluetooth connection, a USB connection, or a USB connection
connected to the Model AR6 Common Access Card Reader.

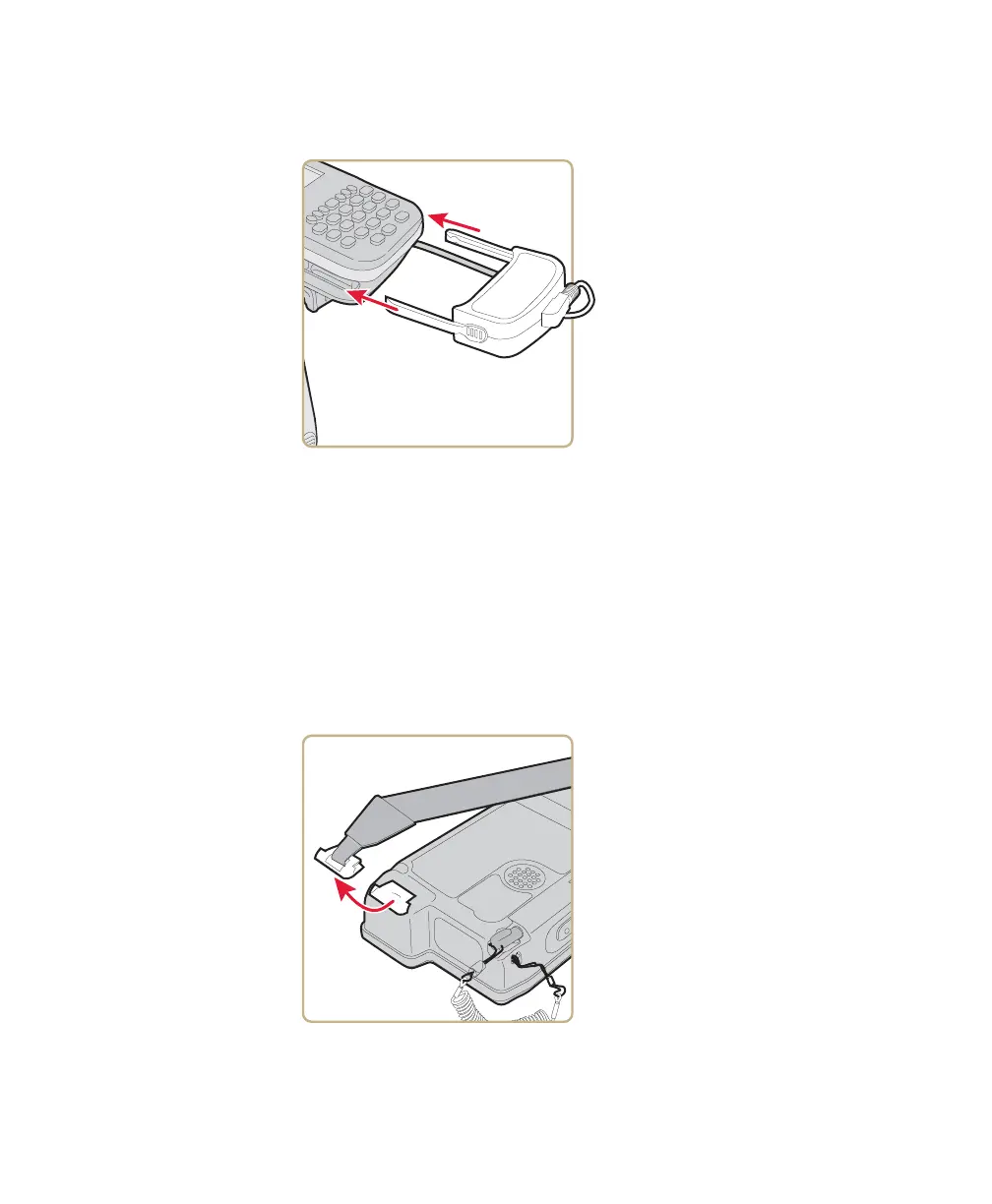

1 Remove the CN4 handstrap and insert the handstrap into the IP30
handle.
