Intermec PB50 Installation Guide

Chapter 1 — Introduction
8 PB50 and PW50 Forklift Power Supply Installation Guide

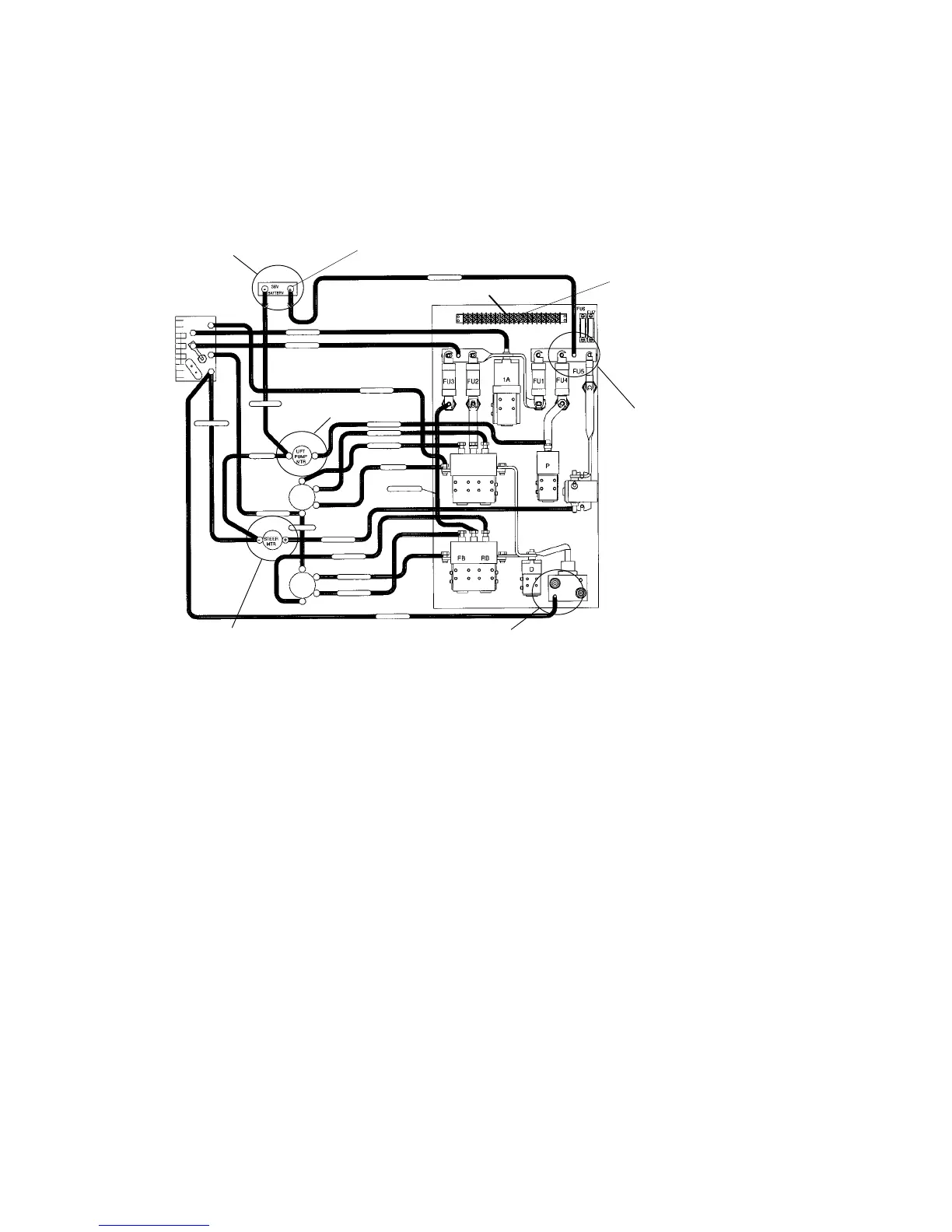

Wiring Diagram
This wiring diagram outlines several possible connections to the
power source in a forklift. Use this illustration as a reference
during the planning phase of your power supply installation.
Power Source Connection Possibilities
Negative - Worst
Regenerative Braking System, very
large voltage spikes
Connector to battery - Best
Power -
Acceptable
Negative- Marginal
Negative - Marginal
Large output spikes
possible on motors
+ To DC/DC converter
Negative- Acceptable
Distribution
panels work
better than
direct connect
to motors

Intermec PB50 Specifications

General

Print Technology	Direct Thermal
Resolution	203 dpi
Print Speed	Up to 4 ips
Media Type	Labels, tags
Connectivity	Bluetooth, USB, Serial
Battery	Lithium-ion
Weight	1.5 lbs
Media Width	50.8 mm (2 in)
Operating Temperature	14°F to 122°F (-10°C to 50°C)
Print Width	4.09 inches
