Chapter 2 — Installing the Forklift Power Supply
PB50 and PW50 Forklift Power Supply Installation Guide 23
Connecting the Output Power Cable
Once the printer, vehicle cradle, or other device is mechanically
installed, you can connect the output power cable between the
power supply output and the device. Connectors are keyed and
operate the same as the input power connectors.
To finish the connection
1 Mate the cable connector to the power supply and to the
device connectors.
2 Slide the cable connector as far as it will go into the power
supply.
3 Turn the cable connector collar clockwise to secure it.
4 After all connections are secure, connect power to the system.

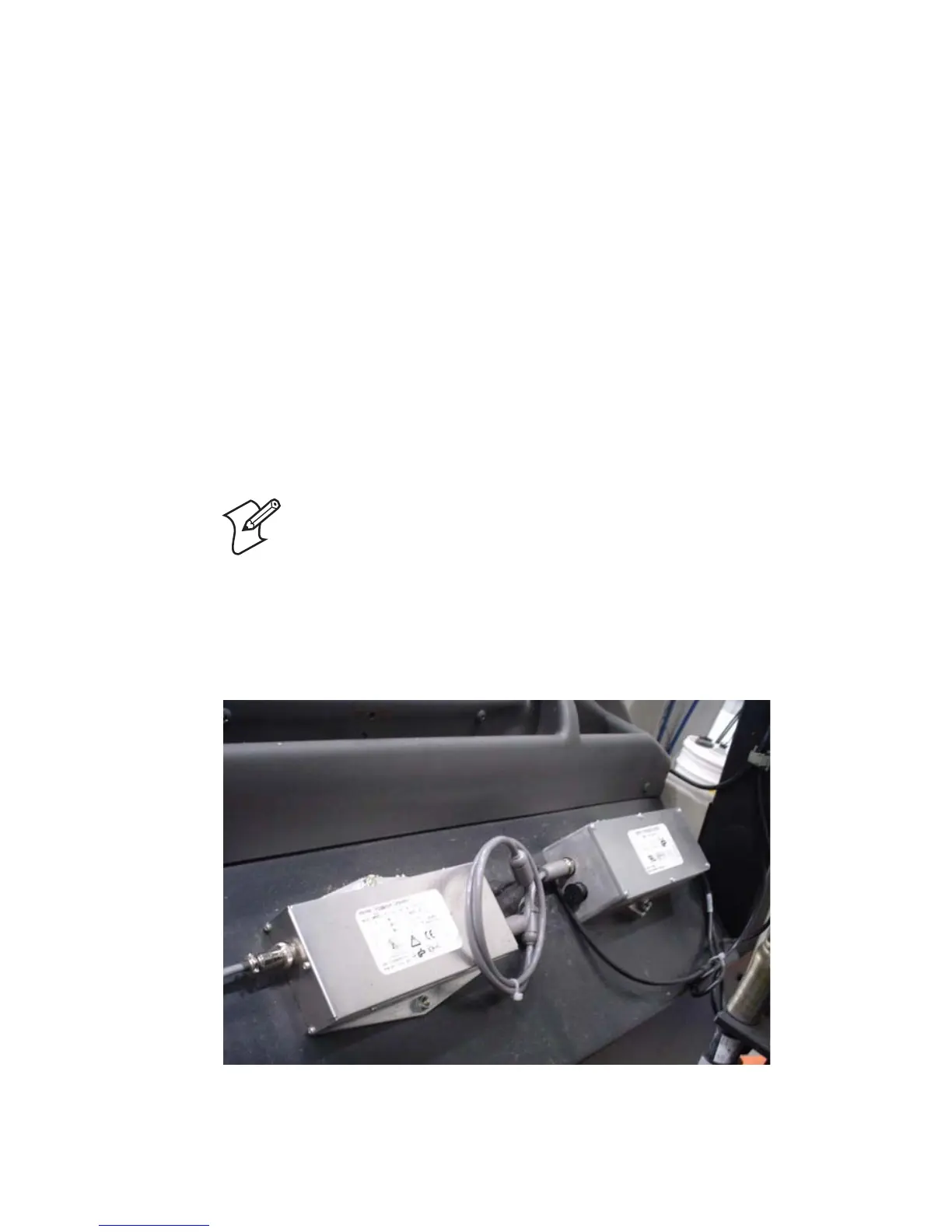

Sample Installations
In this installation example, the power supply is securely attached
with good air flow, easy access, and neatly tied-off cabling.
A
0
Note: See “Troubleshooting Charts” on page 30 for
power fault diagnostic information.
