Chapter 2 — Set Up the Printer
PC23 and PC43 Desktop Printer User Manual 67
• Run the RFID calibration wizard to determine the best Tag
Position and Output Power for RFID media.
• If necessary, modify the Tag Posi
tion (TAGADJUST variable) to
make sure the RFID labels are properly aligned with the antenna.
• Avoid printing on the thickest part of the label when possible.
For help configuring RFID parameters, see the Intermec Fingerprint
Command Reference Manual or the IPL Command Reference
Manual.
About RFID Tag Position
Tag Position, also referred to as TAGADJUST, specifies the distance (in
dots/mm/in) to move the label to align the tag with the RFID antenna.
Positive values move the label forward, and negative values move the
label back.

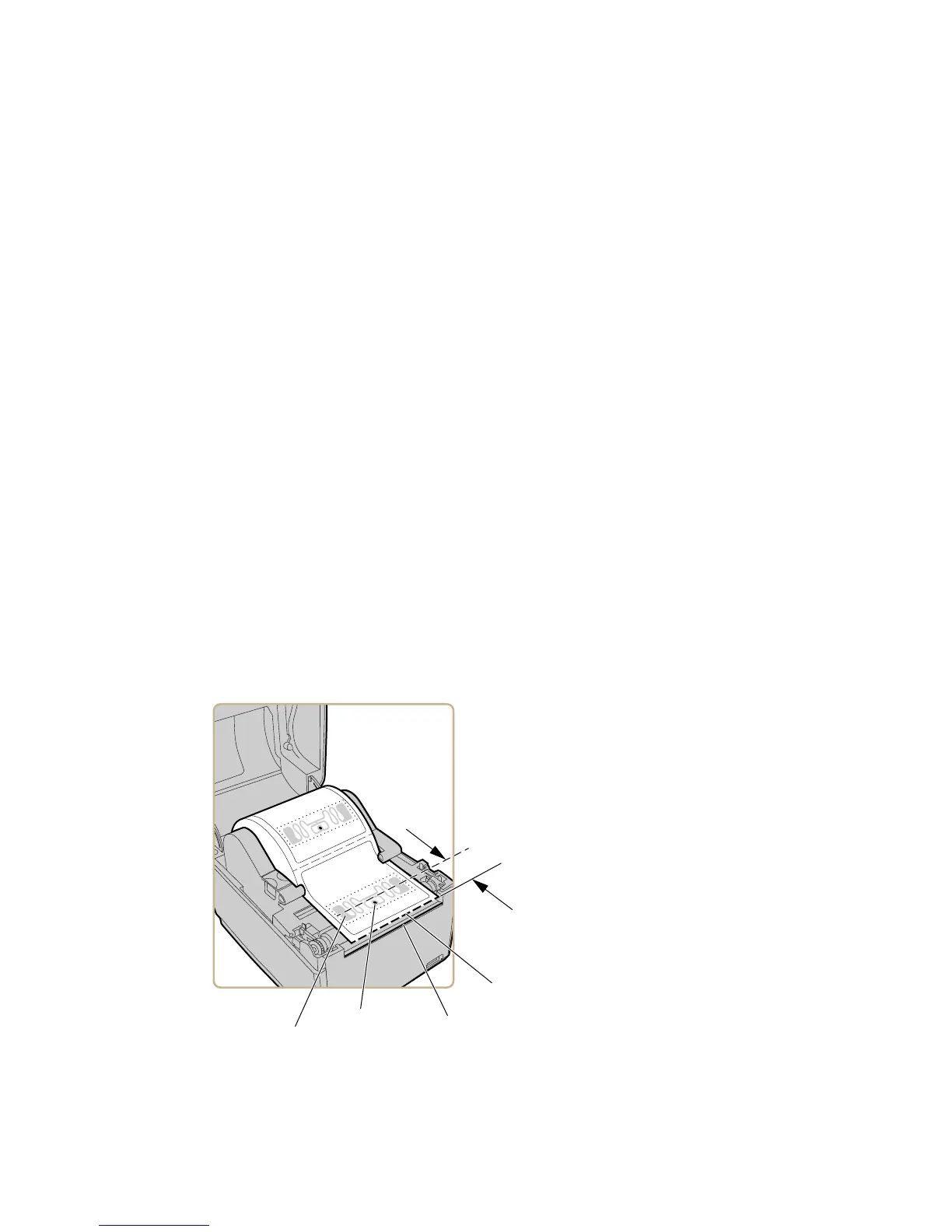

RFID Tag Position
5BHQPTJUJPO
$FOUFS
PGUBH
.FEJBFEHF
5FBSCBS
3'*%DIJQ
3'*%BOUFOOB
To achieve the best possible print quality, follow these guidelines:
