Intermec PF2i - Page 48

Chapter 1 — Using the Printer
34 PF2i and PF4i Mid-Range Printer User’s Manual

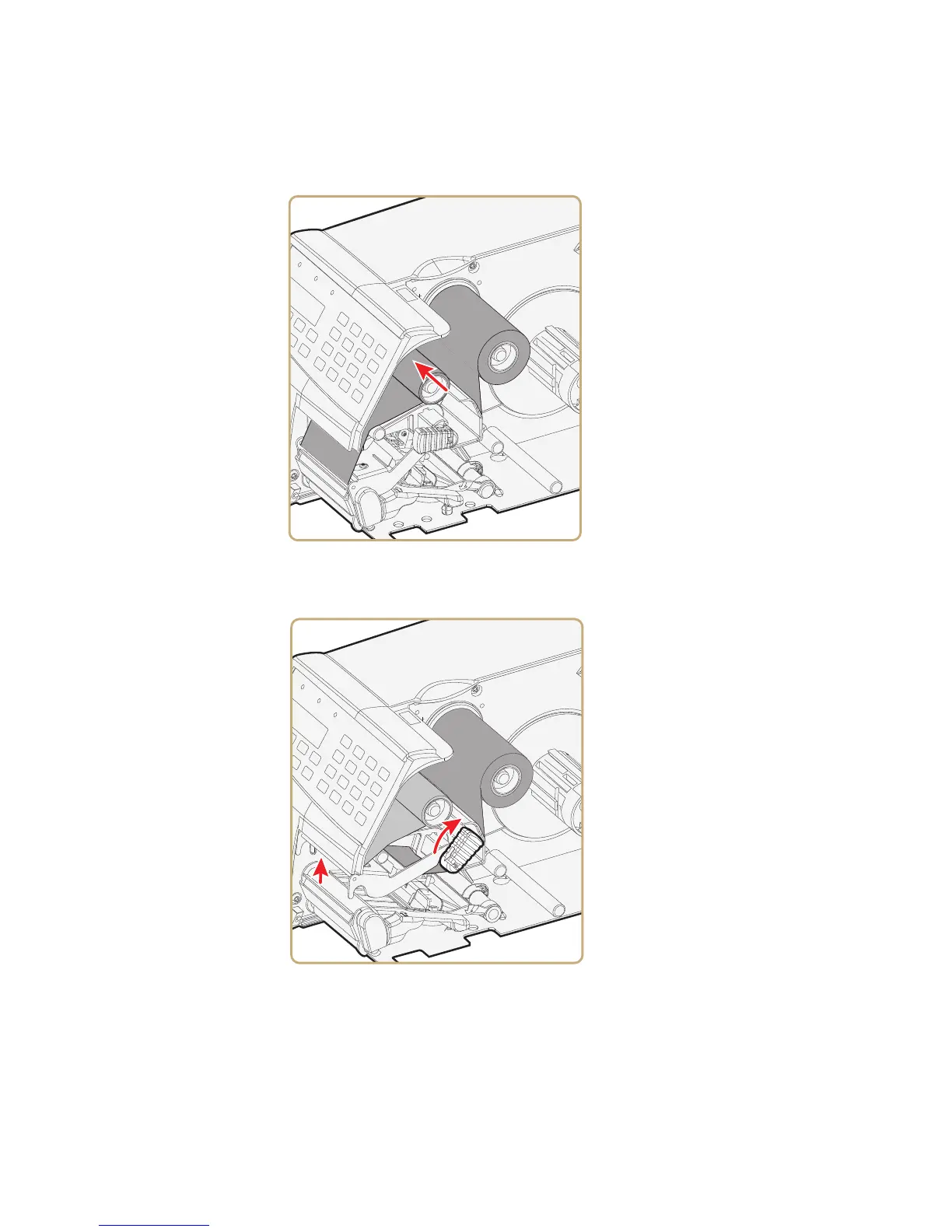

7 Slide the empty cardboard core onto the ribbon rewind hub so the
ribbon is wound up when the hub rotates counterclockwise.
8 Turn the printhead lift lever clockwise to raise the printhead and
release the ribbon.
