Version 0.4 Page | 14

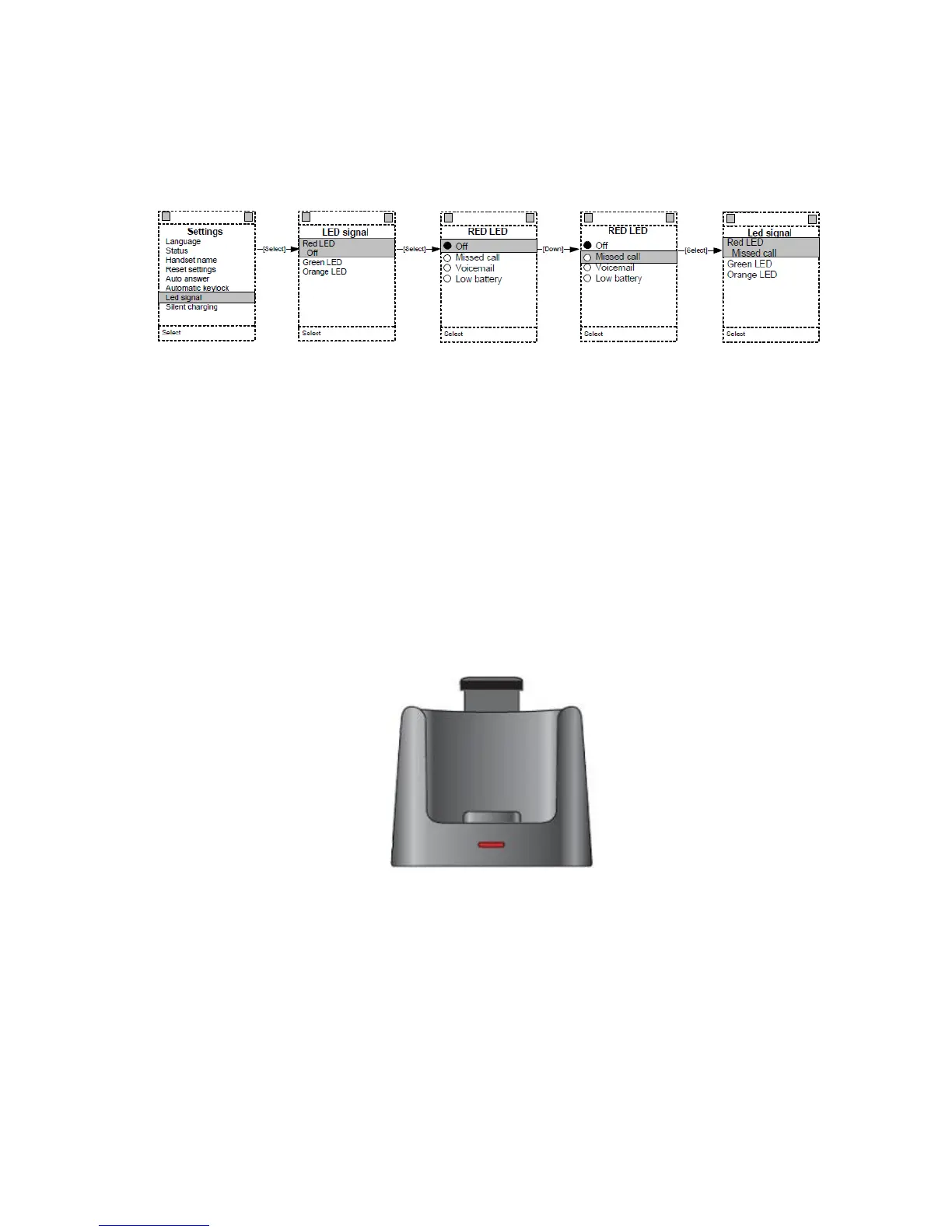

Handset LED
One bi-colour LED (Message light pipe) to provide three colour message indications (RED, GREEN,
YELLOW).
The behaviour of the LED can be configured by the end user as shown below.
Charger LED
Two LEDs (Light pipe)
LED on the front of the charger:
- Handset is connected to the charger: On
- Handset is not in the charger: Off
LED on the top of the charger:
- Reserve battery (standby battery) put in charger: On
- Reserve battery (standby battery) fully charged: Off
