Board Getting Started
Positioning the Pens in the Pen Charging
Station
1 Each Pen snaps into one of the charging slots.
2 Position the Pen so that the Pen Tether Loop is
pointing out, away from the charging slot.
3 The LED Light below each slot turns on when
the Pen is positioned in the slot. The light stays
on while the Pen is charging and turns off when
the Pen is fully charged. Periodically, the Pen
will slowly draw current to maintain a full charge. This is known as trickle
charging and, when the Pen is trickle charging, the light remains off. The
rechargeable Interactive Pen will not over-charge.
Installing the Pen Charging Station
1 Unscrew the Thumb Screws and
position the Pen Charging Station on
the Interwrite Board frame.
2 Tighten the Thumb Screws to lock the
Pen Charging Station into place.
3 Plug the Power Plug into the Power
Connector on the top of the board’s
Controller.
When the Pen Charging Station is plugged into the Interwrite Board, it will
have power as long as the Interwrite Board is powered by the power supply.
The optional Pen Charging Station is designed to attach to the frame of the
Interwrite Board just above the controller housing, so it can plug into the
Power Connector on the top of the controller. It can also be hung on the wall,
using the Wall Mount Hangers shown below.
The Rechargeable Interactive Pen
and Pen Charging Station
When the Pen Charging Station is plugged into either the wall socket or the
Interwrite Board (which must be powered on), snap each of your recharge-
able Interactive Pens into a slot to charge them. It’s a good idea to keep the
Pens in the Charger when they are not being used. It’s the ideal place to store
them, and you don’t have to worry about overcharging them. They will not
charge beyond their capacity.

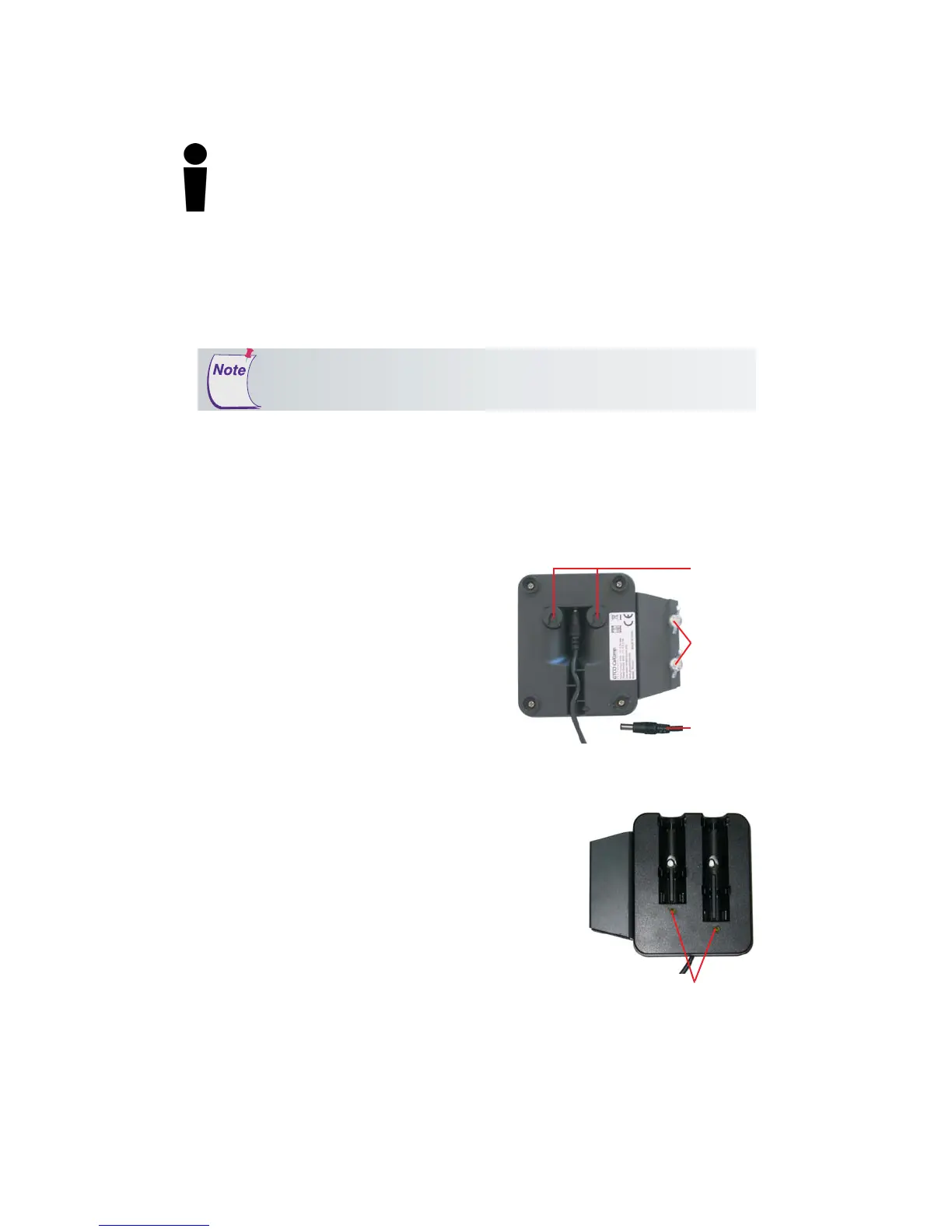

Thumb
Screws
Power
Plug
Wall
Mount
Hangers
Charger LED Lights
Your Pen Charging Station can be ordered with a Power Cord if you
don’t want to connect it to the Interwrite Board and have it powered
by the board’s power supply.
