193
GS
SAVE THESE INSTRUCTIONS
(193GS) MODEL SF90220T SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/03/2016
English
SETUP INSTRUCTIONS (continued)
WARNING
Improper tank valve and clamp assembly could cause the valve and clamp to
blow off and cause serious injury, property damage or death.
Page 10

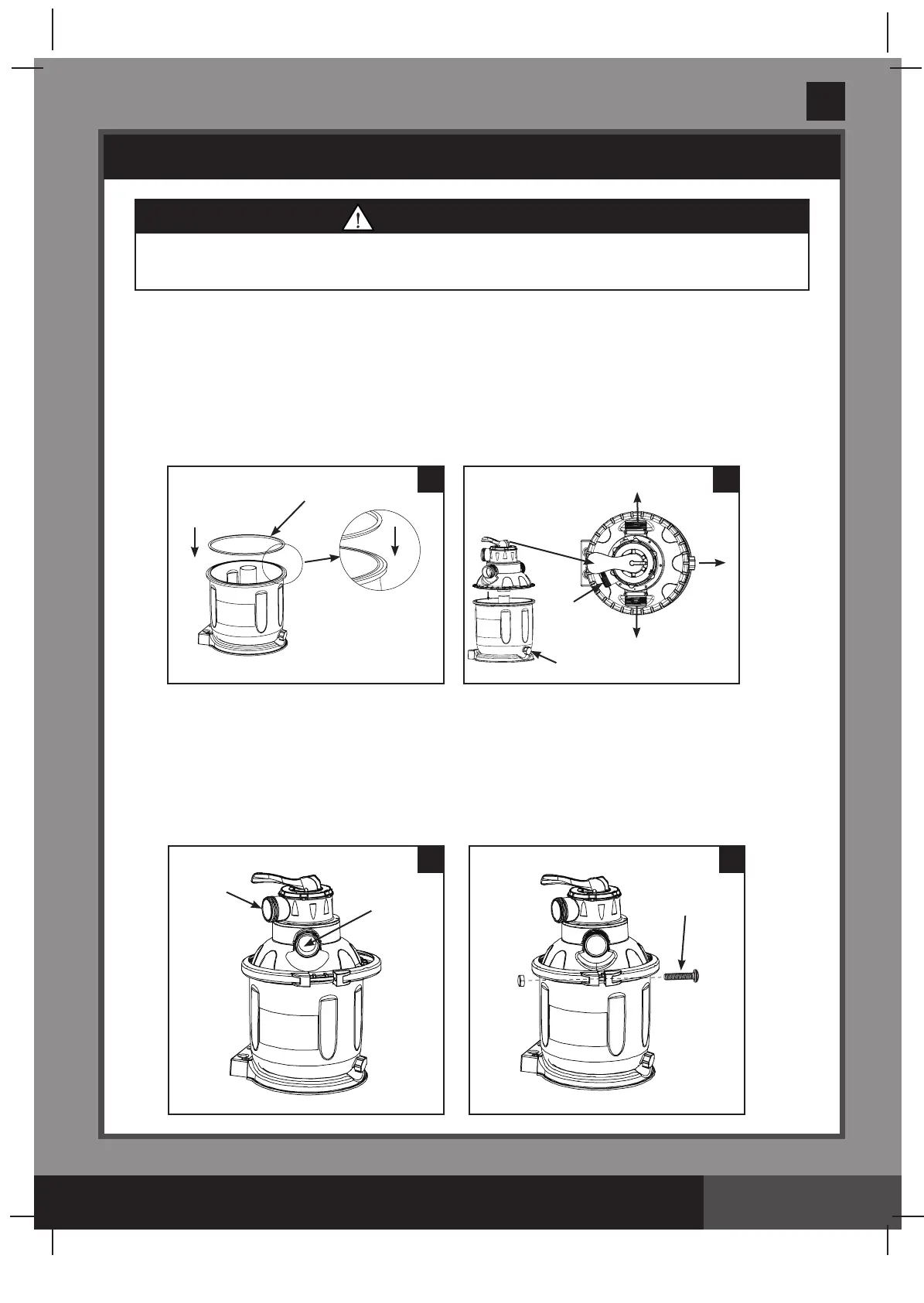

6-way valve installation:
1. Make sure the tank o-ring (5) is in place (see drawing 16). NOTE: Ensure the tank o-ring is
free of sand or debris.
2. Lower the 6-way valve cover over the tank slowly, and ensure the bypass pipe protruding
underneath the 6-way valve cover fits securely into the center pipe (7) top opening (see
drawing 17). Make sure the tank o-ring is securely fitted between the top edge of the tank
groove and the 6-way valve cover edge. IMPORTANT: Ensure the 6-way valve cover ridge
is aligned with the groove on the tank rim.
IMPORTANT: There are three hose connection ports on the 6-way valve, ensure the
outlet connection (from filter to the pool) on the valve is facing towards the pool (see
drawing 18).
3. Remove the screw, and install the clamp around the tank and 6-way valve flanges, then
replace the screw and use a phillips screwdriver (not included) to tighten it (see
drawings 18 & 19).
19
17
18
WATER
OUTLET
WATER
INLET
16
5
17
WATER
INLET
WATER
OUTLET
TO
DRAIN
DRAIN
VALVE
CAP
DRAIN VALVE CAP
