OPERATING INSTRUCTIONS (continued)
5. Switch off the pump, change the 6-way valve to “RINSE” position (see drawing 25).
6. Switch on the pump and run the pump for about one minute to level out the sand bed after
backwashing the sand media.
7. Switch off the pump, change the 6-way valve to “FILTER” position (see drawing 23).
8. Switch on the pump. The system is now operating in the normal filtering mode. Run the pump
until the desired pool water clearance is obtained and no more than 12 hours per day.
9. Record the initial pressure gauge reading when the filter media is clean.
NOTE: During initial setup of the system, it may be necessary to backwash frequently due to
unusual heavy dirt present in the water and sand. After that, as the filter removes dirt and
impurities from the pool water, the accumulated dirt in the sand media will cause the
pressure to rise and the flow to diminish. If there is no vacuuming device attached to the
system and the pressure gauge reading is in the yellow zone it is time to backwash the sand
media, see “BACKWASH” under “initial startup and operation” section.
Vacuuming device (i.e. Intex auto pool cleaner) attached to the system may also cause the
flow to diminish and the pressure to rise. Remove any vacuuming device from the system and
check if the pressure gauge reading has dropped from the yellow zone to the green zone.
10. Monitor the pressure gauge reading, and check that the inlet and outlet openings are not
obstructed on a weekly basis. If the pressure gauge indicates yellow it is time to backwash
the filter media.
IMPORTANT
The filter pump running time should be 1 hour longer than the required operating time
of the Saltwater System.
Operating the system under “TIMER” mode or manually:
To operate the sand filter pump in “FILTER” mode under “TIMER” control:
A. Set the timer dial to the desired operating hours. See operation time table (see
drawing 32).
B. Turn on the pump by pressing the switch to “ ” position, the sand filter pump is now
filtering the water and will stop after the operating hours are completed. The built-in timer
will now operate for the number of hours selected at the same time each day.
C. Operating hours can be re-adjusted if necessary. Follow step A – B.
To operate the sand filter pump manually (without the “TIMER” mode):
A. Turn on the pump by pressing the switch to “-” position, the sand filter pump is now
filtering the water.
B. To turn off the pump, press the switch to “O” position.

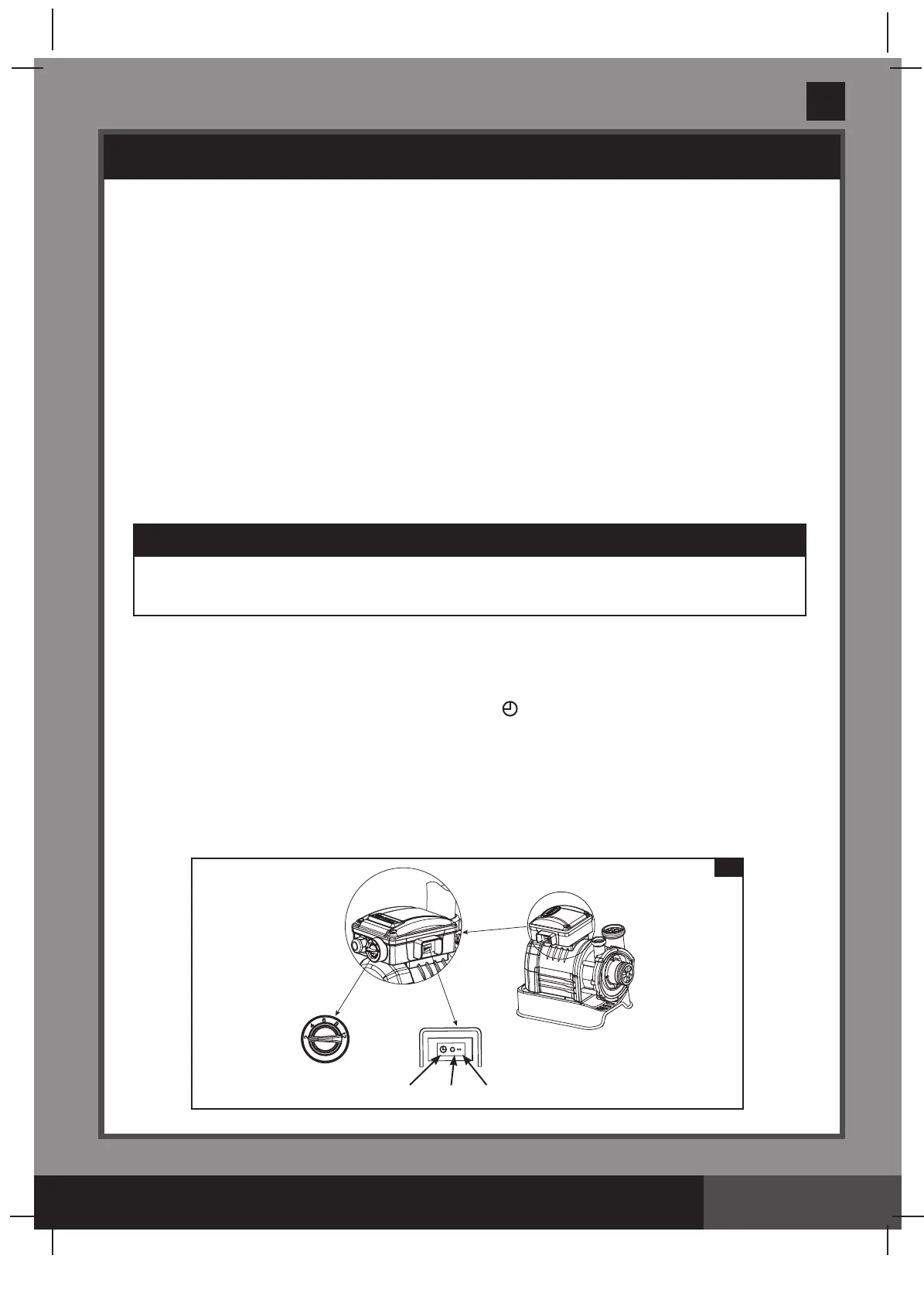

32
TIMER OFF ON
TIMER DIAL
(HOURS)
