SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS
SETUP INSTRUCTIONS (continued)
Connecting the system to pump and pool with 1-1/2” (38mm)
connections/hoses:
Pump and pool with 1-1/2” (38mm) connections do not require the adaptors
A (1) or B (9). Install as follows:

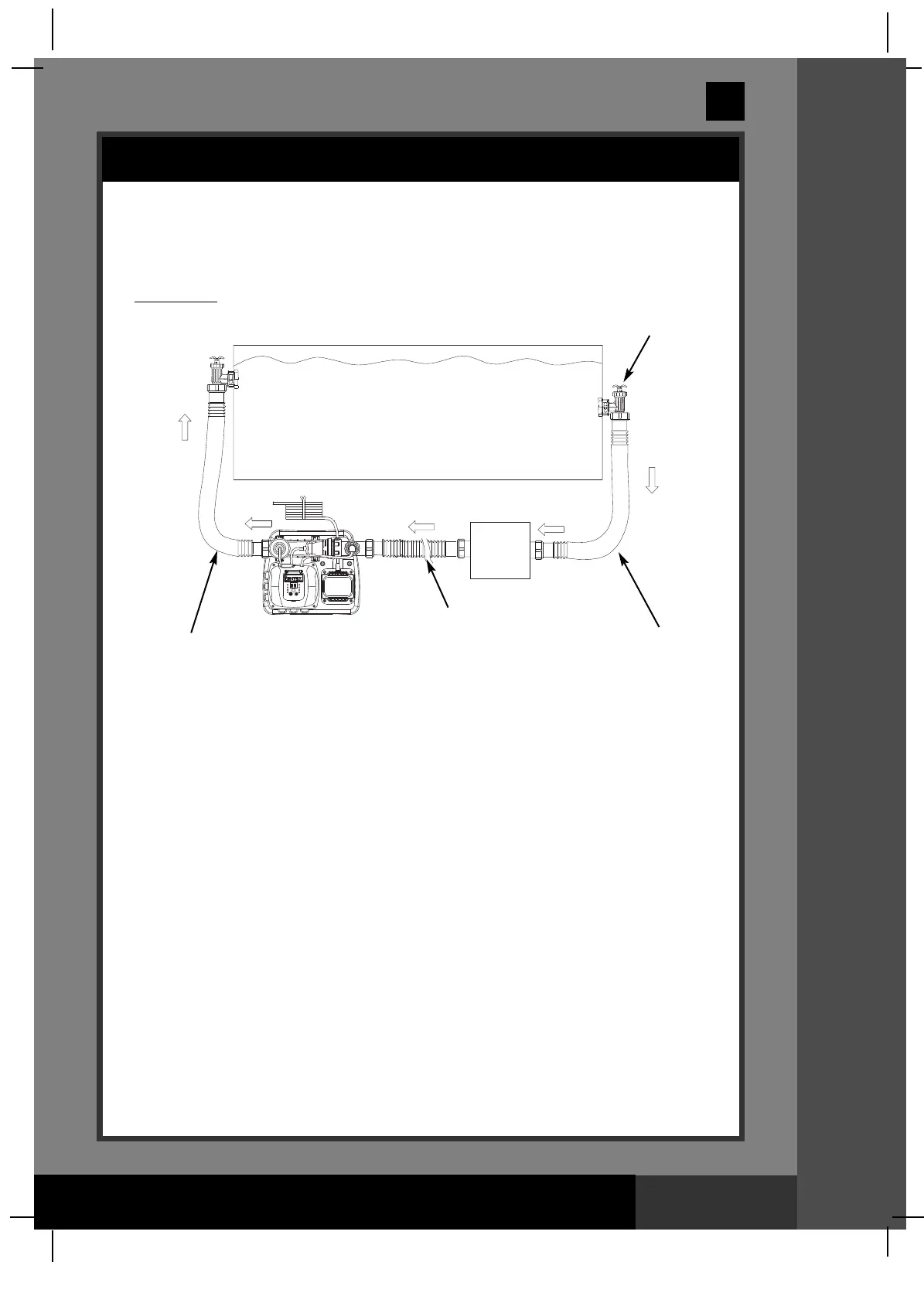

Drawing #2
1. Go directly to step 2 if your pool is empty. If your above-ground-pool is filled
with water, close the plunger valves before installing the Saltwater System.
2. Disconnect the water return hose from the filter pump connection and connect
it to the Saltwater System outlet.
3. Connect the connector hose (8) to the filter pump outlet connection.
4. Open the plunger valves to allow the water to flow.
8
FILTER
PUMP
ID 1-1/2” (38mm)
HOSE
ID 1-1/2” (38mm)
HOSE
SALTWATER
SYSTEM
SWIMMING POOL
WATER TO
POOL
P
LUNGER
VALVE
WATER FROM
POOL
