SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS
SETUP INSTRUCTIONS (continued)
English
Connecting the system to other types of pump (with different type of
thread or no thread):
The Saltwater System can also be adapted to other filter pumps with different
thread or those without a thread on the connection.

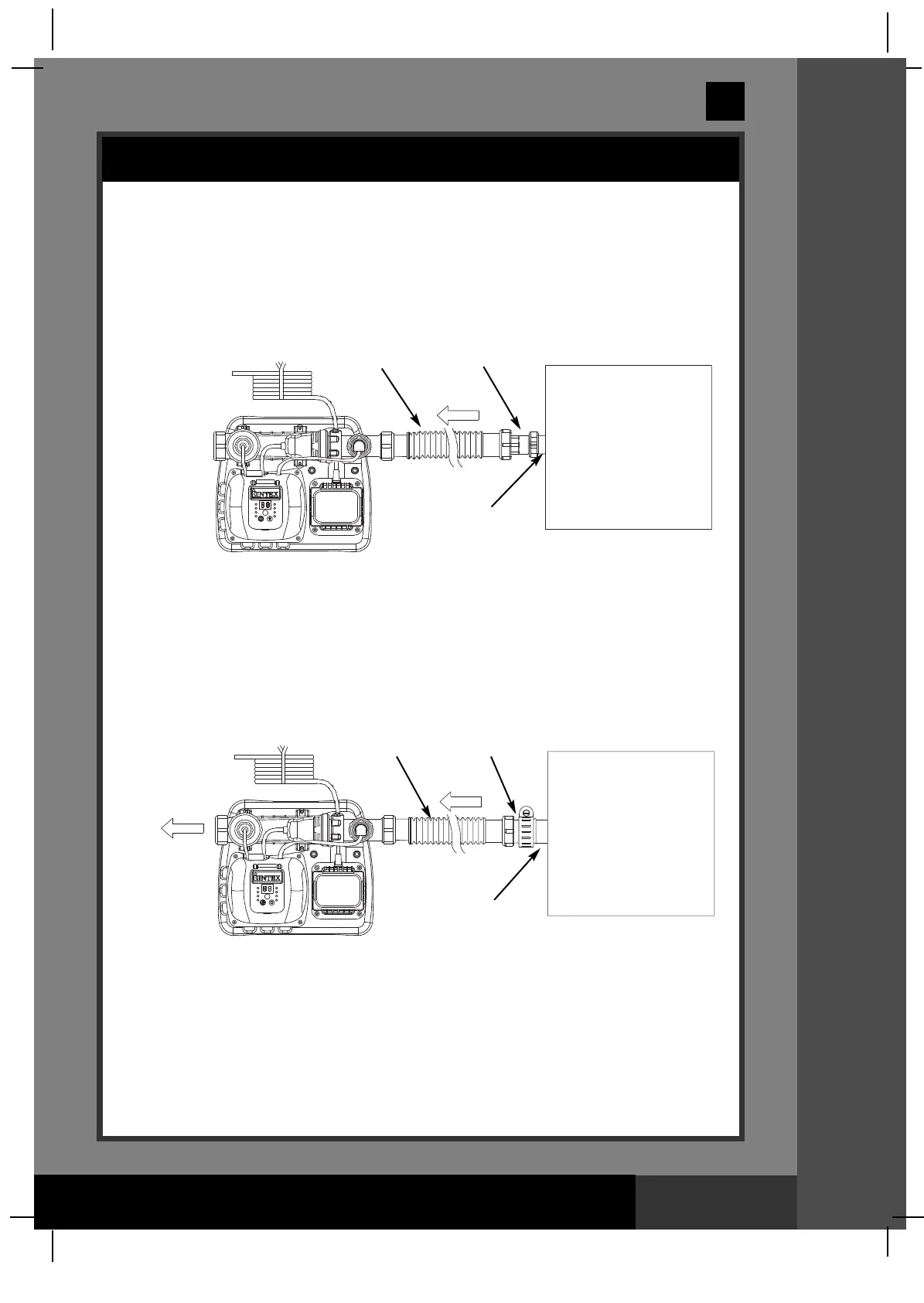

Connection to 1-1/4” (32mm) hose:
1. Connect one end of adaptor B (9) to the connector hose (8). Tighten securely.
2. Now, connect the other end of adaptor B (9) to the filter pump outlet. Tighten
securely.
Connection to 1-1/2” (38mm) hose with clamp:
1. Connect the connector hose (8) to the filter pump outlet connection with a large
hose clamp. Tighten securely.
8
9
ID 1-1/4” (32mm)
CONNECTION
SALTWATER SYSTEM
FILTER PUMP
8
LARGE HOSE
CLAMP
FILTER PUMP
ID 1-1/2” (38mm)
CONNECTION
SALTWATER SYSTEM
To Next Page
