Intex EASY SET POOL - Parts Reference

SAVE THESE INSTRUCTIONS
Page 4
(257IO) MODEL FP602 FILTER PUMP ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 05/20/2024
257
A
English
PARTS REFERENCE
Before assembling your product, please take a few minutes to check the
contents and become familiar with all the parts.
NOTE:
Drawingsforillustrationpurposeonly.Maynotreectactualproduct.Nottoscale.
Whenorderingparts,besuretoquotethemodelnumberandpartnumbers.Notoolsarerequiredfortheassembly.

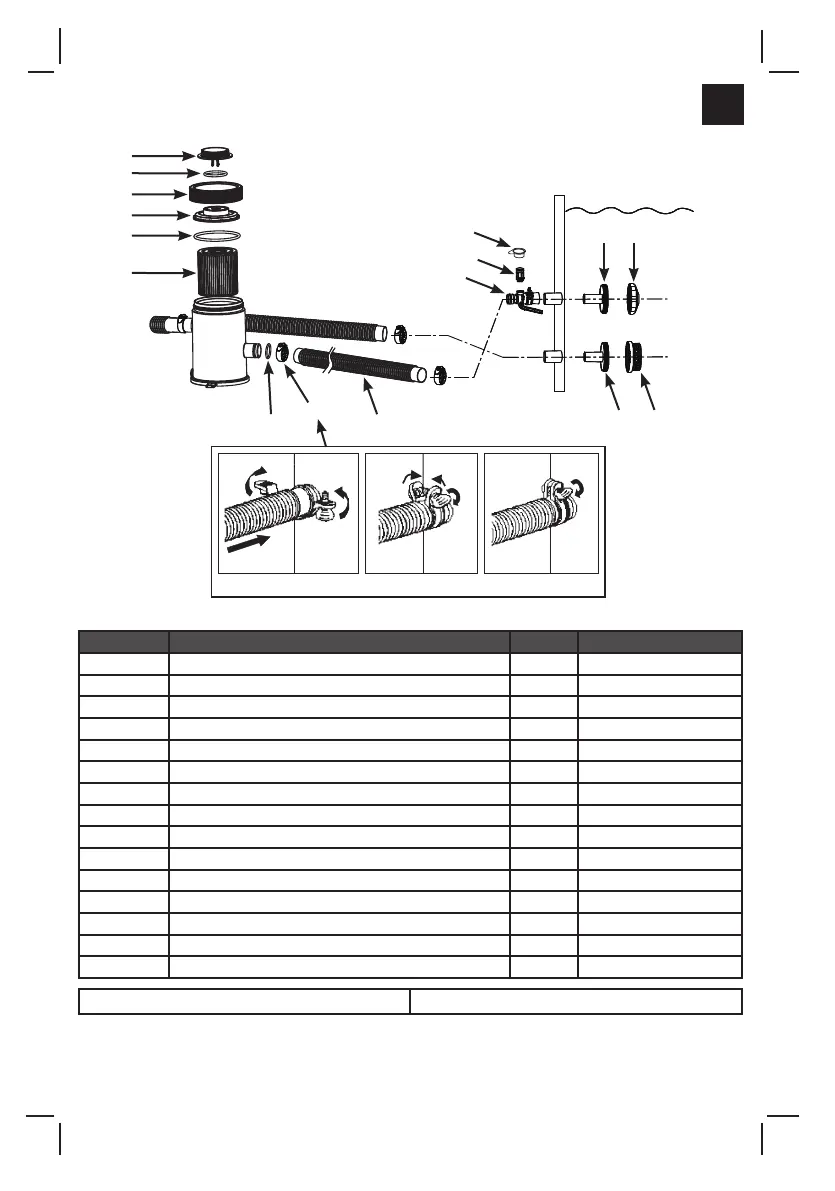

REF. NO. DESCRIPTION QTY. SPARE PART NO.
1 AIR RELEASE VALVE 1 13405
2 VALVEO-RING 1 13406
3 FILTERHOUSINGCOVER 1 13407
4 COVER SEAL 1 13409
5 FILTER CARTRIDGE 1 29007
6 HOSE SEAL 2 10134
7 HOSE CLAMP 4 11489
8 HOSE 2 10399
9 STRAINERCONNECTOR 2 11070
10 POOLINLETJETNOZZLE 1 13162
11 STRAINERGRID 1 12197
12 THREADEDFILTERHOUSINGCOLLAR 1 13408
13 AIRJETVALVECAP 1 12373
14 AIRJETVALVE 1 12363
15 POOLINLETAIRADAPTOR 1 12366
1
2
12
3
4
5
9 10
11
9
14
15
8
7
6
A B C
13
Typeofltermedium Synthetic cartridge #29007
